EN
1205. 6755517_02
6
ANL are identified by the following:
PACKAGING LABEL: that includes the pro-

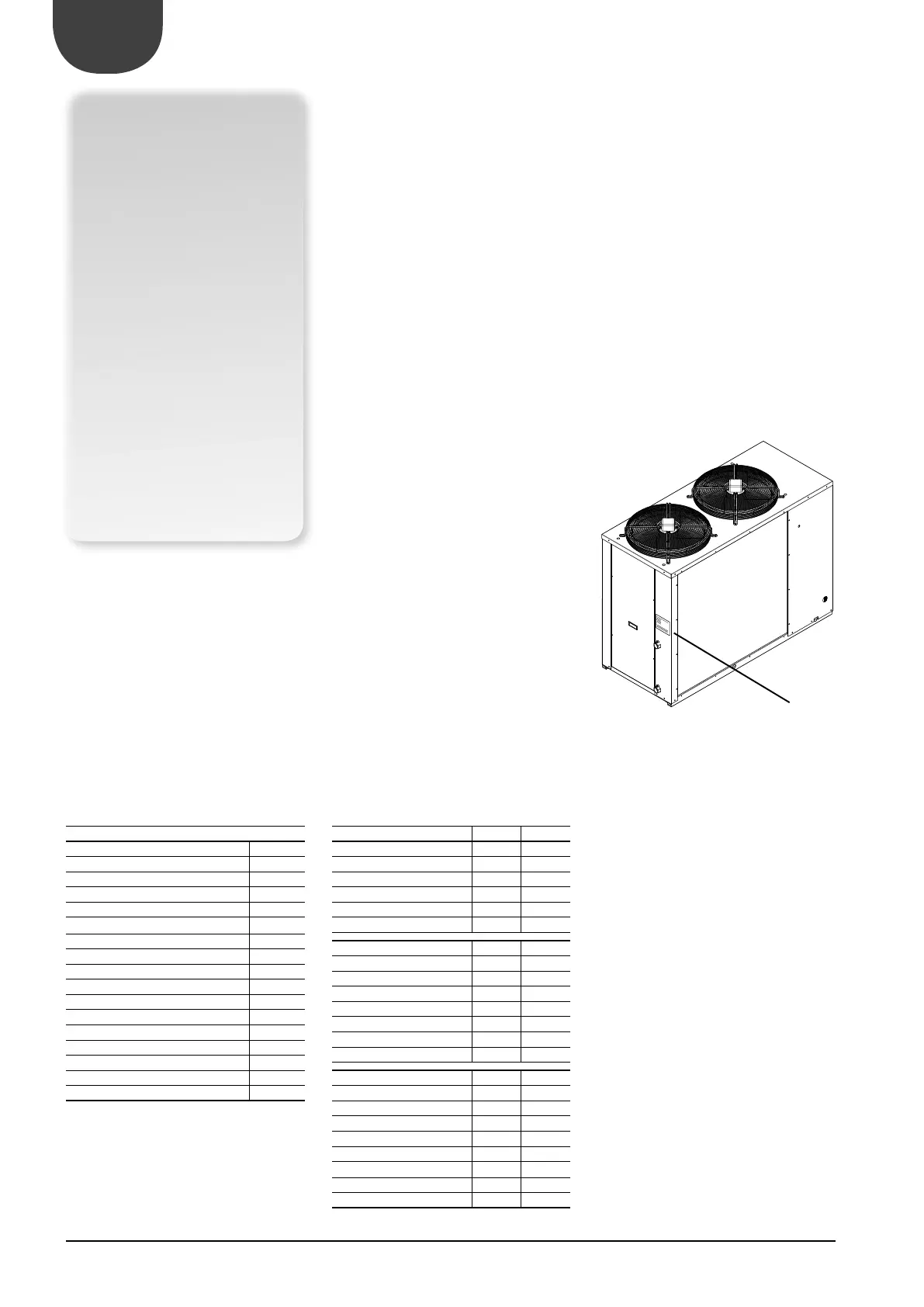

TECHNICAL PLATE: placed on the right strut
NOTE:
If the idencaon plate, or any other means
to idenfy the product, is tampered with, re-
moved or missing, installaon and maintenan-
ce operaons are hampered.
-
PROTECTION RATING
1. IP 24
1. ISO DIS 9614/2
2.
3. SOUND PRESSURE
-
UL 1995
Heating and cooling equipment.
ANSI/NFPA
CSA C.22.1.- C.22.2
Safety Standard Electrical Installation.
1. DESCRIPTION AND CHOCE OF UNIT
3.
2. PRODUCT IDENTIFICATION
TECHNICAL
PLATE
TAV.1
Chillers and heat pumps for outdoor condensed in
the air with R410A Series ANL have been designed
and manufactured to satisfy heating and cooling
needs and the production of domestic hot water
buildings.
These units, have extremely silent functioning and
are highly efficient and reliable, thanks to the use of
exchangers with a large exchange surface and low-
noise high-efficiency scroll compressors.
They are available in the following versions:
ANL "°" Standard
ANL "H" Heat pumps
The versions can be in different set-ups at the same
time in order to satisfy a wide range of plant engine-
ering solutions:
"°" Standard
"P" Pumps
ANL100 ANL150
Water filter Standard Standard
Differential pressure switch Standard Standard
Flow switch No No
Safety valve No No
Air vent Standard Standard
Expansion tank No No
100 150
Water filter Standard Standard
Differential pressure switch Standard Standard
Flow switch No No
Safety valve Standard Standard
Air vent Standard Standard
Pump Standard Standard
Expansion tank Standard Standard
100 150
Water filter Standard Standard
Differential pressure switch Standard Standard
Flow switch No No
Safety valve Standard Standard
Air vent Standard Standard
Pump Standard Standard
Expansion tank Standard Standard
Storge tank Standard Standard
Scroll compressor Standard
Water side heat exchanger Standard
Source side heat exchanger Standard
Dehydrator filter Standard
Thermostatic valve Standard
Solenoid valve Standard
By-pass valve of hot gas injecton No
Indicator for liquid passage Standard
4-way cycle reverse valve Standard
One way valves Standard
Liquid storage tank Standard
High pressure switch Standard
Low pressure switch No
High pressure transducer Standard
Low pressure transducer Standard
Desuperheater No
Tap the liquid and discharge No
