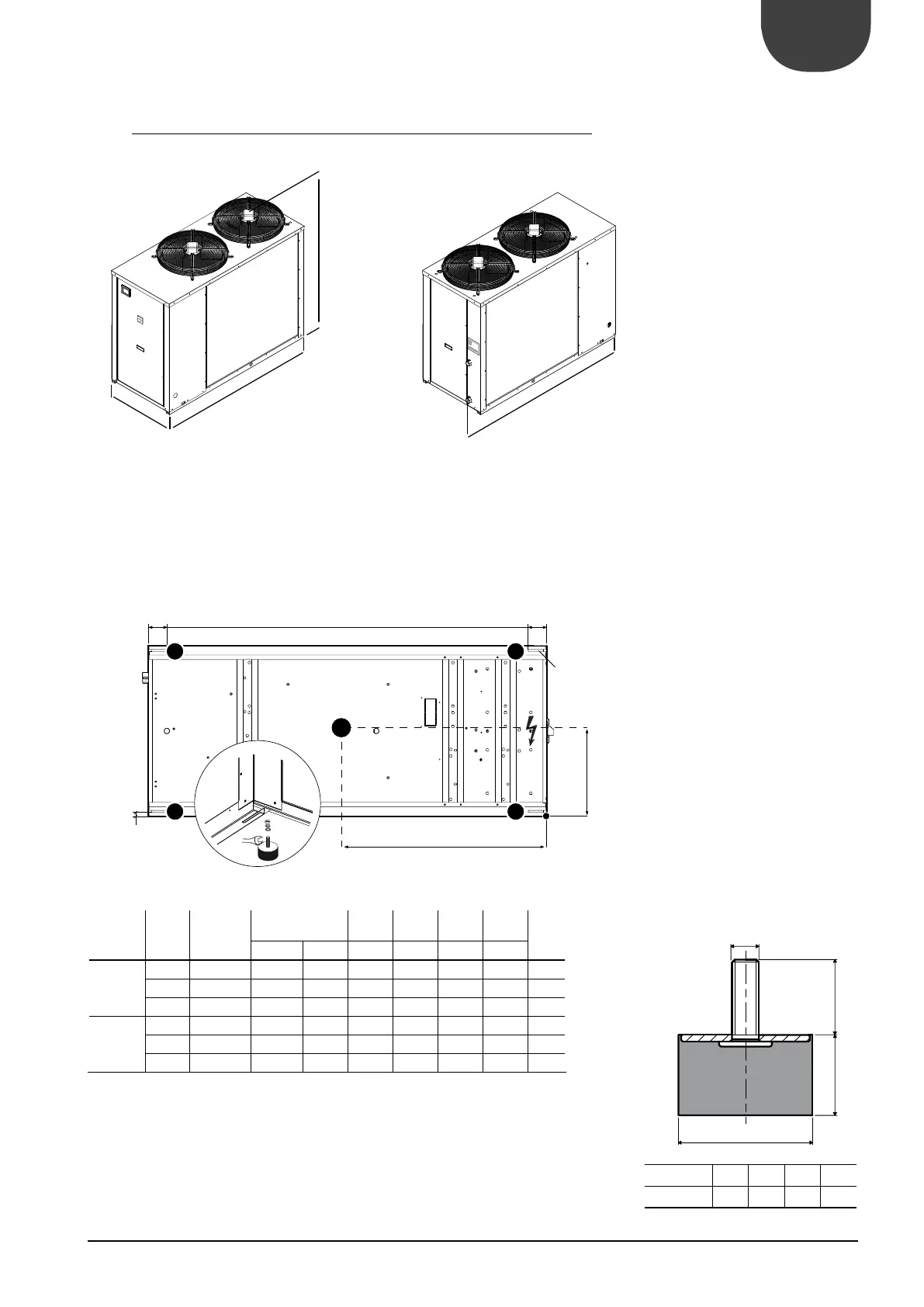

21. DIMENSIONS
22. ANTIVIBRATION POSITIONING AND DISTRIBUTION OF PERCENTAGE ON
SUPPORTING POINTS
A
D
CB
Mod. A B C D
50 30 28,5 M10
ANL VERS.
WEIGHT
CENTER OF
GRAVITY
A B C D
VT
Gx
ANL100H
650 381 604 32,2% 33,3% 17,0% 17,5% 15
P 690 381 640 31,2% 32,2% 18,0% 18,6% 15
A 800 381 640 30,1% 30,9% 19,2% 19,8% 15
ANL150H
710 382 630 31,4% 32,6% 17,7% 18,3% 15
P 756 382 671 30,3% 31,4% 18,8% 19,5% 15
A 866 382 671 29,3% 30,3% 19,9% 20,5% 15
21.1.
80 mm
3.1 in
1590 mm
62.6 in
20 mm
0.8 in
Ø 9
Gx
Gy
80 mm
3 in
A
B
C
D
1450 mm
57.1 in
1750 mm
68.9 in
1800 mm
70.9 in
750 mm
29.5 in
