4451C EN 2013-04-30 Introducing the CR 85-X
CR 85-X DIGITIZER

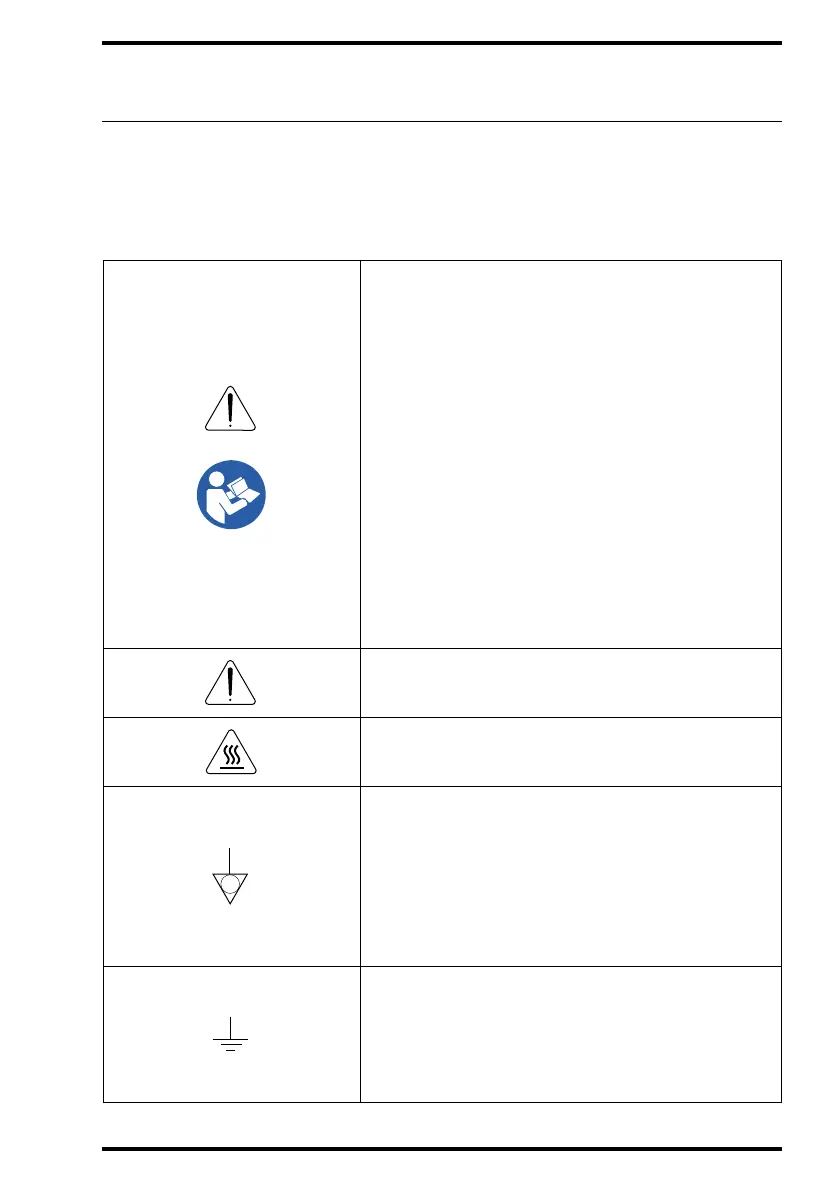

Markings and labels
Always take into account the markings and labels provided on the inside and
outside of the machine. A brief overview of these markings and labels and
their meaning is given below.
Safety warning, indicating that the CR 85-X manuals
should be consulted before making any connections to
other equipment. The use of accessory equipment not
complying with the equivalent safety requirements of this
Digitizer may lead to a reduced level of safety of the
resulting system. Consideration relating to the choice of
accessory equipment shall include:
• Use of the accessory equipment in the patient vicinity,
• Evidence that the safety certification of the accessory
equipment has been performed in accordance with the
appropriate IEC 601-1 and IEC 601-1-1 harmonized
national standard.
In addition all configurations must comply with the
medical electrical systems standard IEC 601-1-1. The party
that makes the connections acts as system configurator
and is responsible for complying with the systems
standard.
If required contact your local service organization.
In order to reduce the risk of electric shock, do not remove
any covers.
Caution hot:
Keep hands clear from the erasure unit.
Supplementary protective earth connector:
Provides a connection between the CR 85-X and the
potential equalization busbar of the electrical system as
found in medical environments. This plug should never be
unplugged before the power is turned off and the power
plug has been removed.
It is recommended to use the supplementary protective
earth connection as additional safety measure.
Intergrounding connector:
Provides a connection between the Digitizer and other
equipment which might exhibit minor ground potential
differences. These differences may degrade the quality of
communication between different equipment. Never
remove connections to this terminal.
