AGFA CR 85-X Reference Manual

93
4451C EN 2013-04-30 Troubleshooting
CR 85-X DIGITIZER
Clearing image plate jams
The CR 85-X always reads and digitizes the plate first, then erases it and feeds
it to the output buffer. If a plate jam occurs before the plate is scanned, there
is a fair chance that you can recover the image by putting the image plate back
into the cassette and digitizing it again. While handling the image plate,
prevent exposing it to daylight as much as possible.

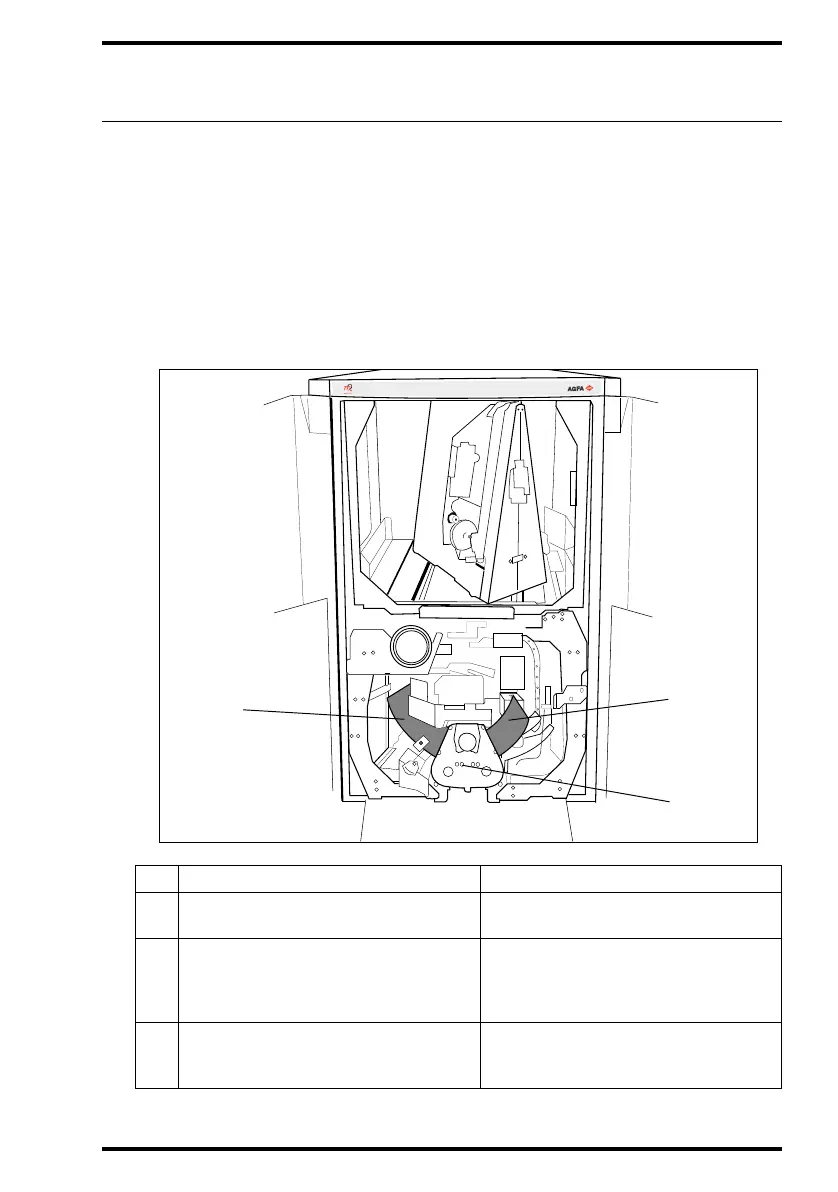

The diagram below shows the possible locations of a jammed image plate and
the probable status of the image.
Status Action
1
Plate jam in the post-scan unit. Image is
OK.
Erase the image plate.
2
Plate jam in the pre-scan unit. Image plate
is not erased but cassette status is set to
‘erased’.
1 Re-identify cassette via ID
Station.
2 Digitize cassette.
3
Plate jam in the scanner. Cassette status is
set to ‘erased’. Image is damaged.
1 Erase the image plate.
2 Redo the patient exam.
MUSICA
1
2
3
