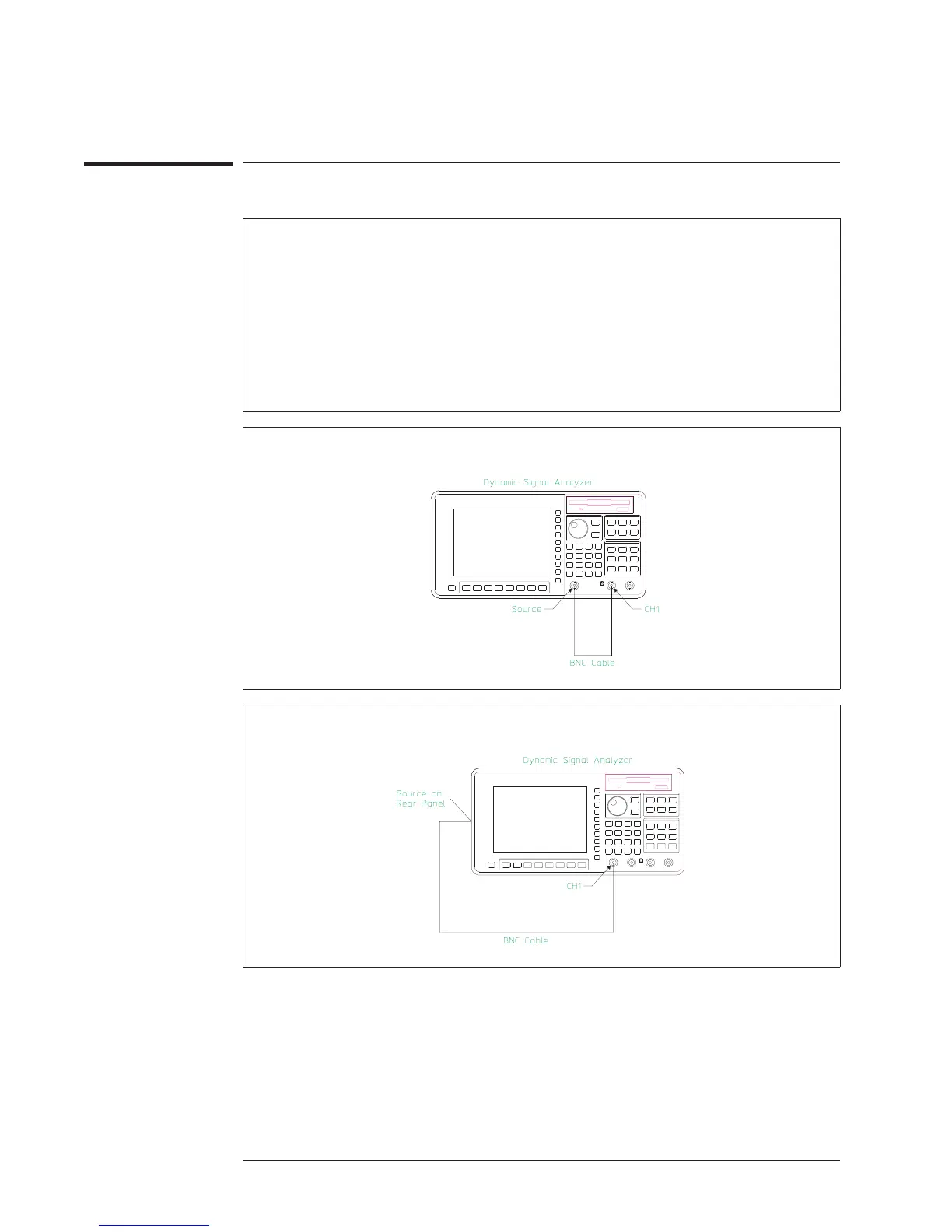

To set up the source distortion test
Performance Test and Operation Verification
This test verifies that the Agilent 35670A meets its source output specification for
harmonic and sub-harmonic distortion and spurious signals. In this test, the
analyzer’s source is connected to its channel 1 input. The source is set for a
maximum output level (5 Vpk) and the input range is set equal to the source level.
The fundamental and harmonic is measured. The test records at the end of this
chapter list the fundamental frequencies that are checked.
1 2ch
1 4ch
Verifying Specifications Agilent 35670A
To set up the source distortion test
3-48
