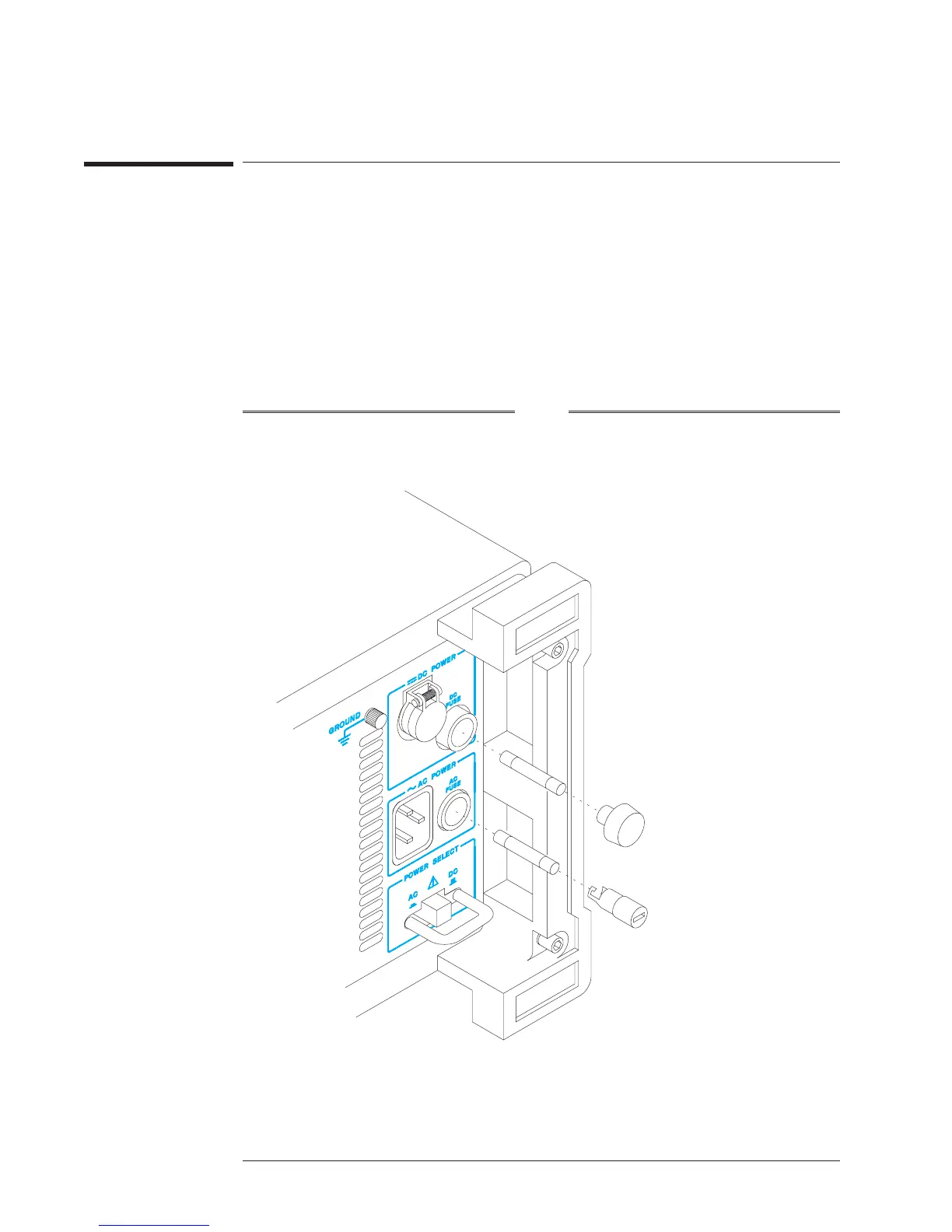

To change the fuses
Both fuses are installed at the factory.
1 Unplug the power cord from the analyzer.
2 Press in and turn the appropriate fuse holder cap counter-clockwise (use a small screw
driver for the ac fuse). Remove when the fuse cap is free from the housing.
3 Pull the fuse from the fuse holder cap.
4 To reinstall, select the proper fuse and place in the fuse holder cap.
DC Fuse AC Fuse
HP 2110-0920 30 A 32 V Normal Blow HP 2110-0342 8 A 250 V Normal Blow
5 Place the fuse holder cap in the housing. Press in and turn clockwise.
