To set up the external trigger test
Performance Test only
This test verifies that the Agilent 35670A meets its trigger specification for external
trigger level accuracy. In this test, a frequency synthesizer outputs a 1kHz signal to
the external trigger input and a 12.8 kHz signal to channel 1. The analyzer makes
an accurate triggered measurement on channel 1 to verify the trigger level and
slope.

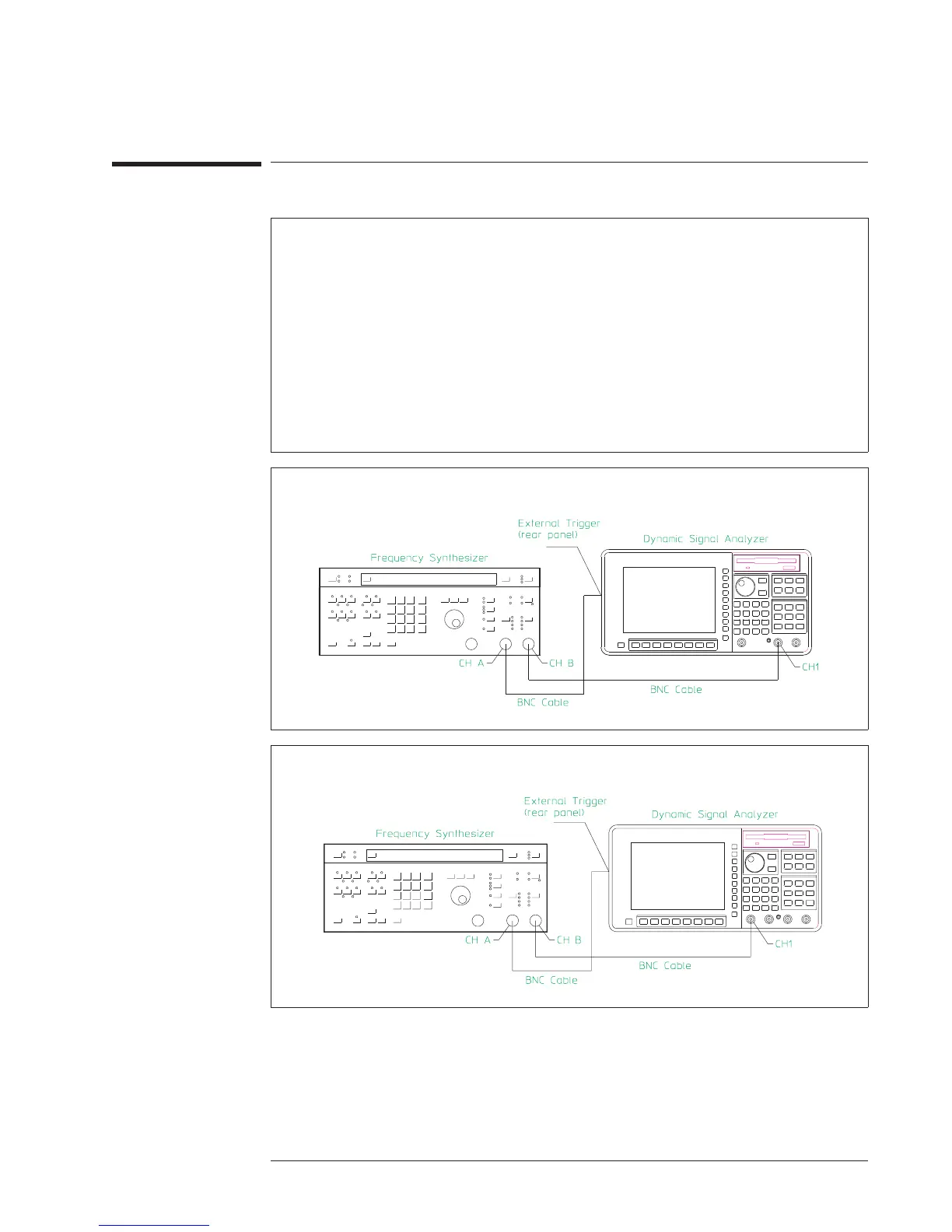

1 2ch Using an HP 3326A
1 4ch Using an HP 3326A
