To connect the analyzer to an external monitor
The External Monitor connector is a 9-pin D female miniature connector that can
interface with an external, multisync monitor. The monitor must be compatible with
the 24.8 kHz line rate, 55 Hz frame rate, and TTL signals provided by the
Agilent 35670A. A SONY CPD-1302 monitor and a NEC Multisync 3D monitor with
EZPIXpc† driver has been checked and found compatible with the Agilent 35670A
external monitor mode operation.
1 Set the analyzer’s power switch to on ( l ).
2 Set the monitor’s power switch to on and configure the input and timing mode if
necessary.
See the manual supplied with the monitor for information on configuring the monitor’s
input and timing mode.

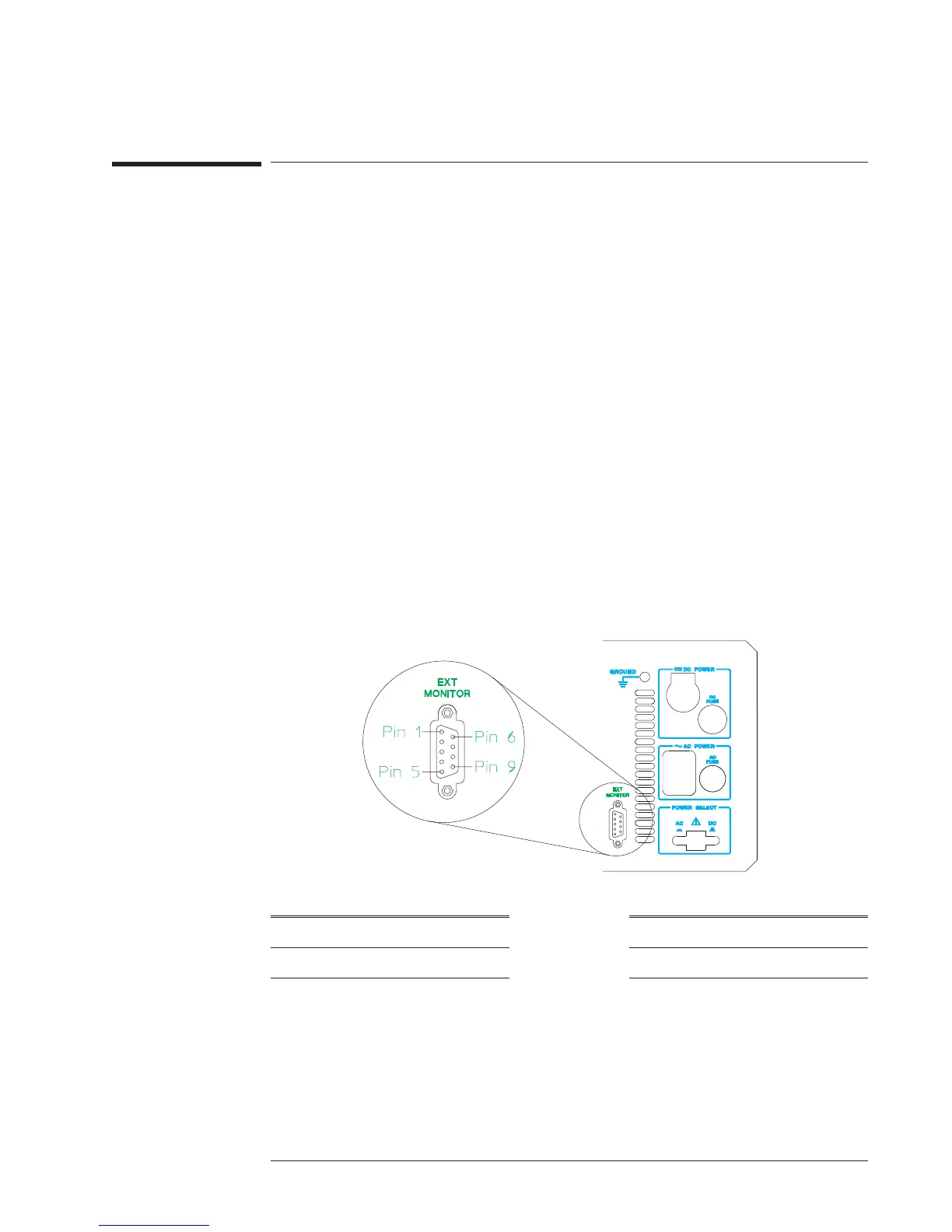

3 Connect the external monitor’s input cable to the analyzer’s rear panel EXT
MONITOR connector.
A cable with a 9-pin connector option or an adapter to a 9-pin connector is required to
connect the monitor to the Agilent 35670A.
4 Press the following keys to enable external mode:
[
Disp Format ]
[
MORE ]
[
MORE ]
[
EXT MON ON OFF ]
Pin Number Signal Name Pin Number Signal Name
3 R 8 HSYNC
4 G 9 VSYNC
5 B 1, 2, 6 GND
† The EZPIXpc driver converts TTL video signals into RGB analog signals, drives 75 ohm coax cable,
provides RGB composite sync or RGB sync on green, for monitors with RGB input capability. EZPIXpc,
Covid, Inc., 1725 West 17th St, Tempe, Arizona 85281, 800-638-6104
Agilent 35670A Preparing the Analyzer for Use
To connect the analyzer to an external monitor
2-13
