6-8 Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4
Programming Examples for VEE Users
Programming Basics
To define transactions in the To/From object
You can define transactions (functions of plug&play driver) as shown in the
following example.
1. Double click the blue stripe on the To/From object. The Select a Function Panel
dialog box is displayed. The dialog box lists the functions available for the
instrument, and displays the Help message for the selected function.
2. Select the function you want to add to the To/From object. Figure 6-4 selects the
“Applying dc Current/Voltage” function, and displays the Help message for that
function.
3. Click OK. The Select a Function Panel dialog box is closed, and the Edit
Function Panel dialog box is displayed. See Figure 6-5 on page 6-9.

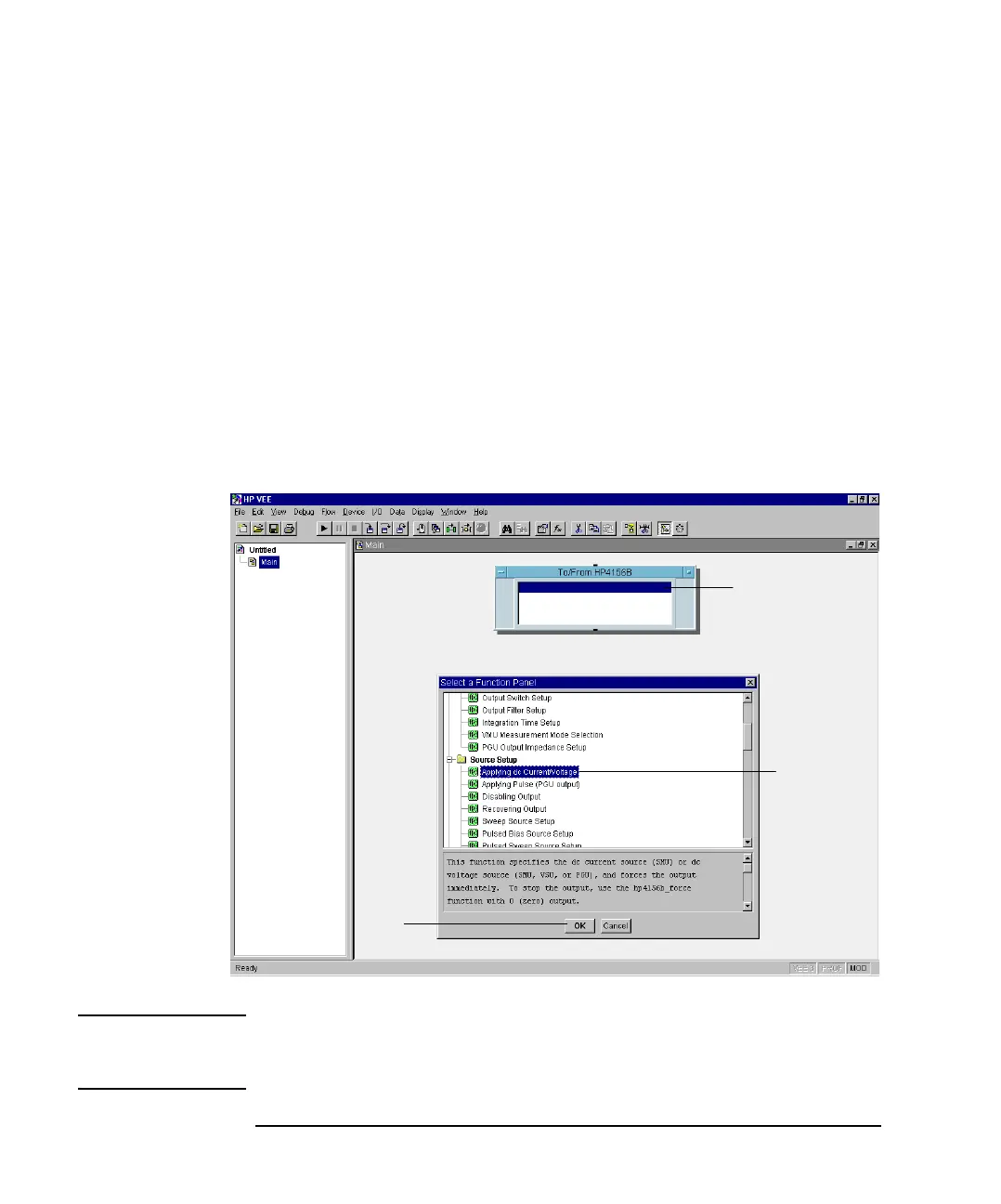

Figure 6-4 To Define Transactions
NOTE To add, insert, cut, copy, or paste the transaction, click the right mouse button on the
To/From object, then select Add Trans, Insert Trans, Cut Trans, Copy Trans, or
Paste Trans.
