Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 6-9
Programming Examples for VEE Users
Programming Basics
To set input parameters
You can set the input parameter value using the Edit Function Panel dialog box.
Figure 6-5 sets the following values for the input parameters of the hp4156b_force
function, which forces dc current or voltage.
channel SMU1
mode VOLTAGE OUTPUT
range (output range) 0 (auto range)
value 0 V
compliance 10 mA
polarity AUTO

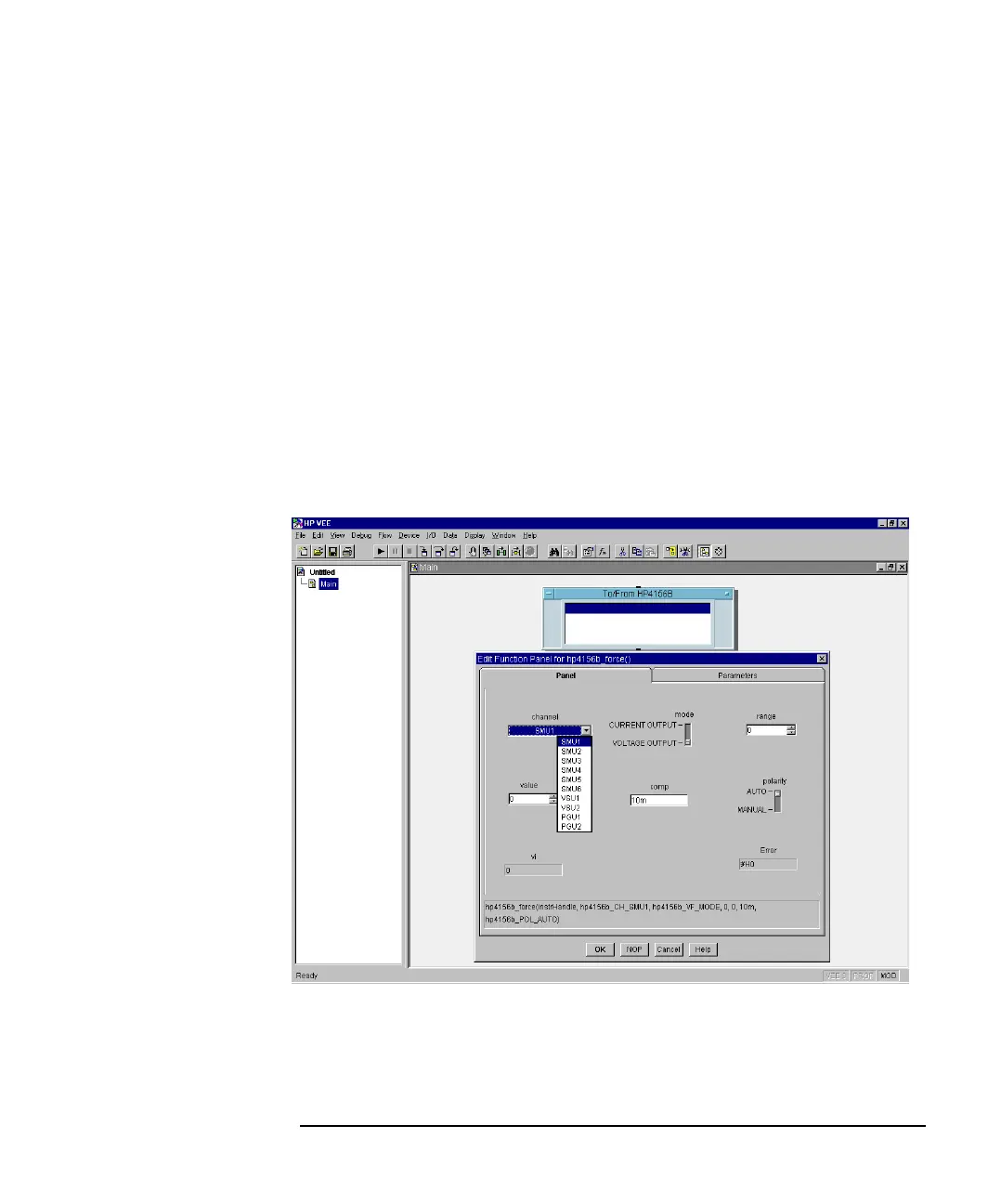

Figure 6-5 To Set Input Parameters
