Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 6-11
Programming Examples for VEE Users
Programming Basics
To use input variables
Most of the Edit Function Panel dialog boxes have two tabs, Panel and Parameters.
To change the value, enter the value in the Panel tab.
If you pass the value from another object, such as Data-Real object, click the
Parameters tab, and use Variable (not Constant). See Figure 6-7.

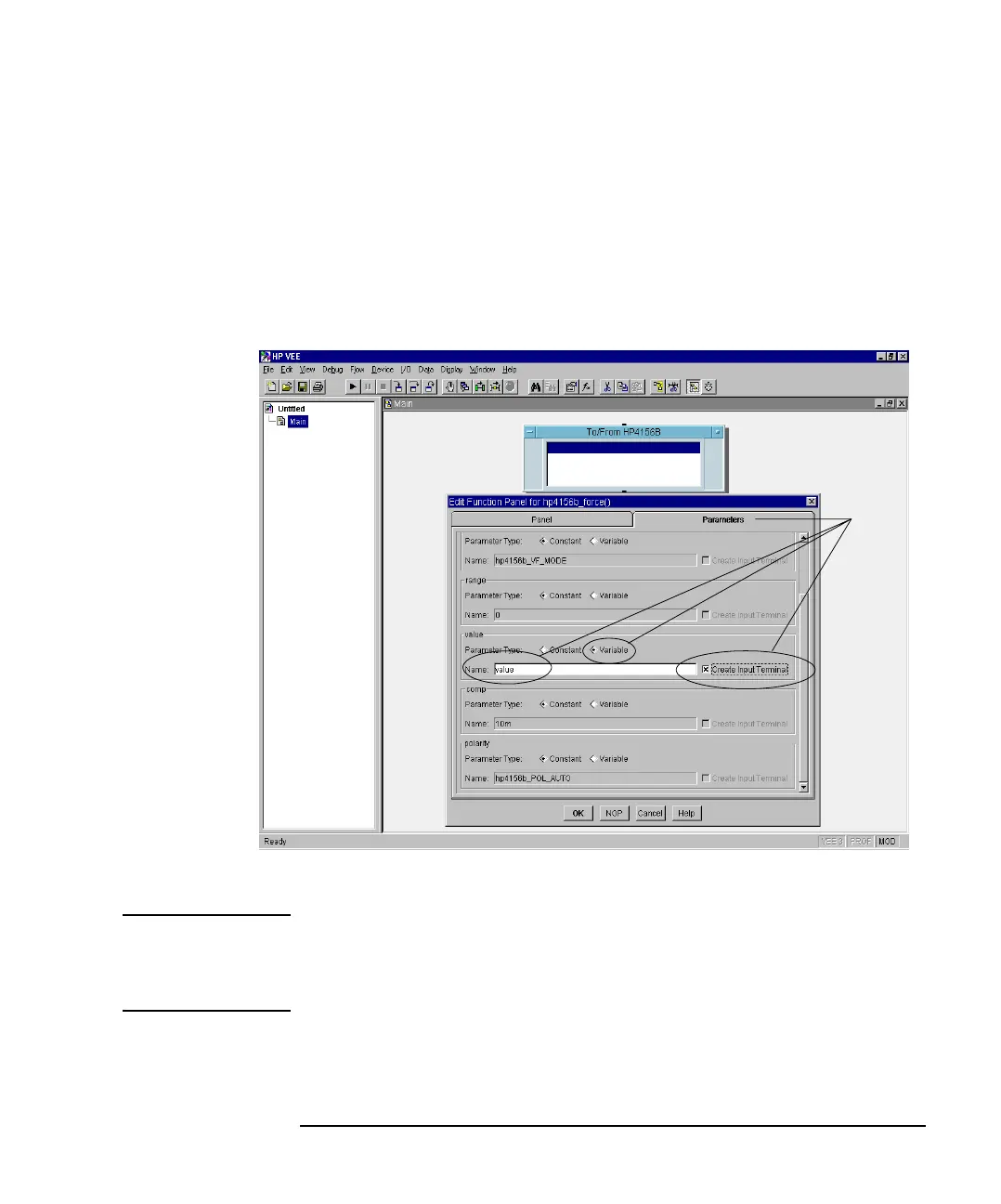

Figure 6-7 To Use Input Variables
NOTE You can add terminals, after closing the dialog box, by placing the mouse pointer on
the terminal area in the object and pressing Ctrl-A. You can also delete terminals by
placing the mouse pointer on the terminal name you want to delete, and pressing
Ctrl-D.
