Adjustment

Program

The

adjustment

program

listed

in T

able 1-1

is required

for the

adjustments.

Using the

program,

the

computer

controls

the

4263B and

the other

pieces of

equipment to

obtain the

adjustment

data,

and

stores

the

data in

the 4263B

internal EEPROM,

A2U1.

The

adjustment

program

runs

the

computer

listed

in T

able 1-1

.The

program

should

installed

into

your

computer

according to

the procedure

described in

\Program Installation

start

the

program

after

it has

been installed,

refer to

the \Program

Execution

Figure

2-1

shows

the

adjustment program

ow.

The following

lists the

brief

explanation

for

each

item.

the end

of each

adjustment, the

program writes

the

obtained

adjustment

data

both

the

4263B internal

EEPROM and

to the

unit-serial-number dependent

le

the

disk.

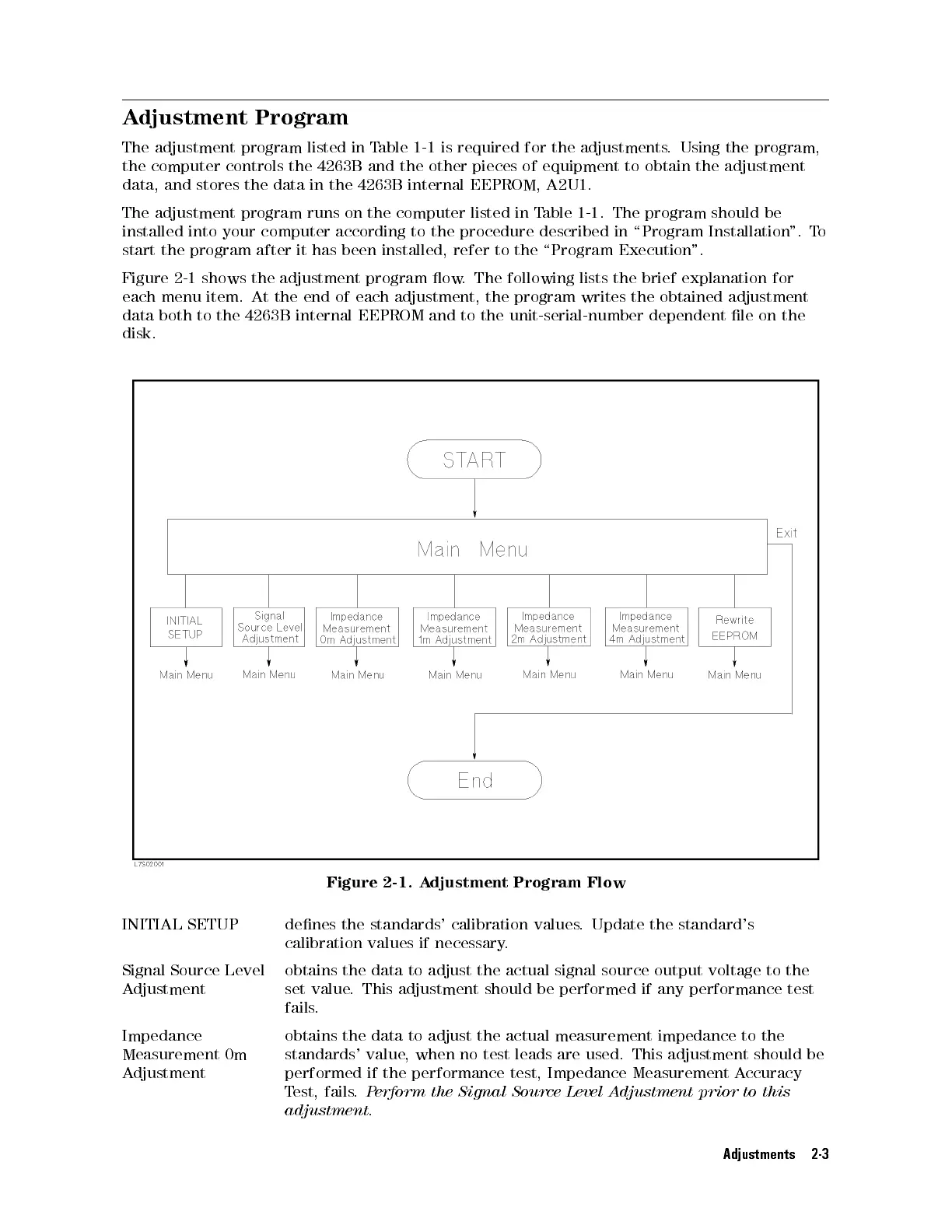

Figure 2-1. A

djustment Program Flow

INITIAL SETUP

denes the standards' calibration values

. Update the standard's

calibration values if necessary

Signal

Source Level

Adjustment

obtains

the data to adjust the actual signal source output voltage to the

set value

. This adjustment should be performed if any performance test

fails.

Impedance

Measurement 0m

Adjustment

obtains the data to adjust the actual measurement impedance to the

standards' value, when no test leads are used. This adjustment should be

performed if the performance test, Impedance Measurement Accuracy

Test, fails.

Perform the Signal Source Level Adjustment prior to this

adjustment.

Adjustments 2-3
