Overall
Block
Diagram

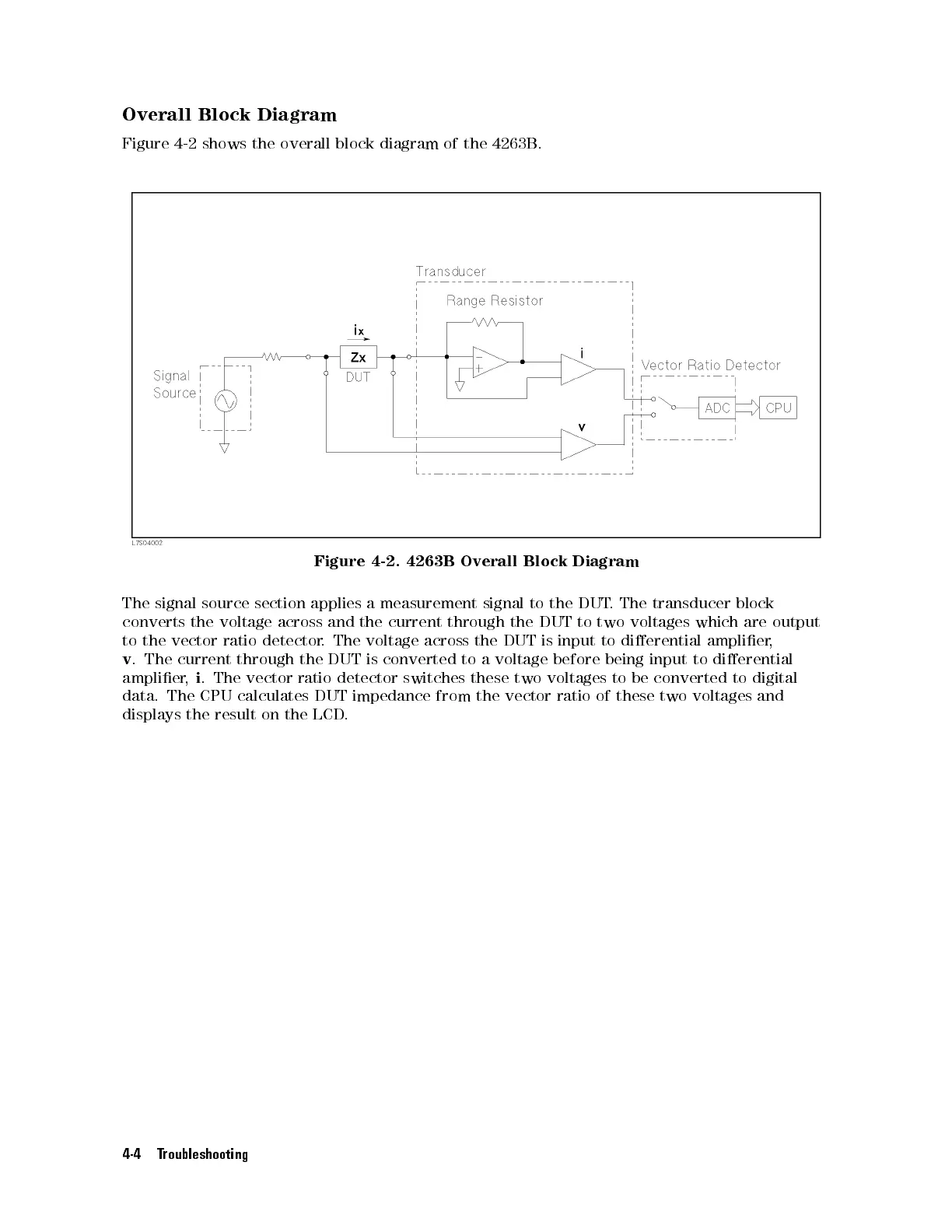

Figure
4-2
shows
the
overall
block
diagram
of
the
4263B
.
Figure
4-2.
4263B
Overall
Block
Diagram
The
signal
source
section applies
a
measurement
signal
to
the
DUT
.
The
transducer
block
converts
the
voltage
across and
the
current
through
the
DUT
to
two
voltages
which
are
output
to
the
vector
ratio
detector.
The
voltage
across
the
DUT
is
input
to
dierential
amplier
,
v
.
The
current
through the
DUT
is
converted
to
a
voltage
before
being
input
to
dierential
amplier
,
i
.
The vector
ratio detector
switches
these
two
voltages
to
be
converted
to
digital
data.
The
CPU
calculates
DUT
impedance
from
the
vector
ratio
of
these
two
voltages
and
displays the
result
on
the
LCD
.
4-4 Troubleshooting
