Disassembly Procedures
This
section
provides
the
procedures to
disassemble the
4263B's
major assemblies
.T
ools and
fasteners
required
for
the
replacement are
described.
Caution
SUSCEPTIBLE TO
DAMA
GE FROM
ESD
.
P
erform
the
following
procedures
only
at
a
static-safety
workstation
and
wear
a
grounding
strap
.
T
ools
and
F
asteners
The
4263B
mechanical
components
are
secured
using
metric
threaded fasteners
. Many
fasteners
in
the
4263B
may
appear
to
be
Phillips
type
,but
they are
in fact,
P
ozidrive
type
.
T
o
avoid
damaging
them,
use
only
pozidrive
screwdrivers
to
remove
or
tighten pozidrive
type
fasteners
.
Cover
Removal
The
following
procedure
is
common
for
gaining access
to any
of the
assemblies
.

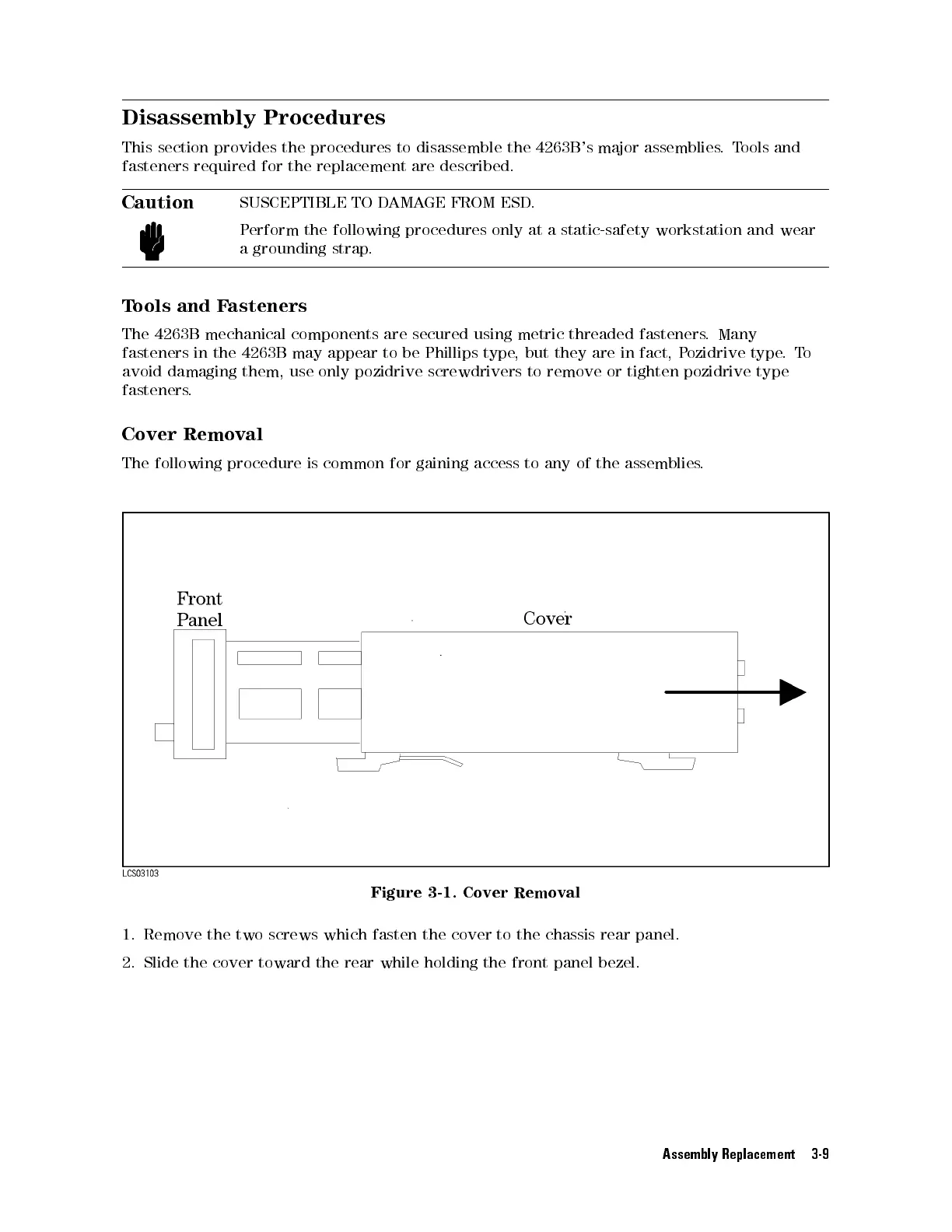

Figure 3-1. Cover Removal
1. Remove the two screws which fasten the cover to the chassis rear panel.
2. Slide the cover toward the rear while holding the front panel bezel.
Assembly Replacement 3-9
