V
ector Ratio
Detector Section
The
vector ratio
detector
section
processes
the
two
output
voltages
from
the
transducer
section
and
converts these
voltages
into
digital
data.

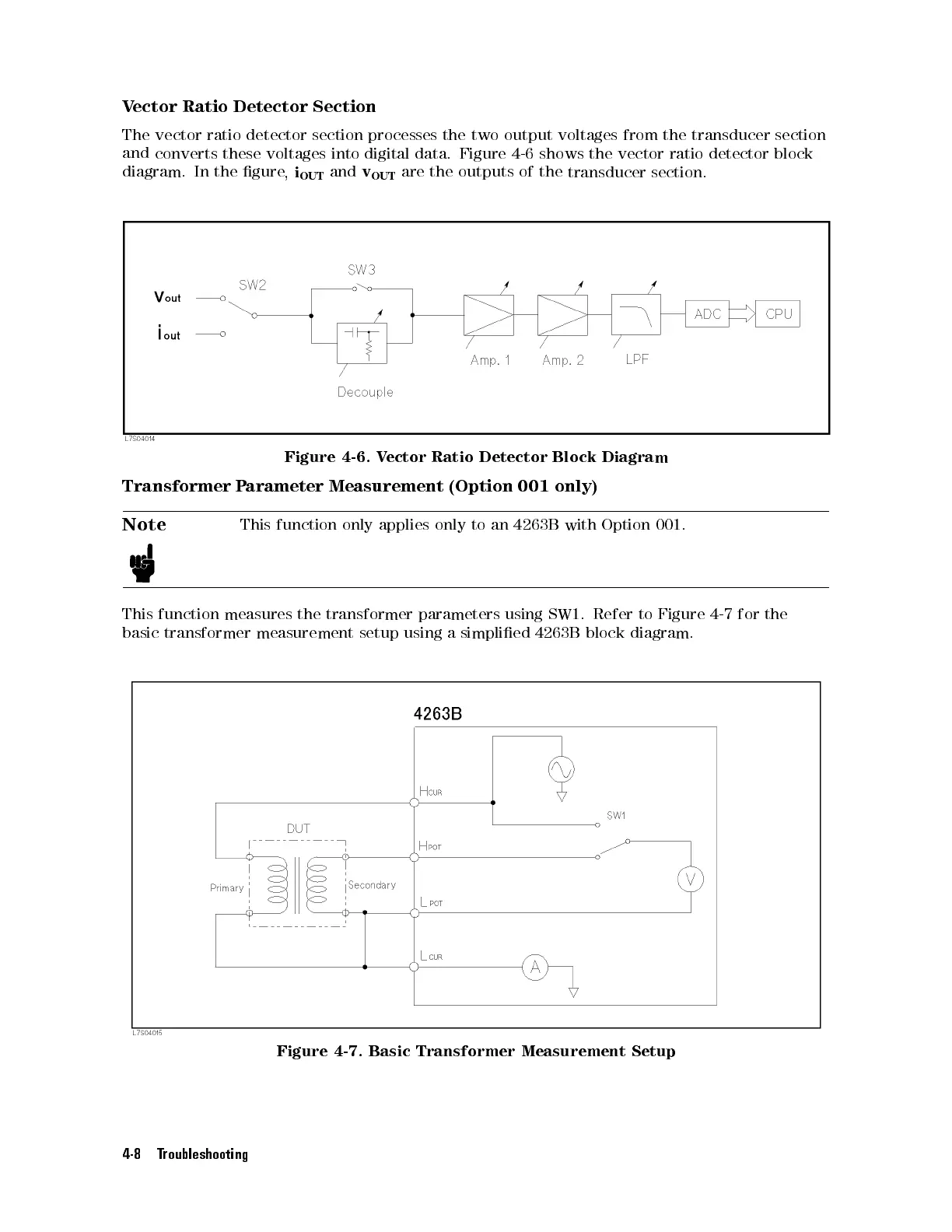

Figure
4-6
shows
the
vector
ratio
detector
block
diagram.
In the
gure
,
i
OUT
and
v
OUT
are
the outputs
of
the
transducer
section.
Figure
4-6.
V
ector
Ratio
Detector
Block
Diagram
Transformer
P
arameter Measurement
(Option 001
only)
Note
This
function
only
applies
only
to
an
4263B
with
Option
001.
This
function
measures
the
transformer
parameters
using
SW1.
Refer
to
Figure
4-7
for
the
basic
transformer
measurement
setup
using
a
simplied
4263B
block
diagram.
Figure 4-7. Basic Transformer Measurement Setup
4-8 Troubleshooting
