Agilent Technologies 4263B LCR - Default Jumper and Switch Settings; Introduction; Jumper and Switch Settings

B
Default
Jumper and
Switch Settings
Introduction
This
appendix describes
the setting
of the
jumpers
and
switches
on
the
A2
CPU
Board
Assembly
. Use
this information
when the
A2
Assembly
is
replaced.
Jumper
and
Switch
Settings
Figure
B-1
shows
the
default
Jumper
and
Switch
settings
. When
the
A2
CPU
Board
Assembly
is
replaced,
set
the
jumpers
and
switches
to
the
default
sides
as
shown
in
the
gure.

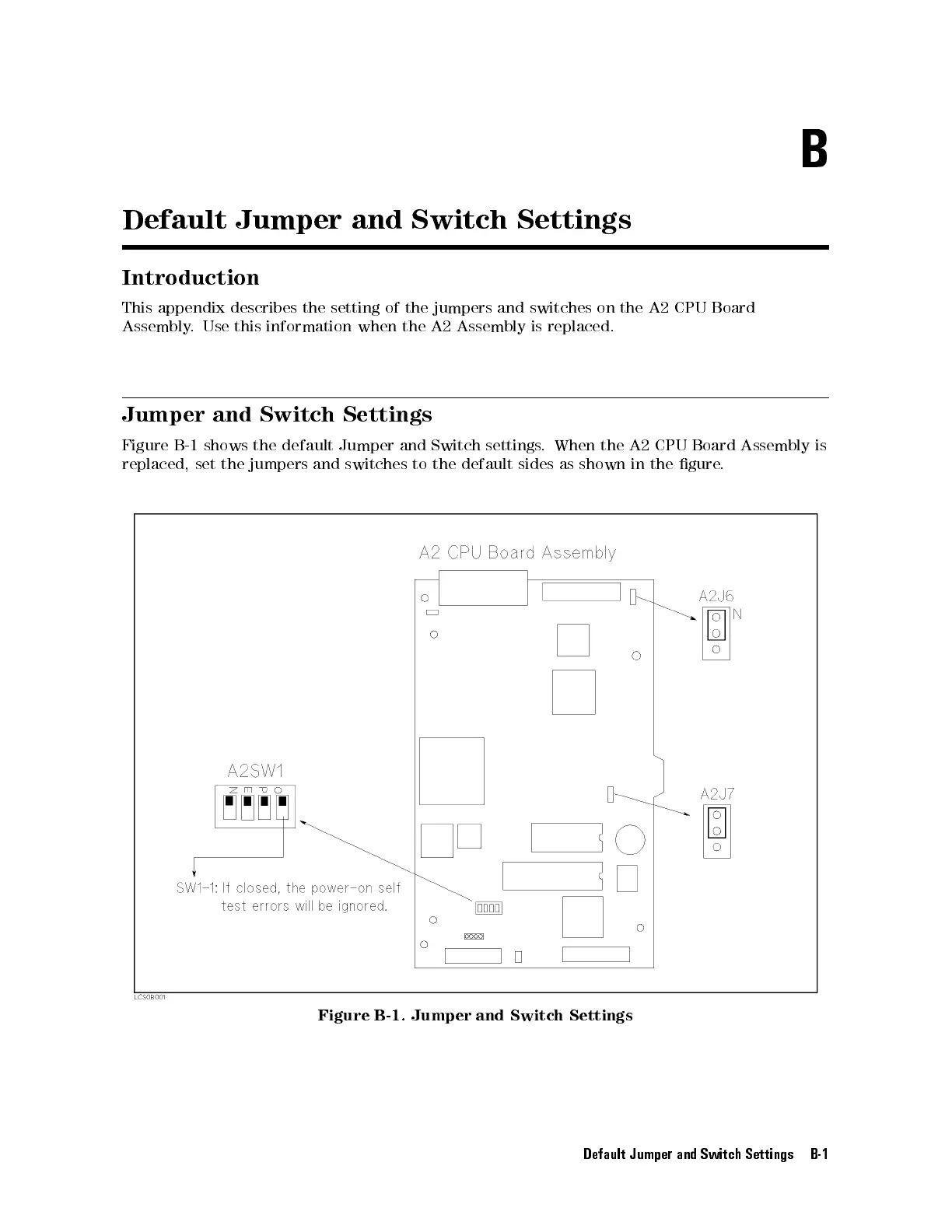

Figure B-1. Jumper and Switch Settings
Default Jumper and Switch Settings B-1
