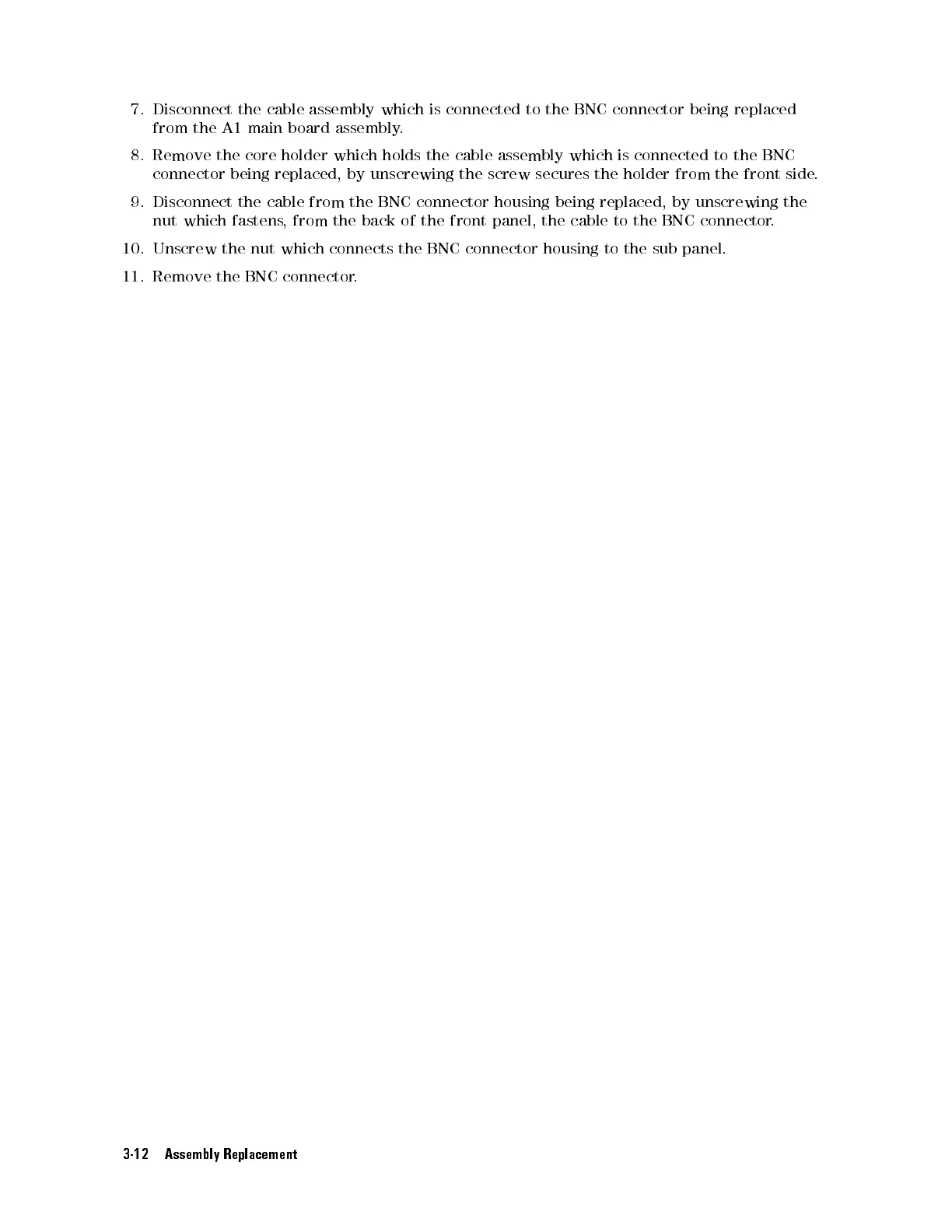

7. Disconnect
the cable
assembly which
is
connected
to
the
BNC
connector
being
replaced
from the
A1 main
board assembly
.
8. Remove
the
core
holder
which
holds
the
cable
assembly
which
is
connected
to the
BNC
connector being
replaced,
by
unscrewing
the
screw
secures
the
holder
from
the
front
side.
9. Disconnect
the
cable
from
the
BNC
connector
housing
being
replaced,
by
unscrewing
the
nut
which
fastens
,
from
the
back
of
the
front
panel,
the
cable
to
the
BNC
connector
.
10.
Unscrew
the
nut
which
connects
the
BNC
connector
housing
to
the
sub
panel.
11.
Remove
the
BNC
connector
.
3-12 Assembly Replacement
