Chapter 3: Testing Performance
To test the dc calibrator
3–4
To test the dc calibrator
The Aux Out BNC on the front panel is used for self-calibration and probe calibration. Though
calibrator accuracy is not specified in the performance specifications, it must be within limits in
order to provide accurate self-calibration.
Test Limits: -2.5 v to +2.5 v, Accuracy
±0.2% of delta voltage output
Equipment Required
Procedure
1
Connect the multimeter to the front panel Aux Out BNC.
Use the BNC cable and the BNC to banana plug adapter.
2 Enable the graphical interface.
Use the mouse to click on the button in the upper right-hand corner of the display. See figure 3-1.

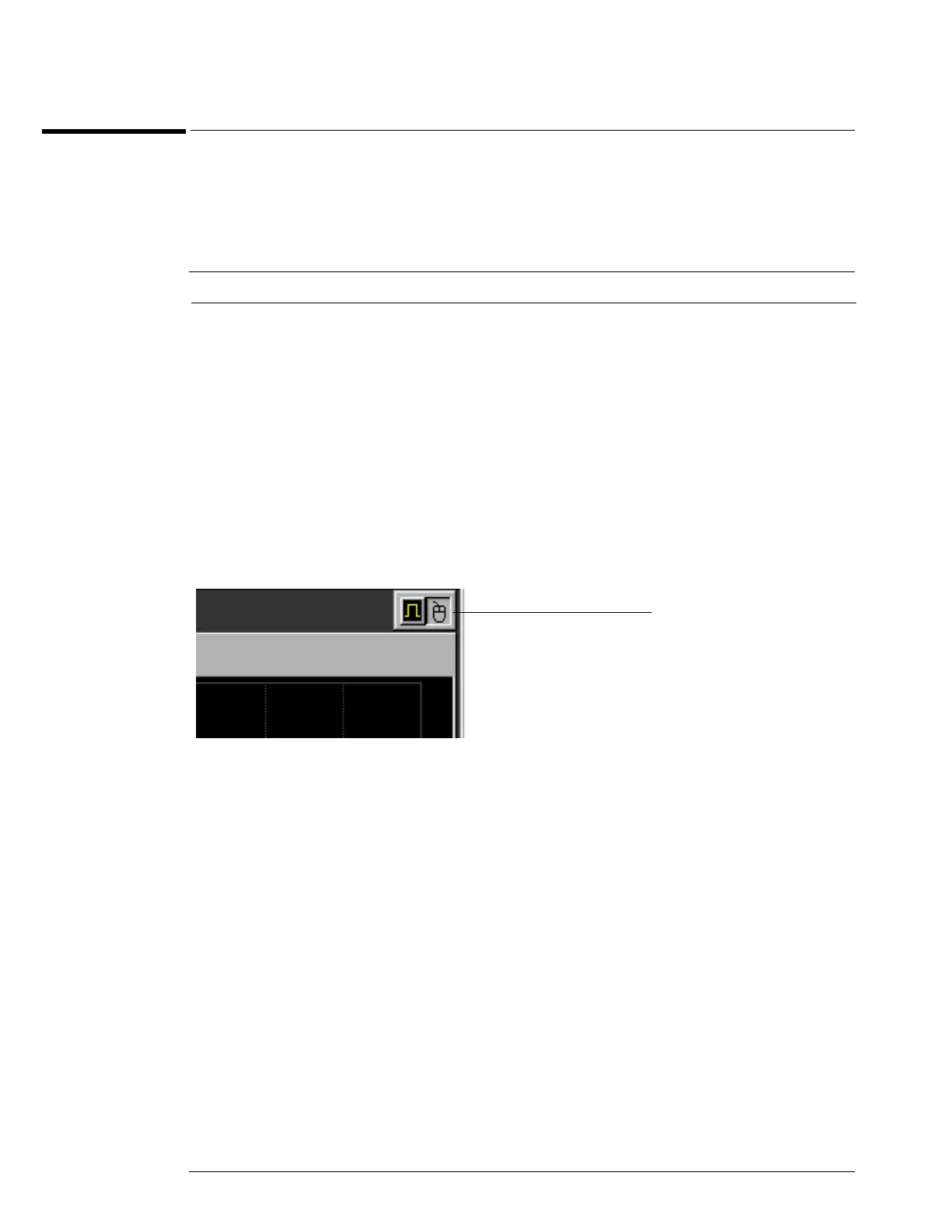

Figure 3-1
Enabling the graphical interface
3 Press Default Setup to set the oscilloscope to default conditions.
4 Select Calibration from the Utilities menu.
5 Select DC from the Aux Output drop-down list box.
See figure 3-2.
Equipment Critical Specifications Recommended Model/Part
Digital Multimeter 0.1 mV resolution, better than 0.1 % accuracy Agilent 34401A
Cable BNC Agilent 10503A
Adapter BNC (f) to banana (m) Agilent 1251-2277
Click the mouse with the
pointer on the right-hand
button to enable the
graphical interface
