Chapter 5: Troubleshooting
To configure the motherboard jumpers and set up the BIOS
5–37
Configuring the AMI Series 757 Motherboard for 200 MHz CPU
There are several jumpers on the motherboard that must be configured to the correct settings
for the AMD-K6 200 MHz microprocessor. Figure 5-10 shows the series 757 Rev C motherboard.

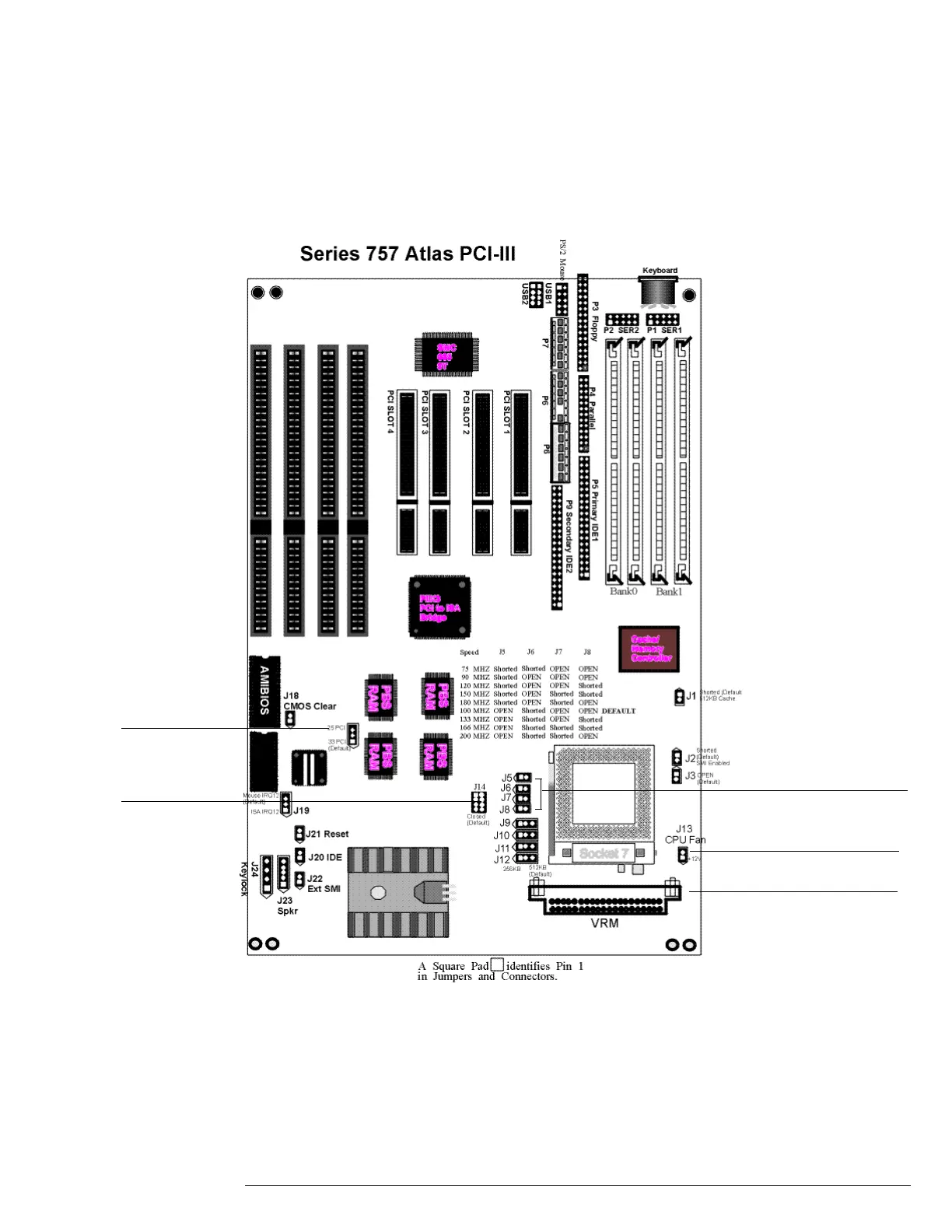

Figure 5-10
Series 757 Rev C Motherboard Jumpers
VRM Connector
J5, J6, J7, J8
J13
J14
J15
