Configuring the AMI Series 727 Motherboard Jumpers
There are several jumpers on the motherboard that must be configured to the correct settings
for the AMD-K5-PR133 (100 MHz) microprocessor. Figure 5-9 shows the series 727 motherboard.

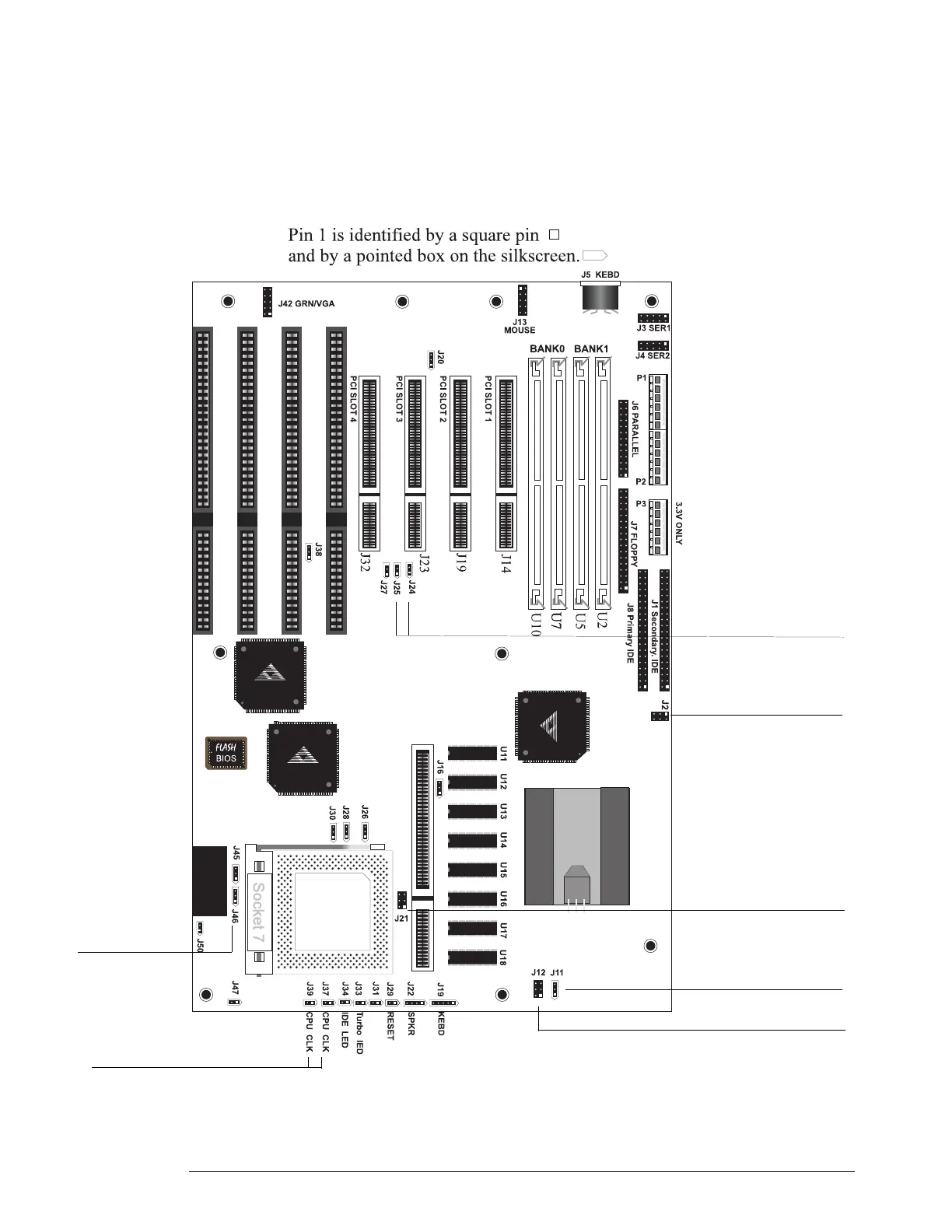

Figure 5-9
Series 727 Motherboard Jumpers
J46
J21
J11
J12
J2
J24, J25
J37, J39
