Chapter 2: Preparing for Use
To connect the mouse or other pointing device
2–5

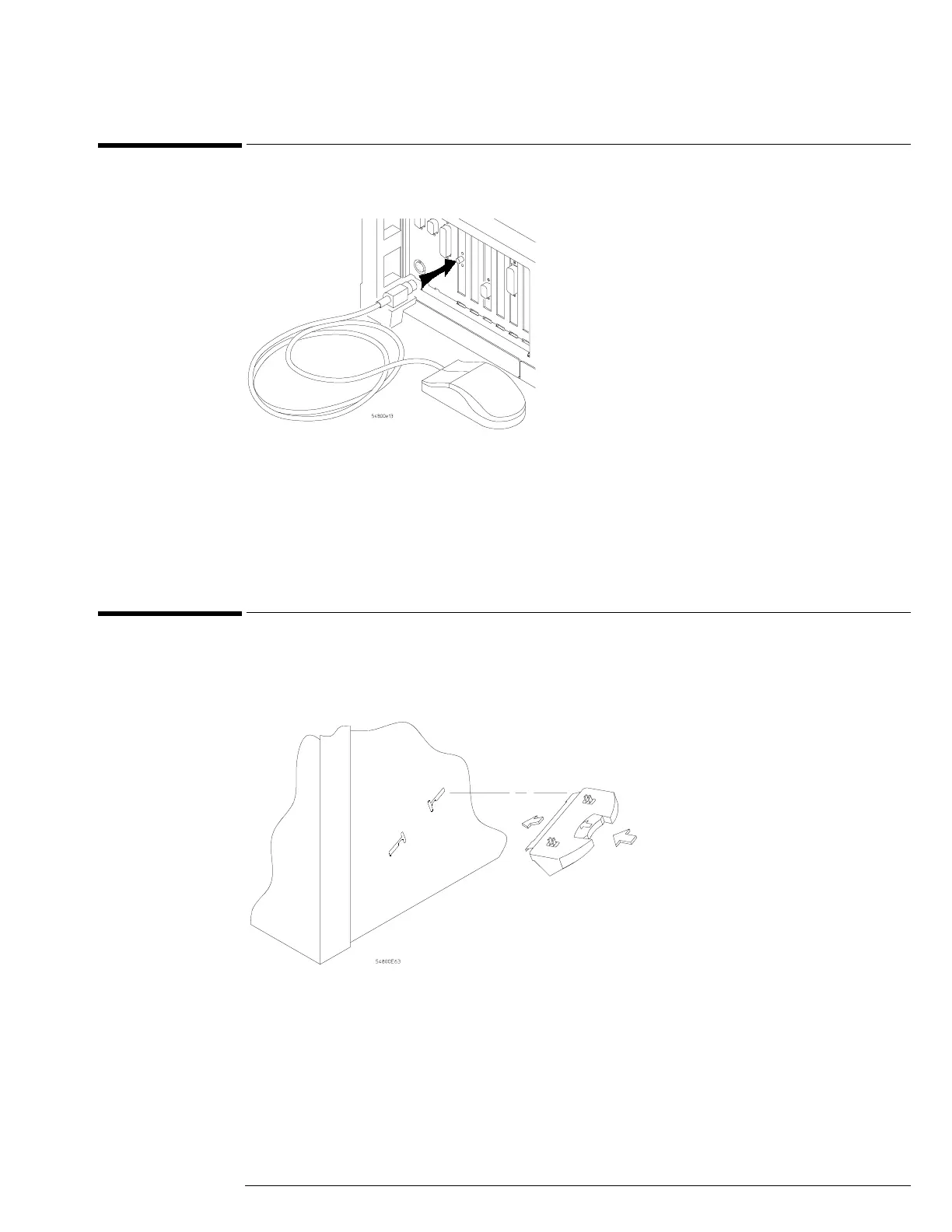

To connect the mouse or other pointing device
• Plug the mouse into the matching connector on the back panel of the oscilloscope.
The mouse is included with the oscilloscope, but using it is optional. While you can operate many
oscilloscope functions with only the front-panel keys and knobs, you will need the mouse to
access advanced oscilloscope functions through the graphical interface, or to find out more about
the oscilloscope through the built-in information system.
The optional touchpad pointing device connects in exactly the same way as the mouse.
The supplied mousepad provides the correct surface for smooth mouse operation. To modify the
mouse configuration, see the User’s Quick Start Guide.
To attach the optional trackball
1 Push in the latch on the trackball baseplate to extend the metal tabs. Insert the lower
tab into the frontmost slot on the side of the oscilloscope. You can only install the
trackball on the right side of the oscilloscope.
