6 General Maintenance
186 5977B Series MSD Operating Manual
Do not overtighten the interface socket. Overtightening could strip the threads.

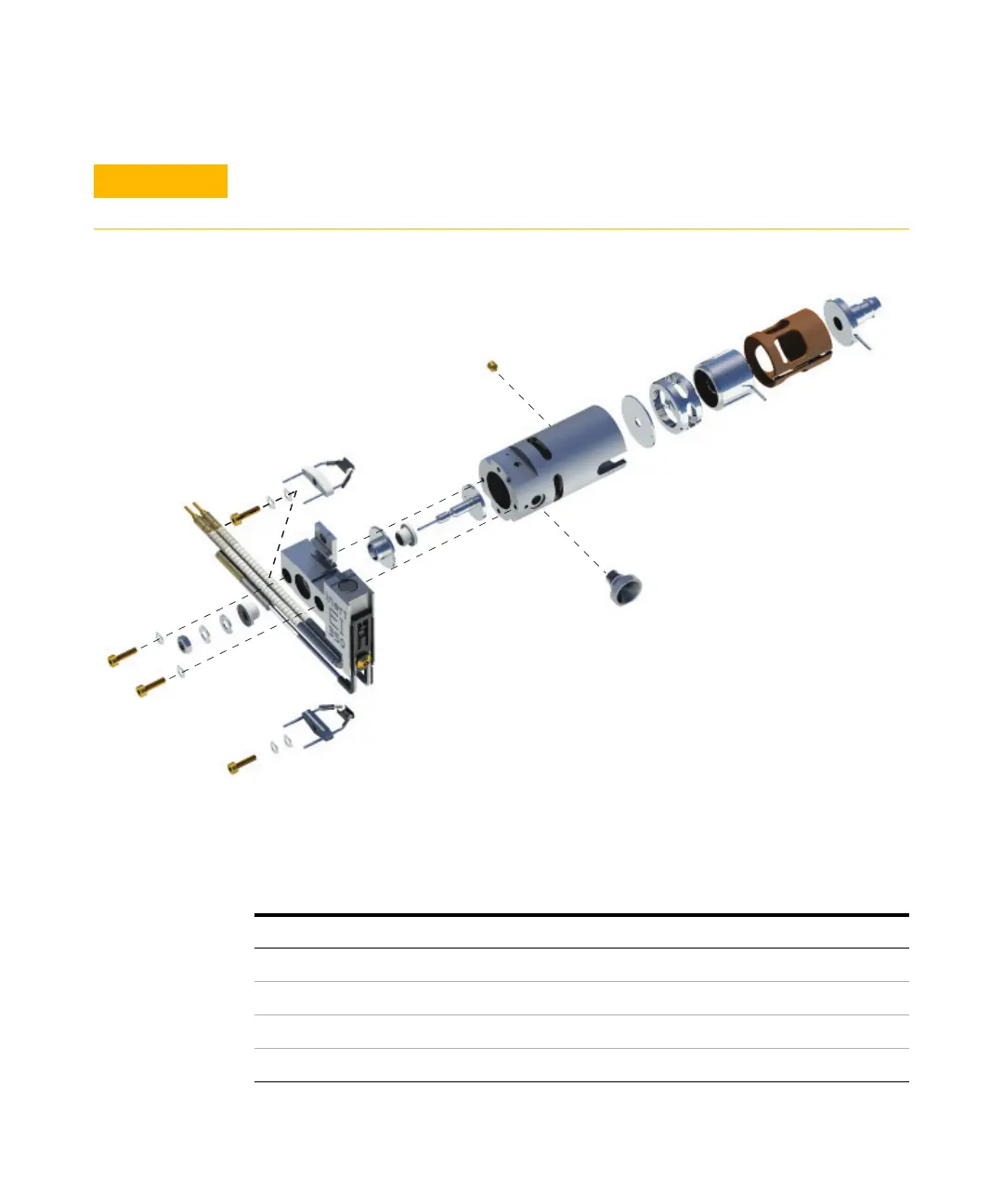

Figure 59 Assembling the EI standard or EI Inert source
1
2
8*
15
151515
14
1414
2*
2*
16
1616
8*
12*
12*12*
10
2*
8*
8*
7*
17
18
3
8
8
7
12
13
4
6
5
11
9
Table 2 1 Parts list for the EI standard or EI Inert source (Figure 59)
Item number Item description Part number (SSL) Part number (Inert)
1 Gold plated set screw G1999-20022 G1999-20022
2 Gold plated screw G3870-20021 G3870-20021
3 Interface socket G1099-20136 G1099-20136
4 Source body G1099-20130 G2589-20043
