Theory of Operation
2-5
SDN Topology
The SDN uses a star topology that consists of up to 32 individual branches
emanating from the center of the star—the ACC. Only one ACC may be
used per SDN. One SDN can accommodate up to 24 bedside instruments
(one patient per branch), 6 information centers (ICs), and 2 computerized
monitoring systems. For details on specific operational and topological
limitations, refer to the Installation section.

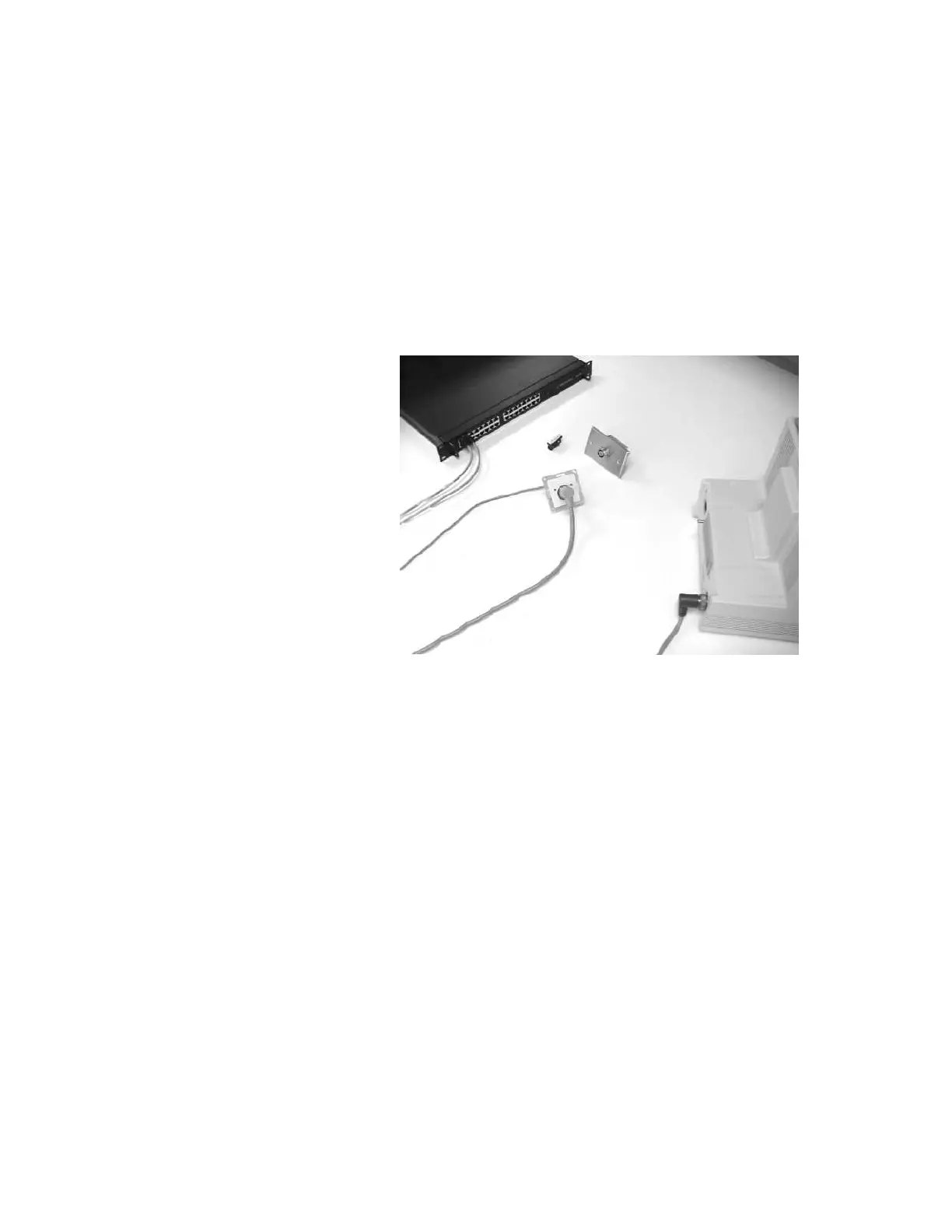

A typical SDN configuration is illustrated below.
Figure 2-1. Typical SDN Configuration
