Procedures
8-26
9. Connect:
PINK WIRE (positive) ---------->pin A
BLACK WIRE (negative) ---------- >pin B
GRAY WIRE (positive) ---------- >pin C
DRAIN WIRE (GND) ---------- >pin D
BLUE WIRE (negative) ---------- >pin E
10. Slide the connector locking ring forward over the connector as far as
possible.
11. Screw the backshell onto the connector and tighten.
12. Gently, slide the cable clamp over the folded back braided shield and
screw the clamp onto the backshell. Do not twist the connector; twist
the cable clamp.
13. Tighten down both cable clamps uniformly. Trim off excess braided
shield.
Terminate SDC and XSDC Connections
The following procedures can be used to terminate the variable length SDC
or XSDC cable. You will need the 78599AI Option J52 kit. From this kit,
use the supplied light gray, male connector.
1. Measure and cut the open end of the SDC or XSDC cable to the desired
length. Leave at least 0.3 meters (1 ft.) overrun to facilitate termination
and instrument servicing.

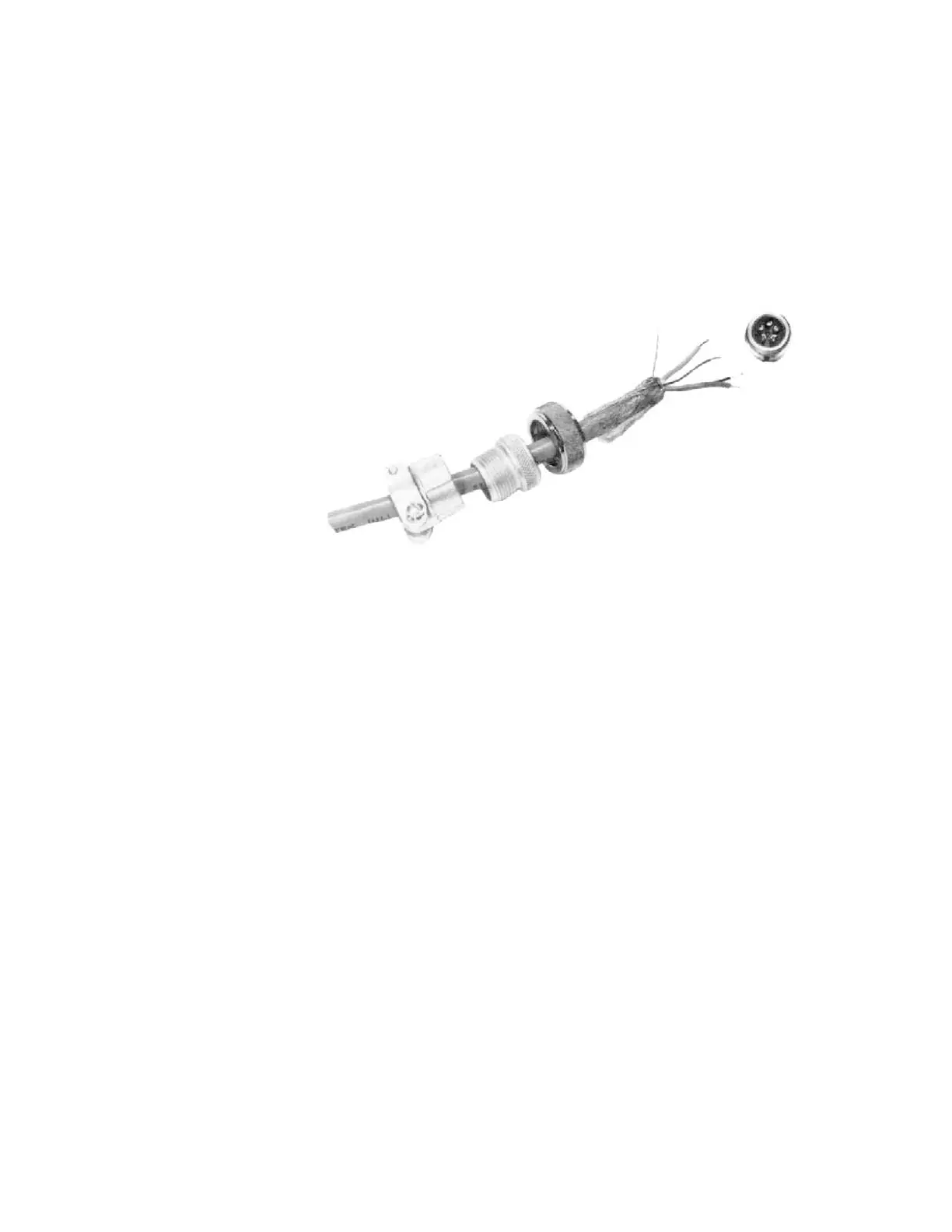

2. Insert the open end of the cable through the connector hardware as
illustrated in the previous figure.
3. Strip off approximately 2.5 cm (1 in.) of insulation from the cable end
exposing the braided shield.
4. Use care not to cut or damage the braided shield.
5. Unbraid and peel back the braided shield. Separate the drain/ground
wires from the shield and twist together. Fold back the braided shield
over the cable insulation.
6. Cut off the foil and filler strips from the cable end.
