Installation Responsibilities—Customer and Agilent Technologies
6-2

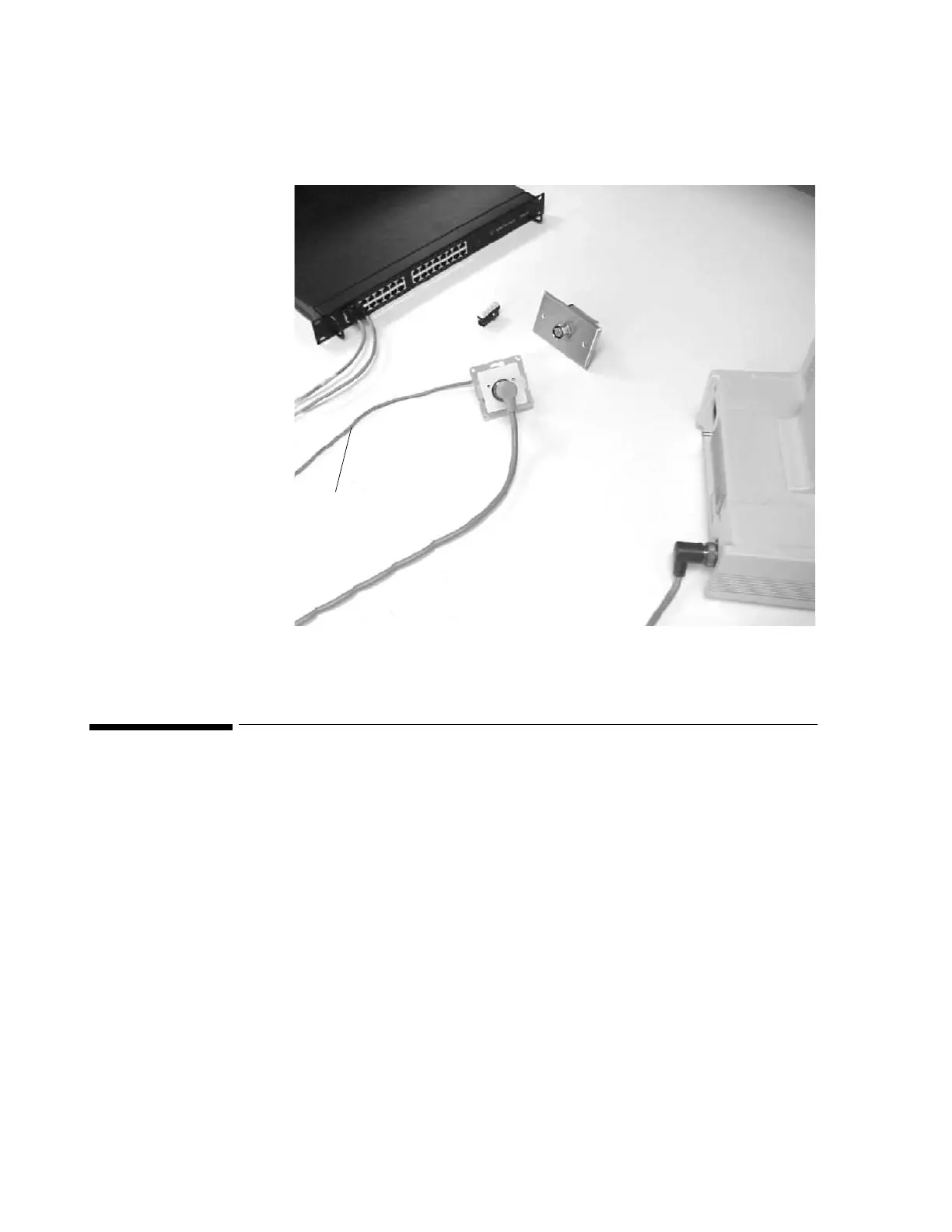

Figure 6-1. Component Parts of a Typical SDN System
Installation Responsibilities—Customer and Agilent Technologies
The site preparation installation responsibilities for installing the
component parts of the SDN are outlined below. Specific details of Agilent
Technologies Customer Engineer’s (CE’s) responsibilities for installation
and verification are given in this section.
Refer to the Site Preparation Check Lists shown on page 7-1 to ensure
proper timing of’ installation requirements and materials.
Customer Installation Responsibilities
• Determine the SDN system configuration (assisted by Agilent
Technologies sales/service personnel).
• Order the Agilent CareNet Controller (ACC), LDCs, LDC connector
kits and faceplates, installation options, and other instruments.
• Choose the installation sites for the ACC and connecting system
instruments.
Branch
Cables
Wall Box
(European)
Wall Box
(USA)
Monitor
Connected
with LDC
110 Edge
Connector
ACC
