128 1260 Infinity Binary LC - System User Guide
6 Appendix
Setting Up a Method using Edit Entire Method
Instrument Curves Tab

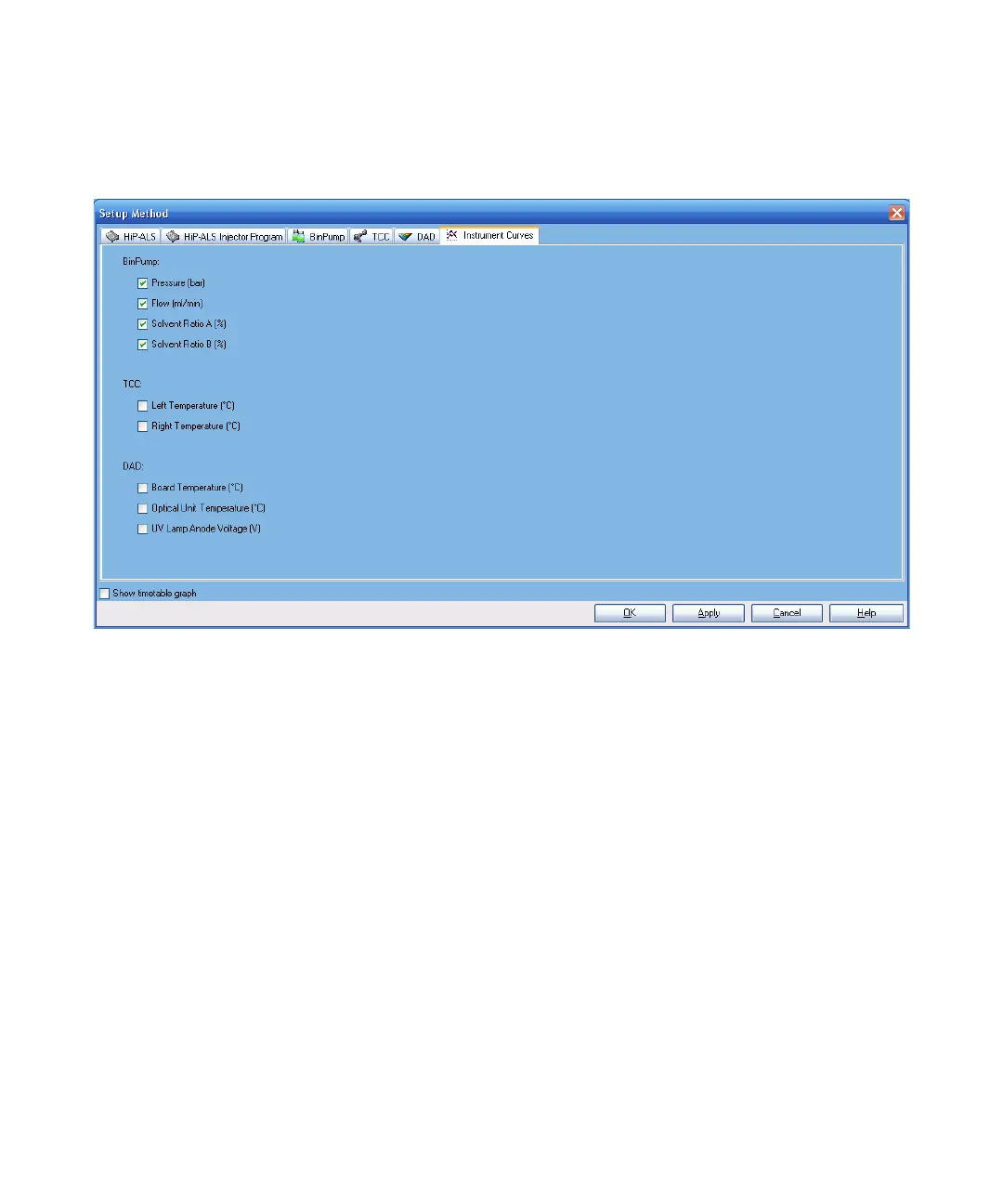

Figure 30 Setup Method screen – Instrument Curves tab
The instrument curves tab allows monitored data streams other than
detector signals to be stored with the data by checking the relevant box.
These are primarily used for diagnostic purposes. They are:
• Pump:
• Pressure
• Flow
• A/B Composition — can be useful for overlaying the gradient profile
on a chromatogram.
• Thermostatted Column Compartment:
• Left/Right temperature
• Detector:
• Board temperature
• Optical unit temperature
• UV lamp anode voltage
