How to Measure Power Power Measurement
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 97

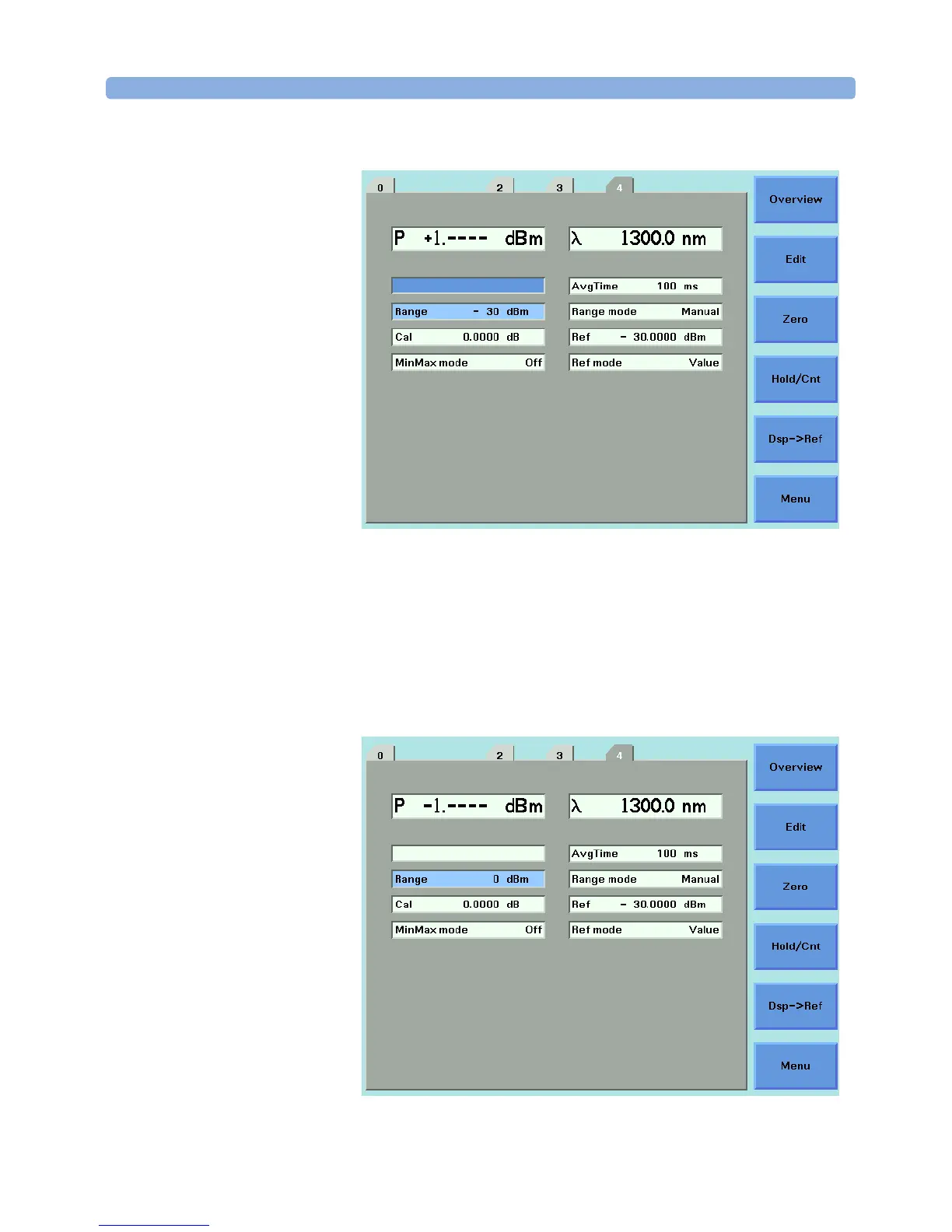

Figure 49 Out of Range - Power Greater Than Upper Power Limit
If the measured power is more than 40 dBm less than the range setting, it
is impossible for power to be displayed. The power value, -1.--- dBm, as
shown in Figure 50 , is shown. This means that the measured power is
greater than the resolution at this [Range] value. You must increase the
[Range] value.
See Table 9 on page 99 for more details.
Figure 50 Out of Range - Power Less Than Resolution
