Introduction
Agilent Cary 60 Spectrophotometer User’s Guide 33
Connections

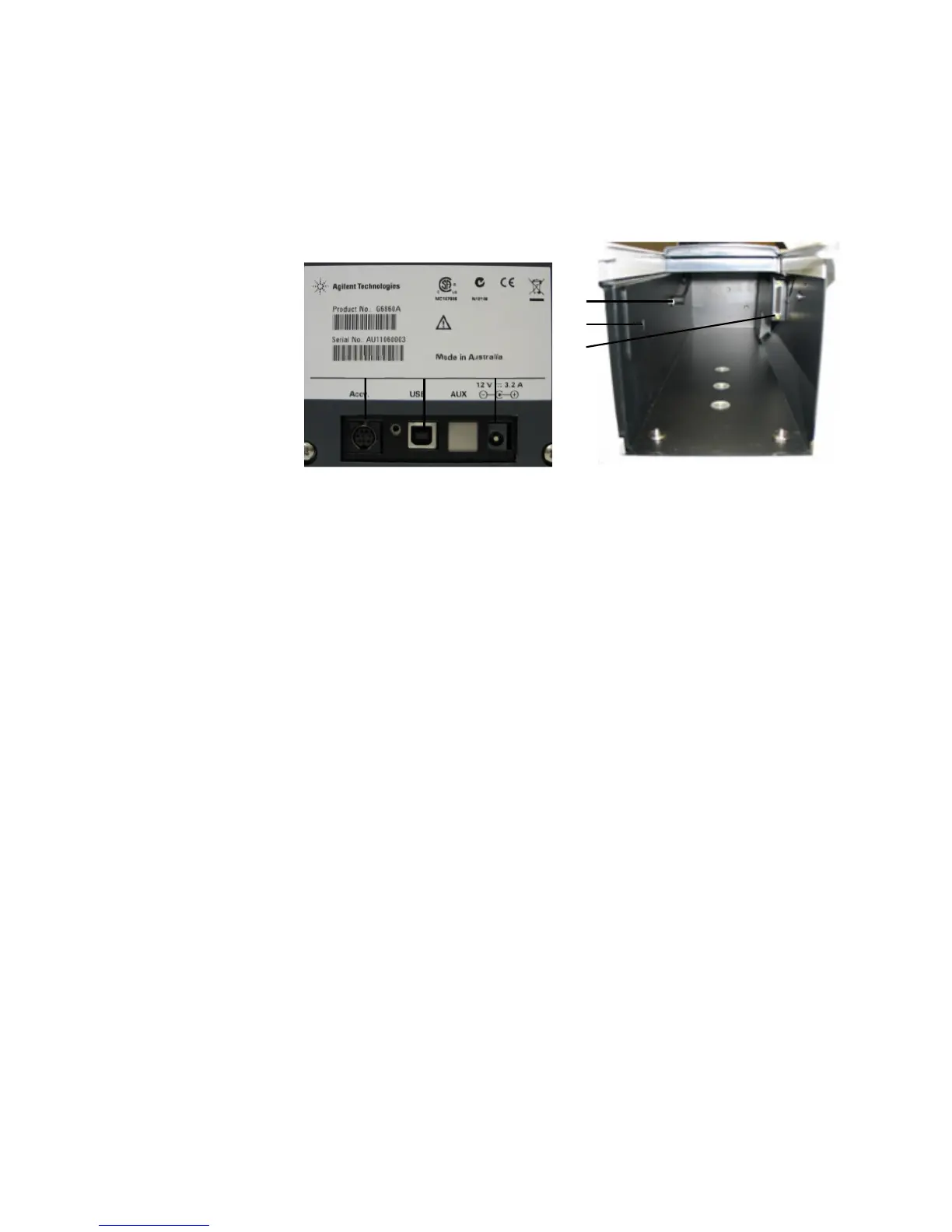

Figure 6. Back and sample compartment connectors
Where:
1 8-pin Mini Din socket at the back of the instrument for
accessories
2 USB Type B connector at the back of the instrument for
connection to the computer (2 on Figure 4)
3 5.5/2.5 mm power jack at the back of the instrument for the 12 V
power supply (3 on Figure 4)
4 8-pin DIN connector in the left side of the sample compartment
for the diode detector (4 on Figure 4)
5 3.5 mm phono jack socket in the left side of the sample
compartment for accessories (5 on Figure 4)
6 25-pin D-range connector in the right side of the sample
compartment for accessories (6 on Figure 4)
Using the Software
For information on how to use the software, please see the Cary 60
Tutorial and the Cary WinUV Help installed on your computer during
the Cary WinUV software installation.
