Agilent Technologies G1367A

Parts and Materials 5
1100 Series WS MWS Reference Manual 181

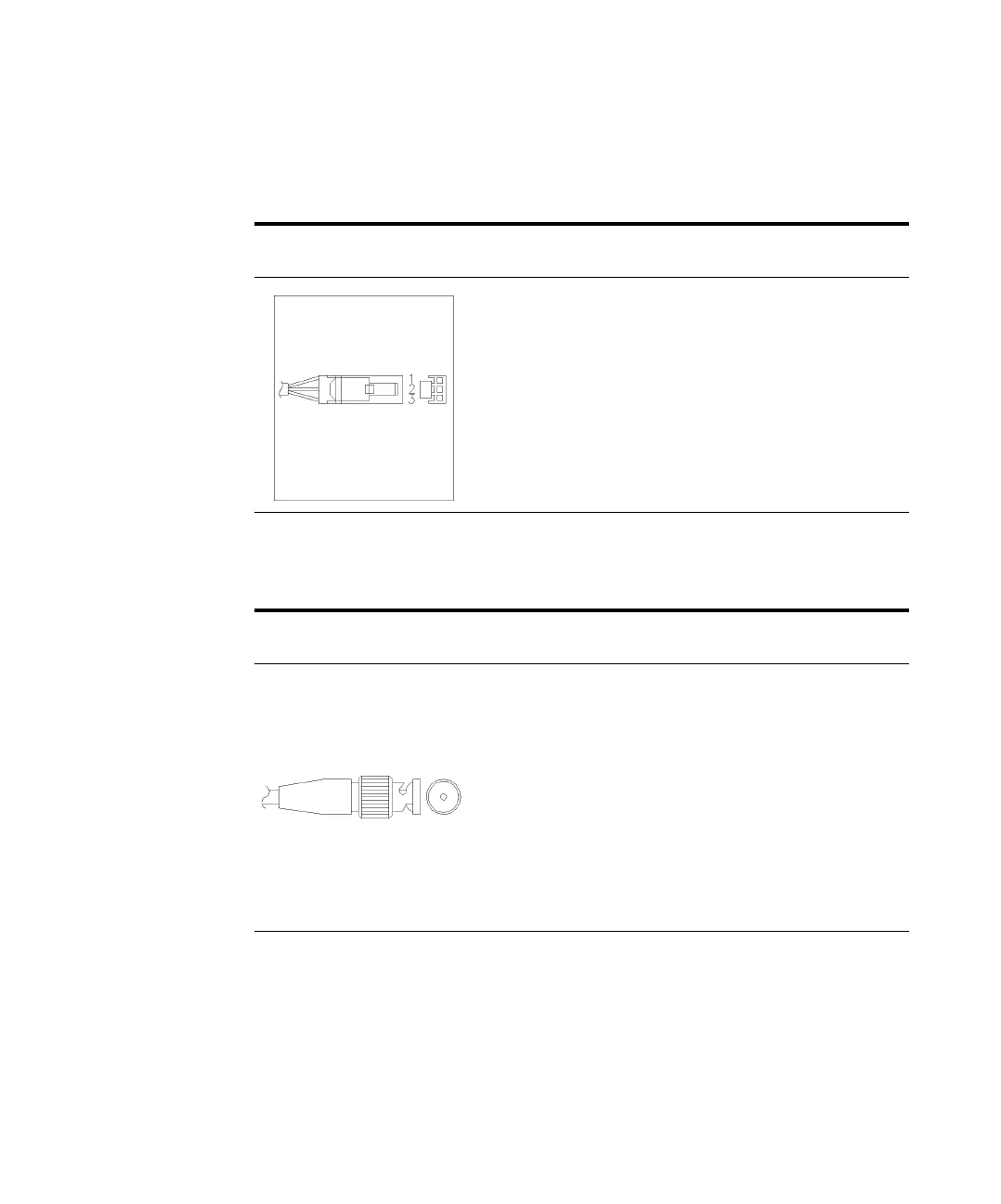

Tabl e 38 Agilent 1100 to 3394/6 Integrators
Connector
35900-60750
Pin
3394/6
Pin
Agilent 1100
Signal Name
1 Not connected
2 Shield Analog -
3CenterAnalog +
Tabl e 39 Agilent 1100 to BNC Connector
Connector
8120-1840
Pin
BNC
Pin
Agilent 1100
Signal Name
Shield Shield Analog -
Center Center Analog +
