Auxiliary Cable

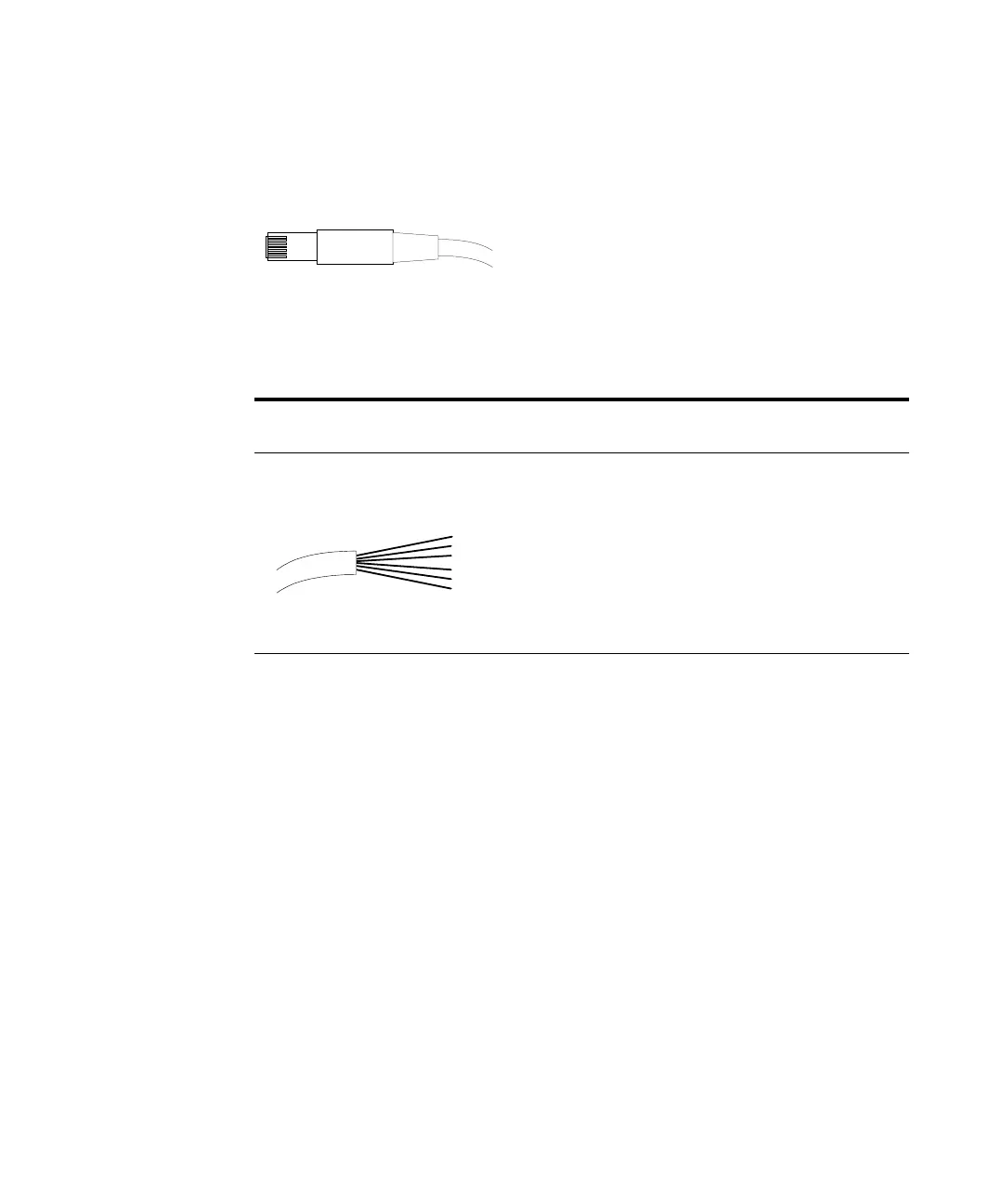

One end of this cable provides a modular plug to be connected to the
Agilent 1100 Series vacuum degasser. The other end is for general purpose.
Tabl e 52 Agilent 1100 Series Degasser to general purposes
Connector
G1322-81600
Color Pin
Agilent 1100
Signal Name
White 1 Ground
Brown 2 Pressure signal
Green 3
Ye ll ow 4
Grey 5 DC + 5 V IN
Pink 6 Vent
