5 Parts and Materials
RS-232 Cable Kit
This kit contains a 9-pin female to 9-pin female Null Modem (printer) cable
and one adapter. Use the cable and adapter to connect Agilent Technologies
instruments with 9-pin male RS-232 connectors to most PCs or printers.

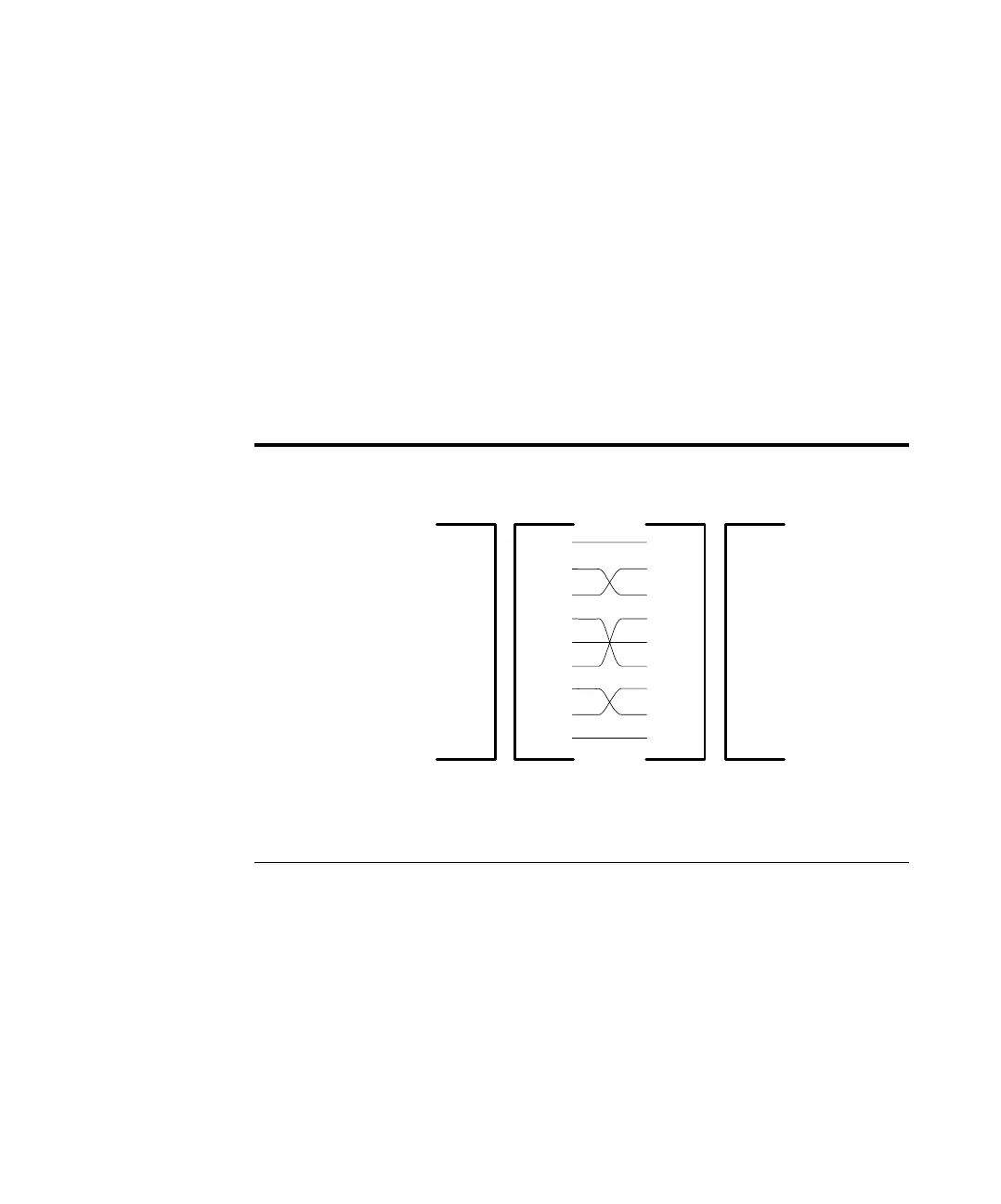

Agilent 1100 module to PC
RS-232 Cable Kit 34398A
Table 55
Instrument
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
PC
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
DB9
Male
DB9
Female
DB9
Female
DB9
Male
