5 Parts and Materials
Analog Cables
One end of these cables provides a BNC connector to be connected to
Agilent 1100 Series modules. The other end depends on the instrument to
which connection is being made.

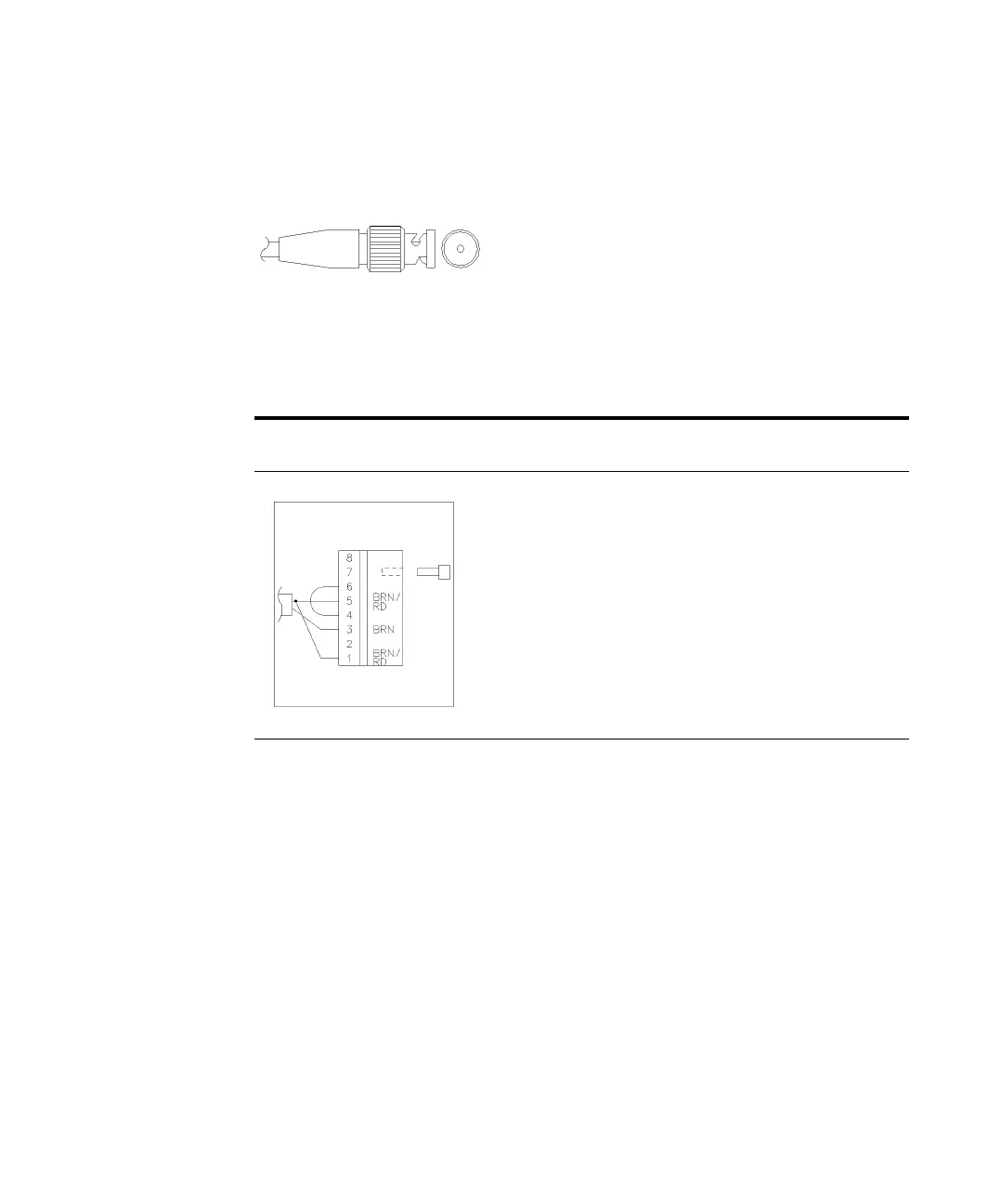

Tabl e 37 Agilent 1100 to 3390/2/3 Integrators
Connector
01040-60101
Pin
3390/2/3
Pin
Agilent 1100
Signal Name
1ShieldGround
2 Not connected
3 Center Signal +
4 Connected to pin 6
5 Shield Analog -
6 Connected to pin 4
7Key
8 Not connected
