Agilent Technologies G1367A

184 1100 Series WS MWS Reference Manual
5 Parts and Materials

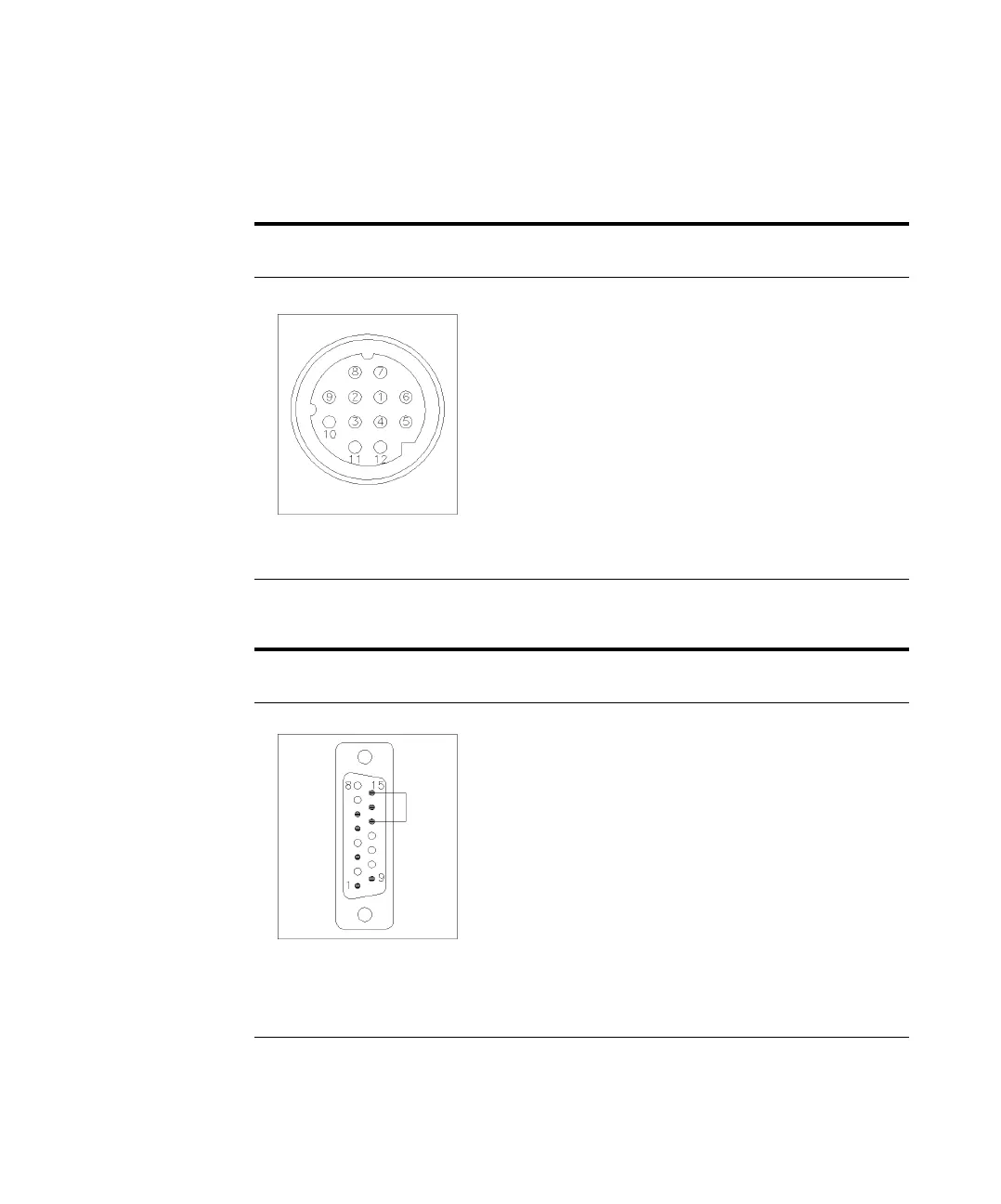

Tabl e 42 Agilent 1100 to 3392/3 Integrators
Connector
01046-60206
Pin
3392/3
Pin
Agilent 1100
Signal Name Active
(TTL)
3 1 - White Digital ground
NC 2 - Brown Prepare run Low
11 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
9 7 - Red Ready High
1 8 - Green Stop Low
NC 9 - Black Start request Low
Tabl e 43 Agilent 1100 to 3394 Integrators
Connector
01046-60210
Pin
3394
Pin
Agilent 1100
Signal Name Active
(TTL)
9 1 - White Digital ground
NC 2 - Brown Prepare run Low
3 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
5,14 7 - Red Ready High
6 8 - Green Stop Low
19 - BlackStart requestLow
13, 15 Not connected
4 - Key
