Control Module Screens of the Well-plate Samplers 8
1100 Series WS MWS Reference Manual 245

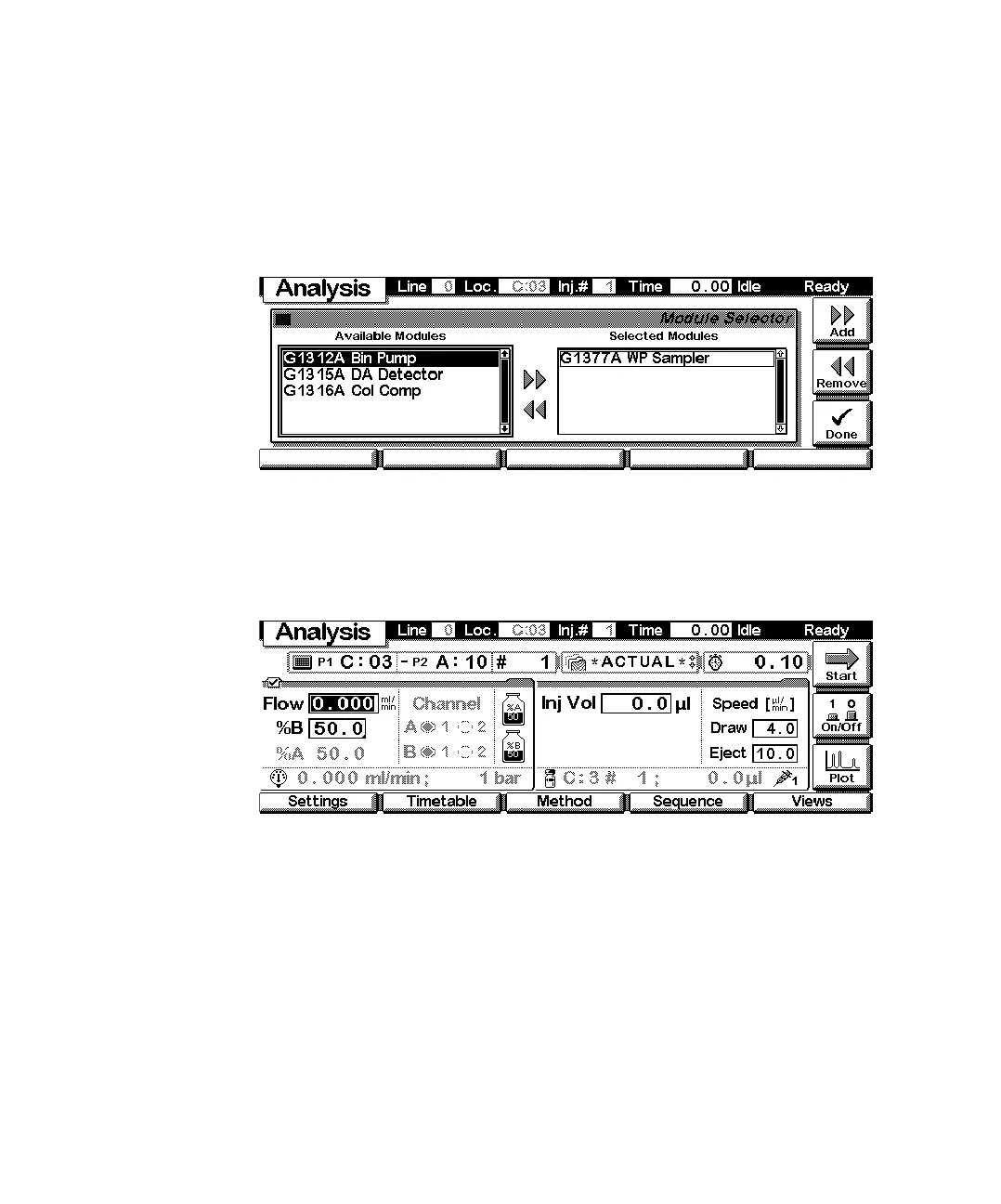

In the Setup view, modules can be added or removed to the analysis view.
Select a module, you want to move, with the help of the selection-keys. Use
function keys F7/F8 (Remove/Add) to move the highlighted module. Changes
must be activated with Done (F6).
Here, e.g. the binary pump parameters are shown on the display as well. The
number of parameters for each module is reduced as additional modules are
added to the display. A maximum of 4 modules can be shown simultaneously.
If more modules are connected to the system, you have to choose 4 of them in
Setup view.
