Control Module Screens of the Well-plate Samplers 8
1100 Series WS MWS Reference Manual 255

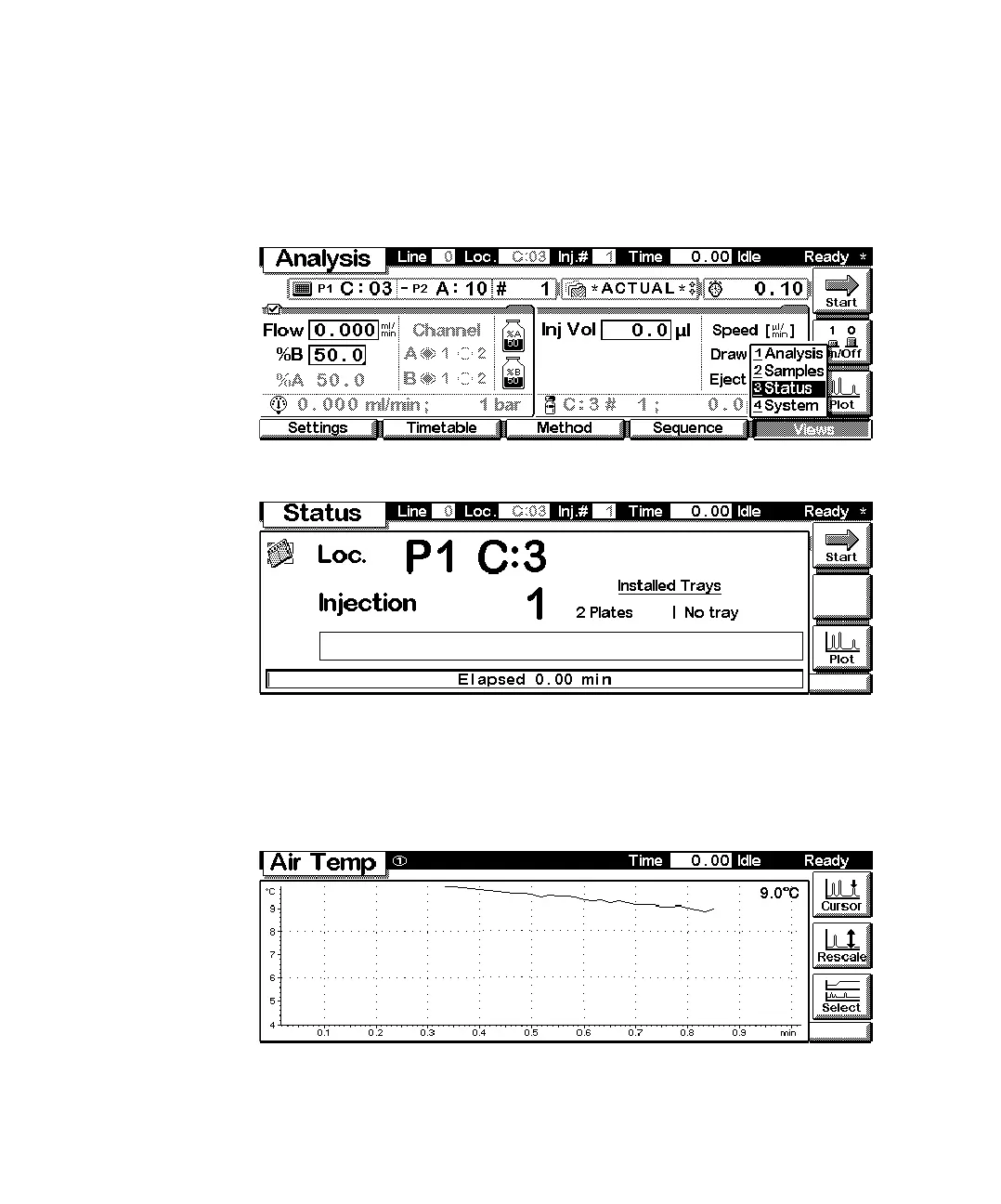

Status
From the Analysis View press the F5-key (Views) and select Status.
This is an example if an Agilent 1100 WPS is configured stand-alone.
Signal plot
Press F6-key (Plot) to enter the plot screen (available also from all other
screens). Here you can observe the on-line signal(s). If more than one signal is
configured, use the 1-2-3 alphanumeric keys to switch between the signals.
