G1369C LAN Interface User Manual 35
Getting Started 2
Automatic Configuration with Bootp

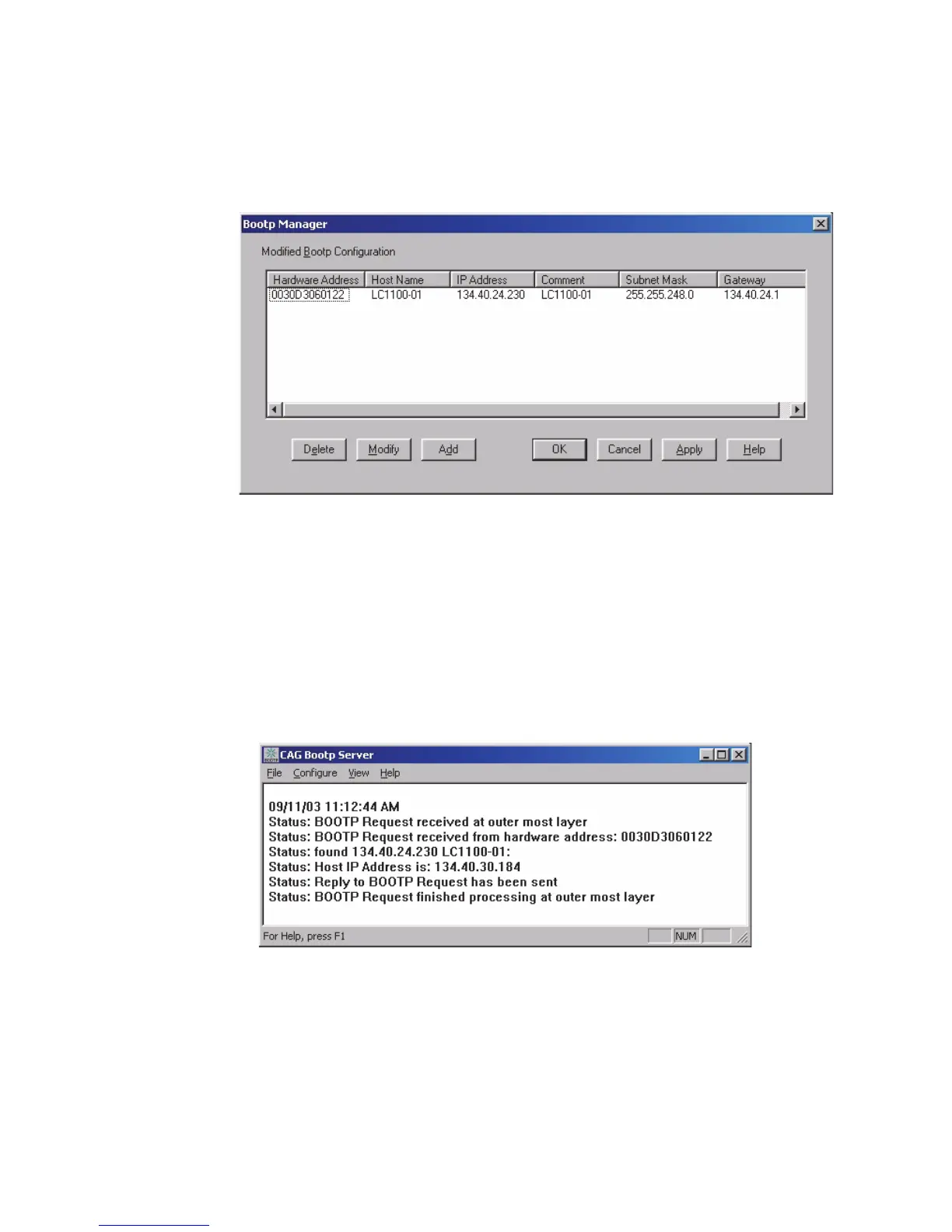

Figure 23 Bootp Manager
9 Press Apply to activate the changes.
10 Press OK to exit the Bootp Manager and power cycle the instrument
with the LAN Interface Card, to force it to send a new bootp request
again. This time, the MAC address will be recognized by the Bootp
Server (Figure 24). It will send the configured IP address and subnet
mask information which are necessary for communication to the LAN
Interface Card.
Figure 24 Bootp Server - module found
