G1369C LAN Interface User Manual 41
Getting Started 2
Manual Configuration
4 Use the “/” and press Enter to list the current settings.

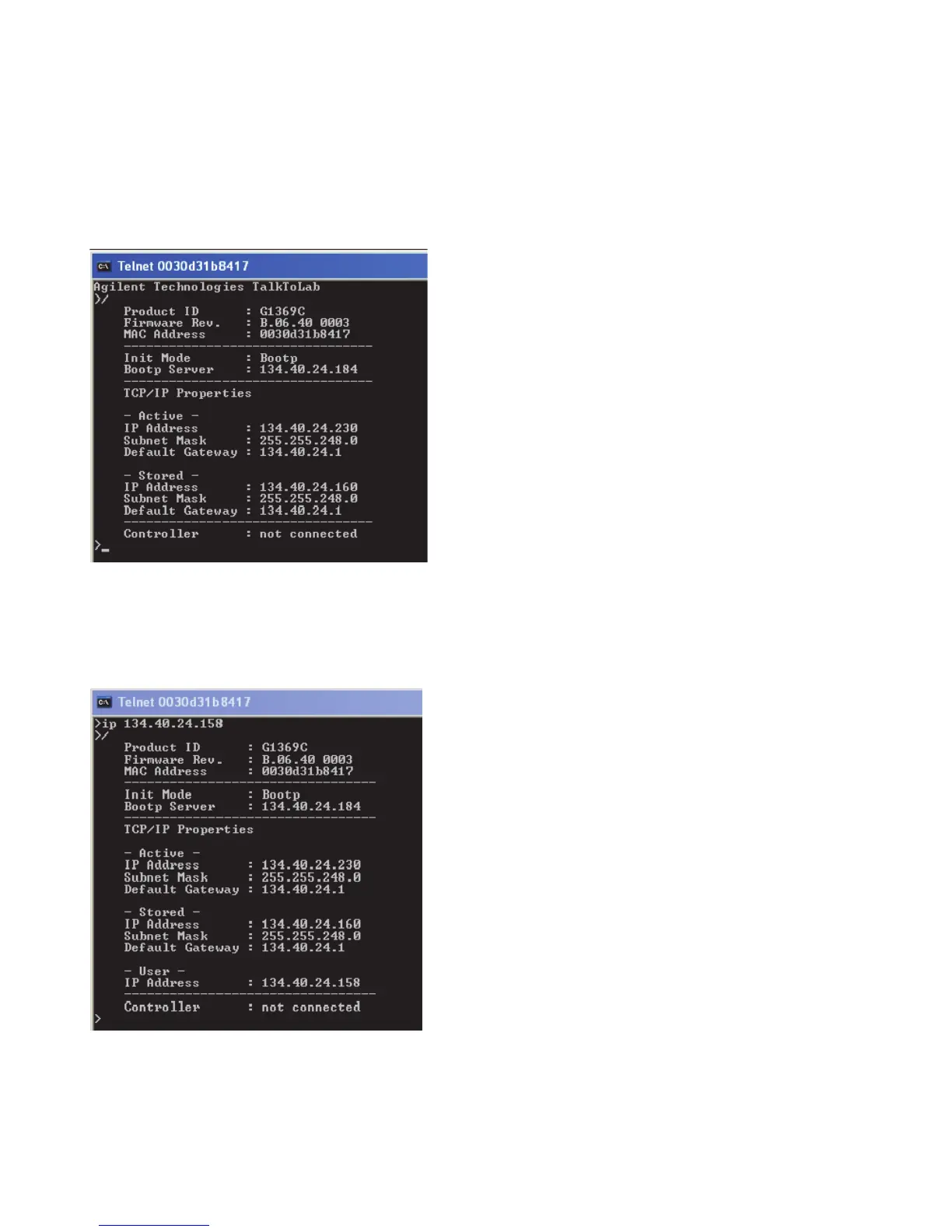

Figure 28 Telnet - Current settings in Bootp mode
5 Change the IP address (in this example 134.40.24.158) and type “/” to
list current settings.
Figure 29 Telnet - Change IP settings
information about the card
Product id, firmware revision (A.xx.xx are released
versions), MAC address, initialization mode
stored TCP/IP settings in non-volatile memory (not
visible if equal to active TCP/IP settings)
active TCP/IP settings
connected to PC with controller software (e.g. Agilent
ChemStation), here not connected
Initialization mode is Bootp
The connected PC/Bootserver is 134.40.24.184
change of TCP/IP setting
last user change (not active yet, requires mode “Using
Stored” and re-start)
stored TCP/IP settings in non-volatile memory
active TCP/IP settings
Initialization mode is Bootp
The connected PC/Bootserver is 134.40.24.184
