Technical Information
MS120 Single Stage Rotary Vane Pumps User Manual / 87-900-150-01(B) 173/198

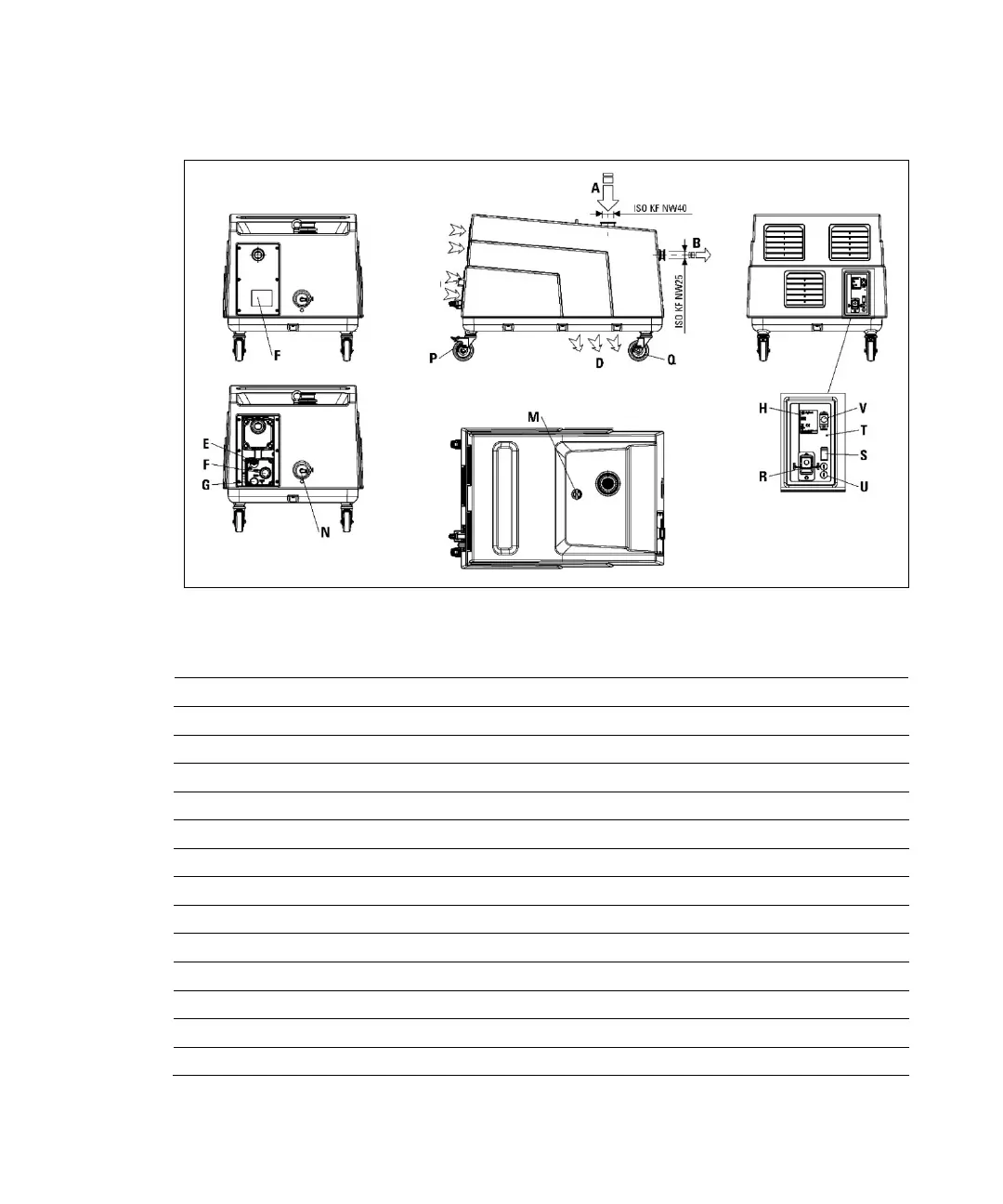

Figure 20 MS120 Single Stage Rotary Vane Pumps layout
Identification of components
Reference (Figure 20) Component
A Inlet
B Exhaust
C Cooling air inlet
D Cooling air outlet
E Oil filling plug
F Oil level sight glass
G Oil drain (with extension)
H Pump name plate
M Lifting eyebolt
N Gas ballast valve (ON-OFF)
P Swivel caster with brake
Q Swivel caster
R Mains
C
