Modulation Accuracy (Composite EVM) Measurements
Configuring the Measurement System
Units with option BBA can also make Baseband I+jQ measurements.
Connect the equipment as shown.

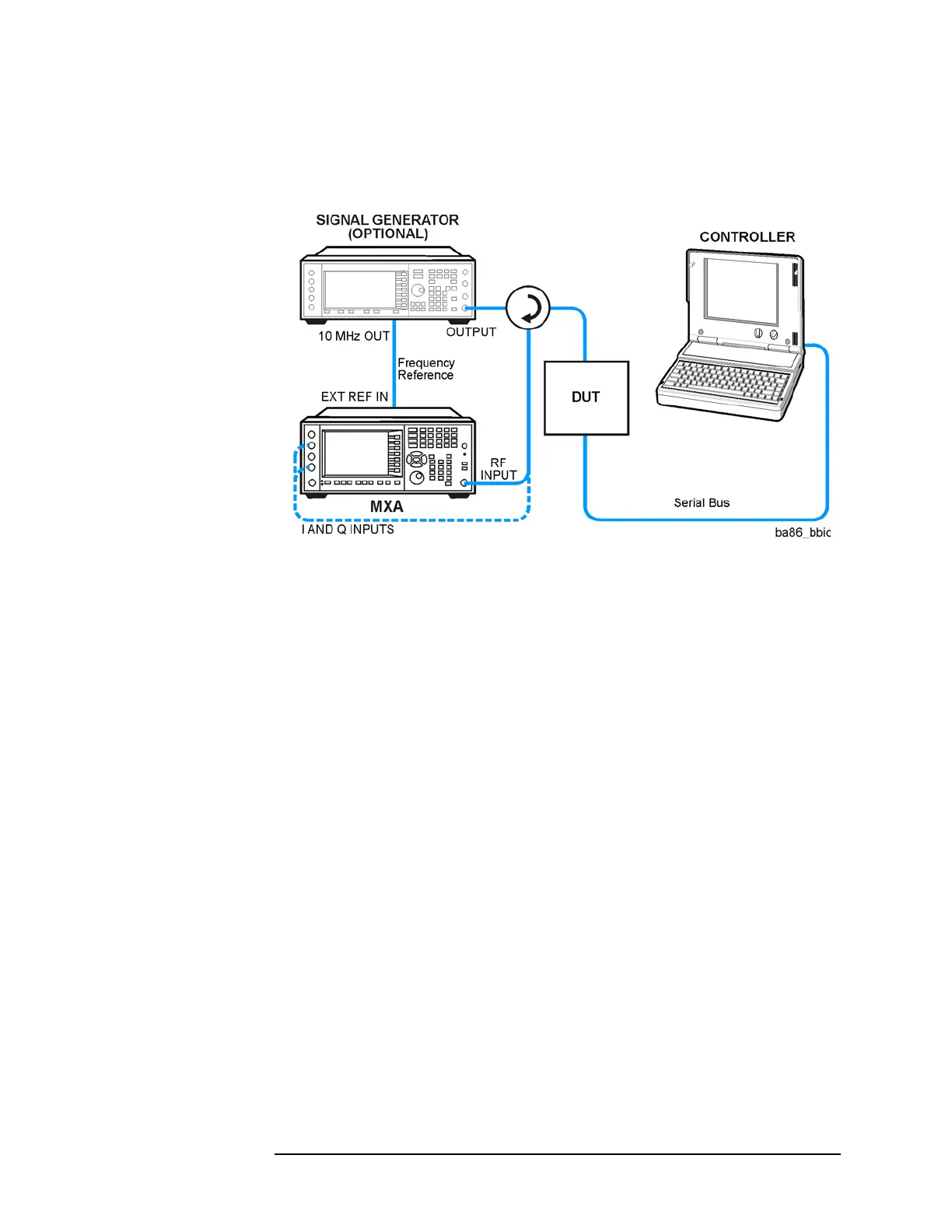

Figure 9-2 Code Domain Power Measurement System—Baseband
