Modulation Accuracy (Composite EVM) Measurements
Measurement Results

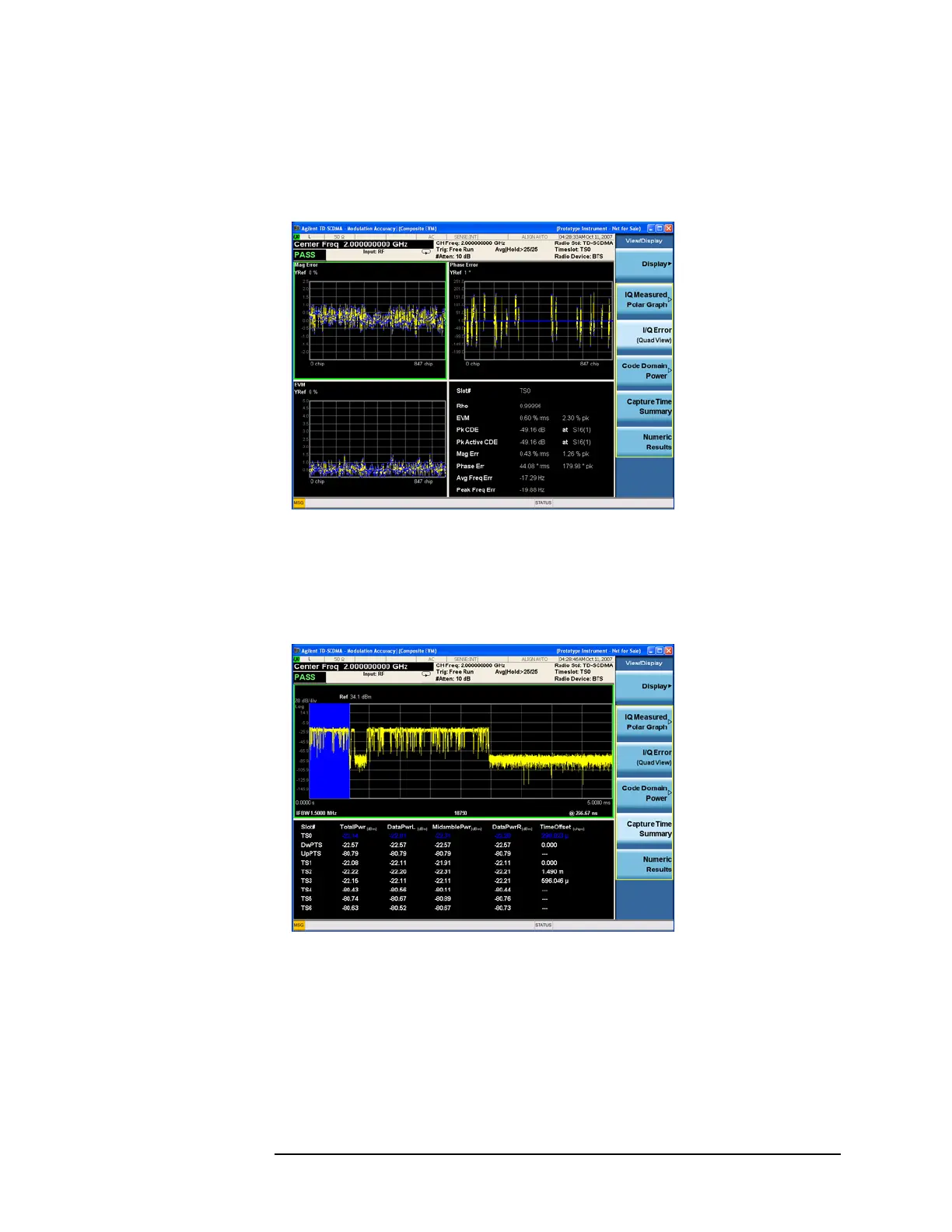

Figure 9-5 shows a combination view of the magnitude error, phase
error, and EVM graph windows.
Figure 9-5 Modulation Accuracy Measurement - I/Q Error View
Figure 9-6 shows a combination view of the captured data trace and
metrics windows.
Figure 9-6 Modulation Accuracy Measurement Result - Capture Time
Summary
