Agilent Technologies X3500-64000

17
Technical Information
Connection of the High Vacuum Flange
292/304 TwisTorr 304 FS User Manual / 87-901-027-01

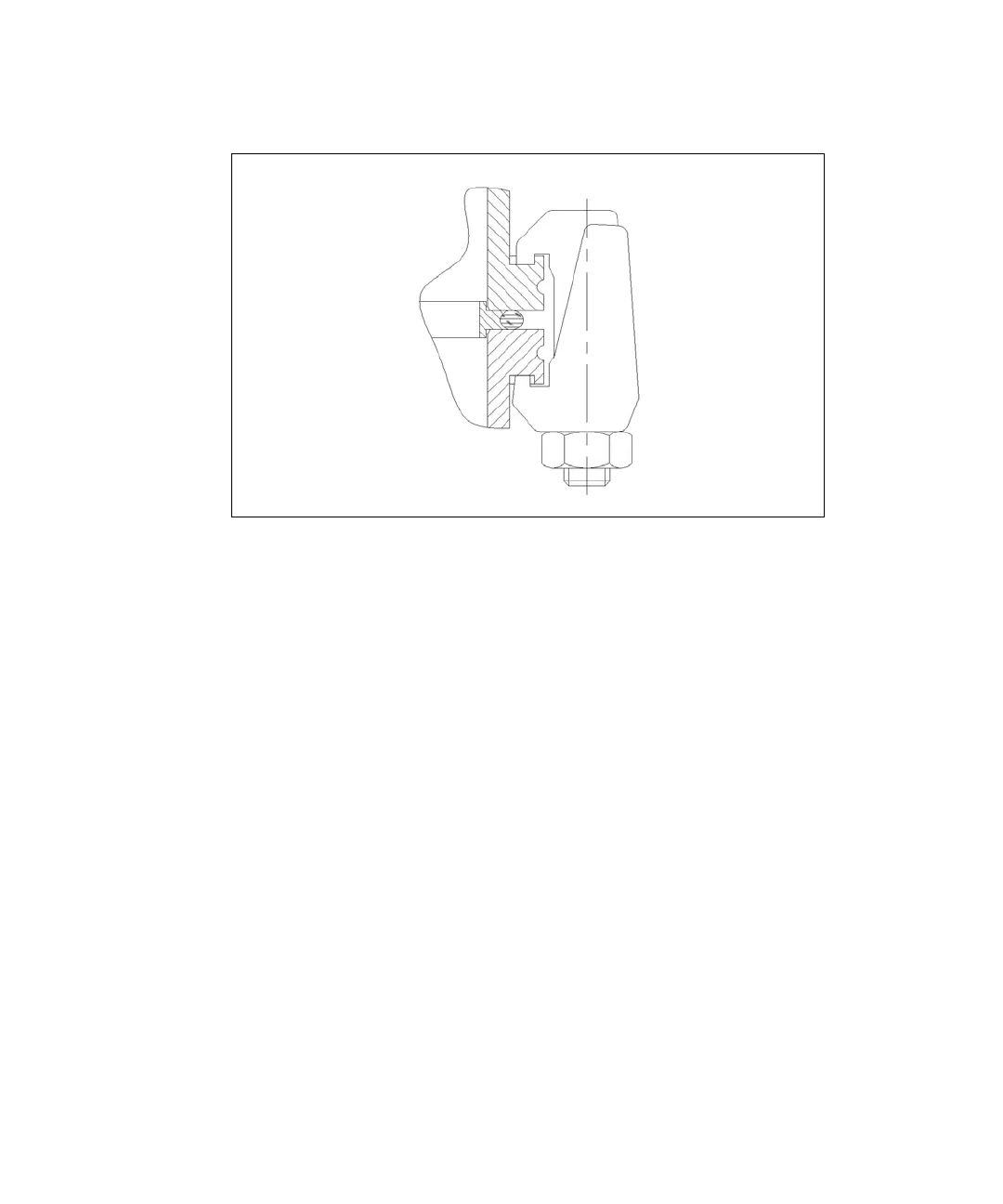

Figure 54
Use the required number of claw clamps:
 4 for ISO 100 flange
 4 for ISO 160 flange
Tighten the claw clamps with a torque of 22 Nm.
Installation of ConFlat Flange
For ConFlat flange connections, fix the two flanges with the screws
as shown in the following figures (a protective screen can optionally
be used).
