Connection of the High Vacuum Flange
17
TwisTorr 304 FS User Manual / 87-901-027-01 293/304

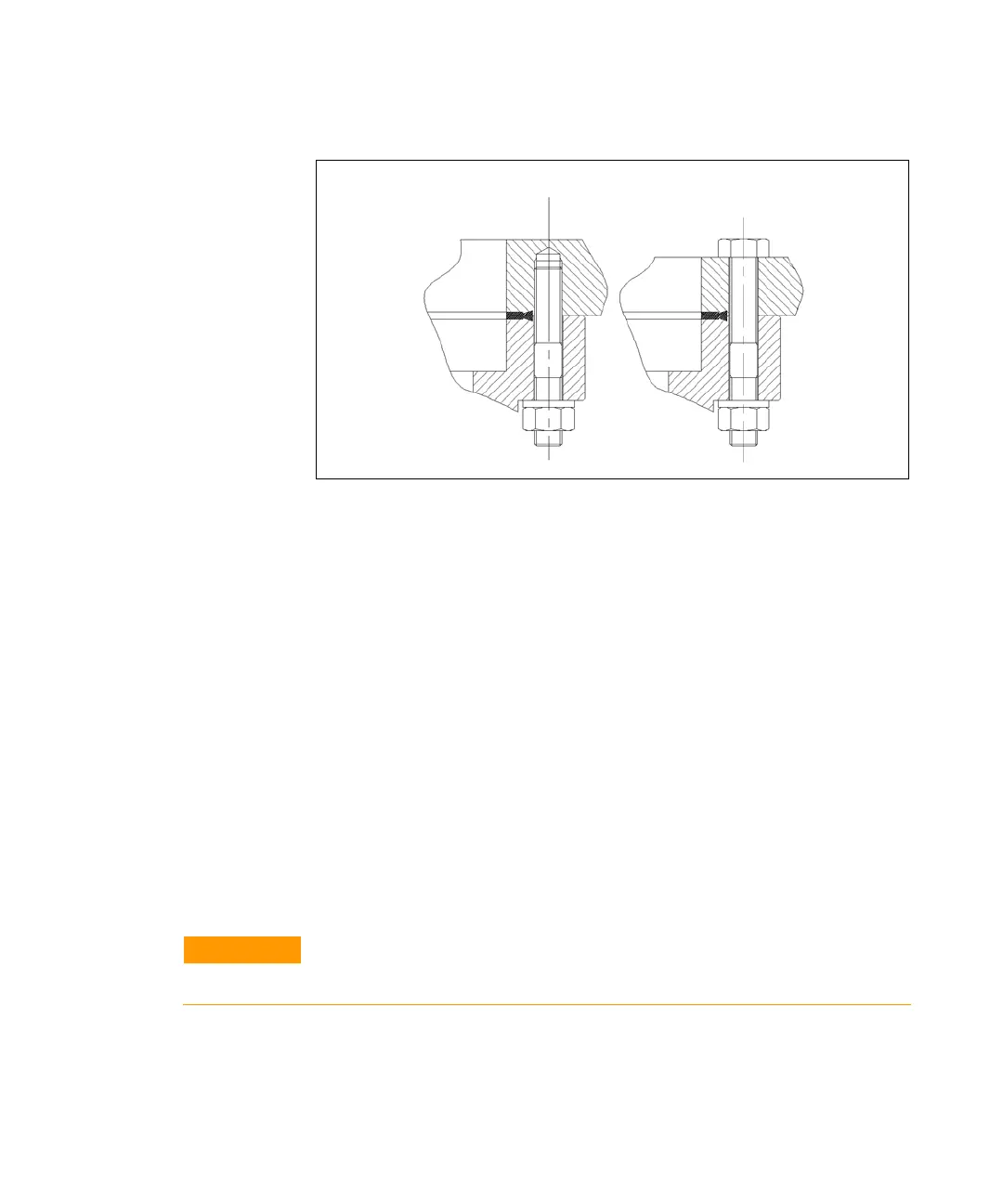

Figure 55
Use the required number of screws:
 16 for CFF 6”
 20 for CFF 8”
Attach the units and tighten each screw in turn. Repeat the
sequential tightening until the flange faces meet. Tighten the screws
with a torque of 20 Nm.
For ConFlat flange connections we recommend using Agilent
hardware.
To facilitate assembly and dismantling, apply Felpro C-100 high
temperature lubricant to the screw threads protruding from the
flange and between the nuts and flange.
Note that, in some cases, the connections can be made only with the
bolt in the lower side.
CAUTION!
Exercise care when tightening nuts and bolts to avoid creating dents in the
envelope as this may cause the pump rotor to lock.
