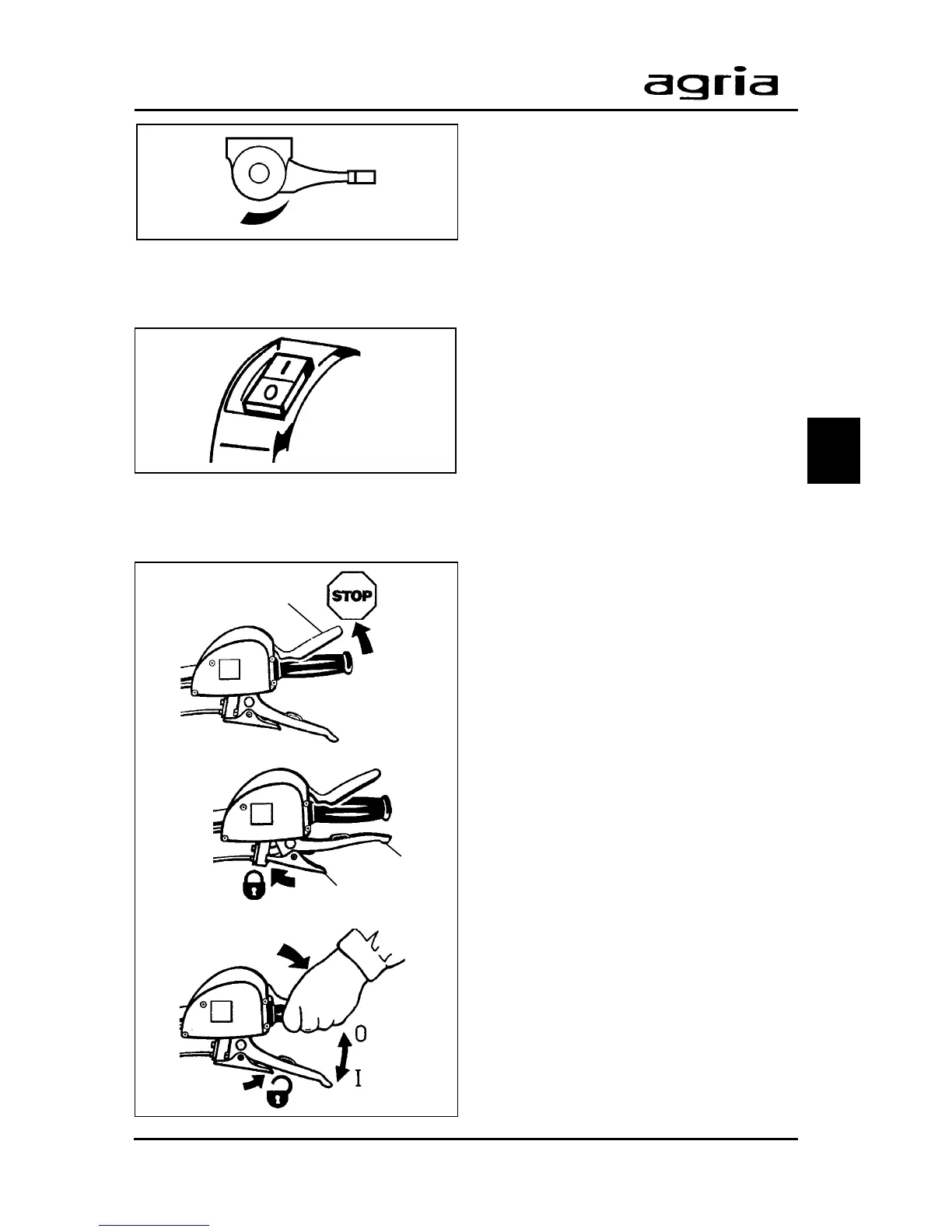

Single-wheel power hoe 2100 15
Speed Control Lever
The speed control lever (C/7) on the
steering handle is for stepless setting of
engine speed from min. = idle to max. =
full throttle.
Engine-off-switch
The single-wheel power hoe is equipped
with an electric off-switch (C/3). On
pressing the switch, the ignition is turned
off (engine is switched off).
Position "I" = Operation
Position "0" = Engine off
I
The engine-off-switch also
serves as emengency-off-
switch. Set the switch to “0” for fast
switch-off.
Safety Circuit
The single-wheel power hoe is equipped
with a safety switch (lever C/4). When
releasing the lever, the ignition system
is turned off (engine is off).
Stop position: When releasing the
lever, the ignition system is switched off
(engine is off). Beware – engine keeps
running due to centrifugal mass.
Start position: For starting the en-
gine and for short breaks, pull the hand
clutch lever (C/5) and fasten with pawl
(C/6).
Operating position: To operate the
machine press safety lever (C/4).
W
Do not fasten safety lever.
I
The safety lever also serves to
switch off in an emergency.
Release the safety lever for fast engine
switch-off. The lever automatically goes
to STOP position.
3. Devices and Operating Elements
3
max
min
C/4
C/5
C/6
