6 Single-wheel power hoe 2100
Instructions for Unpacking
Instructions for
Unpacking and Assembly

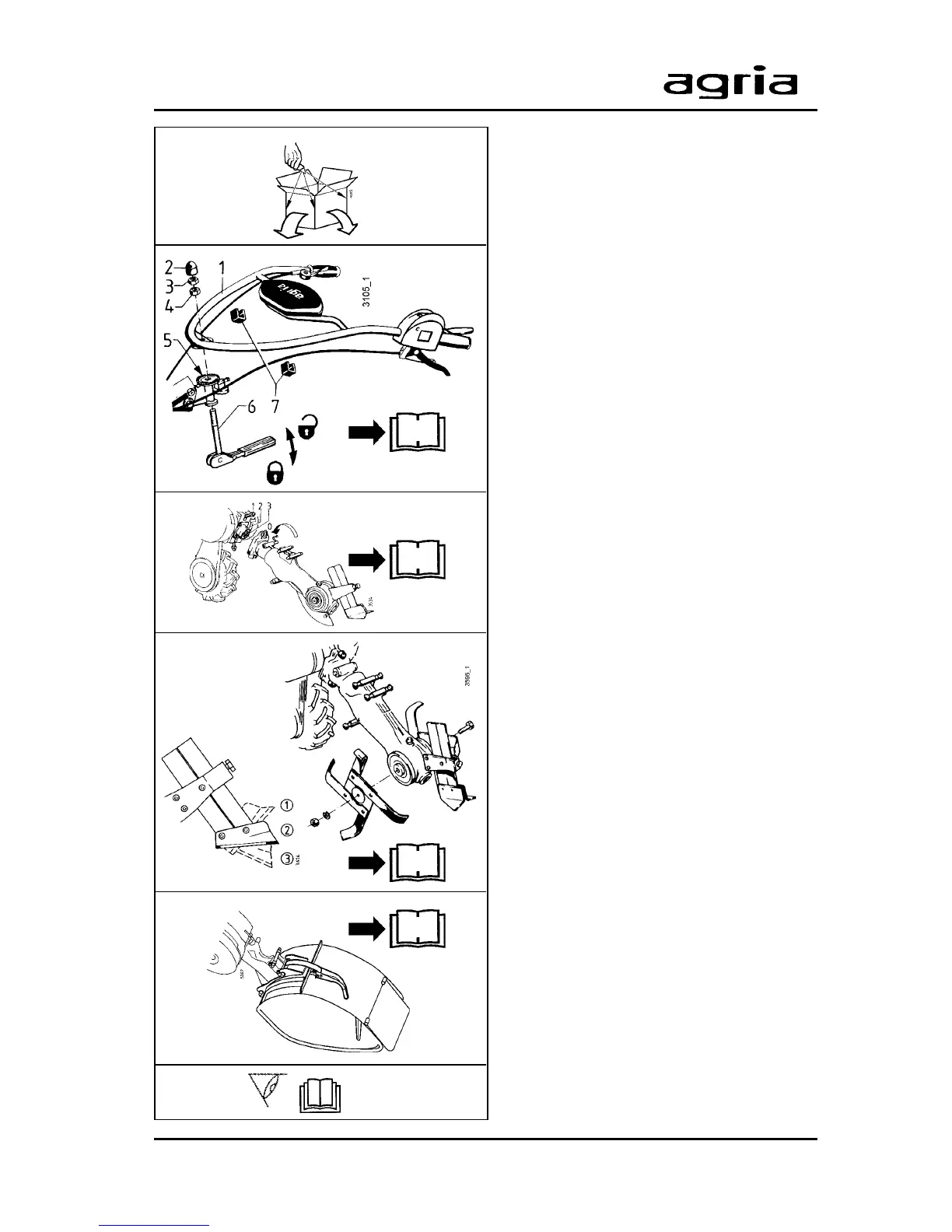

Open top of cardboard box.
Mount handlebar
- Unscrew hexagonal screws (3 + 4).
- Place handlebar (1) onto locking disk
and hold
- make sure that bowden cables and
electric cables are not twisted or
squeezed.
- Insert threaded bolt (6) of tensioning
lever into steering bar joint and han-
dlebar. Push threaded bolt in from be-
low.
- Move tensioning lever to the left and
screw hexagonal nut (4) onto threaded
bolt until hexagonal nut fits into trian-
gular relief on handlebar.
- Move tensioning lever backwards to
centre position and press down (ten-
sion). Now the handlebar must be
firmly jammed with steering bar. If this
is not the case, screw hexagonal nut
(4) further down (for adjusting
tensioning lever, refer to page 34).
- If handlebar jamming is not sufficient,
screw hexagonal nut (3) onto bolt and
lock with hexagonal nut (4).
- Place nut cap (2).
- Fasten bowden cables and electrical lines
with clamps (7) onto handlebar rods.
Mount tilling shaft (refer to page 17).
Mount tilling tools and hoeing skid
(refer to page 18).
Mount protective hood (refer to page
18).
Carry out all steps for starting-up
and Assembly
17
18
34
18
