18 Single-wheel power hoe 2100
3. Devices and Operating Elements
Tilling Tools

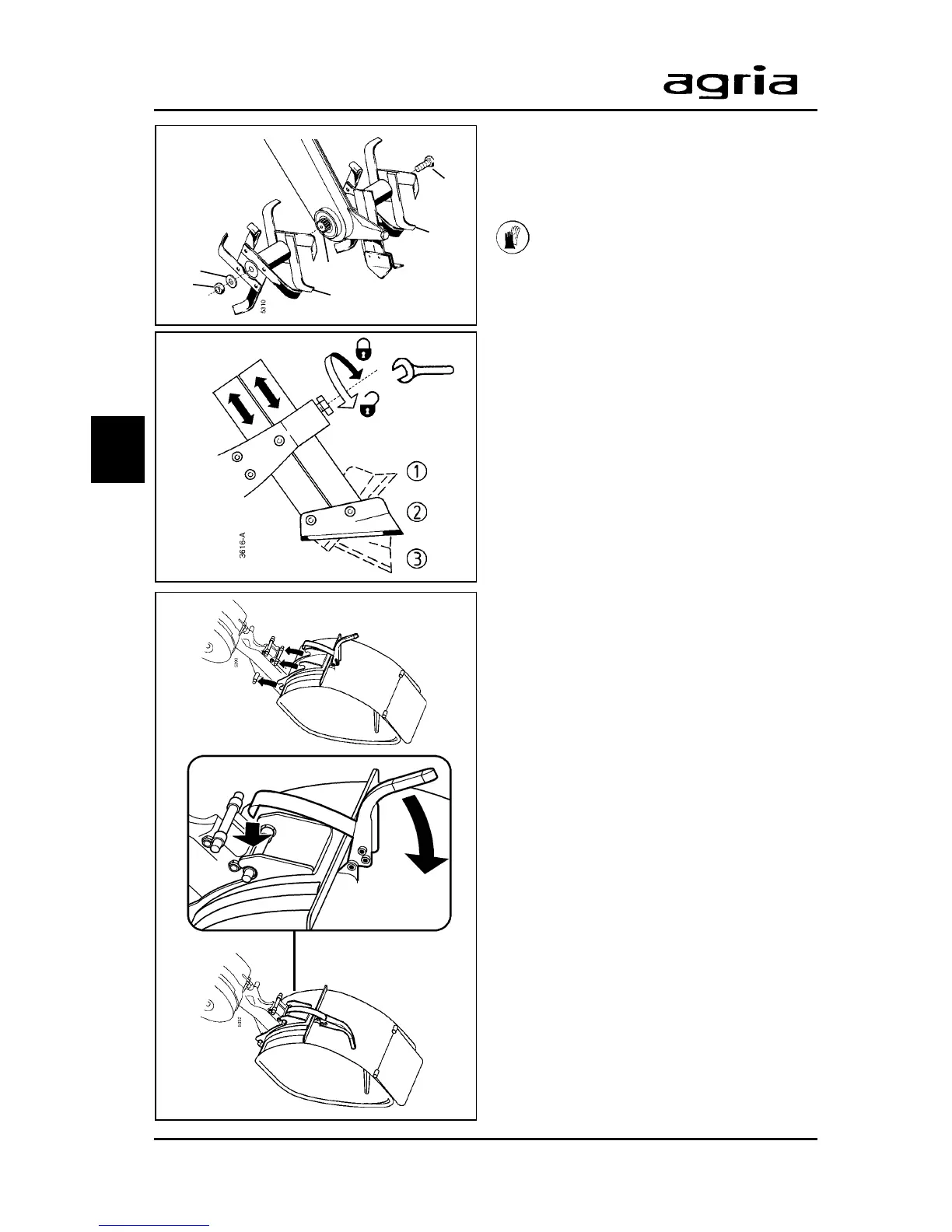

Mounting Tilling Tools
Wear protective gloves.
Mount tilling tools (1 + 2) onto the
tilling shaft (6). Tine blades must point
into rotating direction (forwards). Mount
both tools in such a way that tines of
both tools pointing to the housing are
staggered and not parallel to the tines
on the opposite side.
Insert tensioning screw (3) from right
to left, fit toothed washer (4) and tighten
with hexagonal nut (5).
Hoeing Skid
For heavy soil and coarse tilling:
- adjust tine point to a upward position.
For light soil and fine tilling:
- adjust tine to a horizontal position.
For sandy soils:
- adjust tine point to an downward po-
sition.
W
No tilling without skid!
Protective Hood
Mounting
Slide protective hood with the hook in
hood carriers.
Hang tensioning spring into spike plate
and fold tensioning lever back.
W
No tilling without protective
hood!
3
1
2
3
4
5
6
