Single-wheel power hoe 2100 19
3. Devices and Operating Elements
Drive-Wheels
The single-wheel power hoe has a cen-
trally fitted rubber drive-wheel as stand-
ard equipment.
Mounting Drive-Wheel

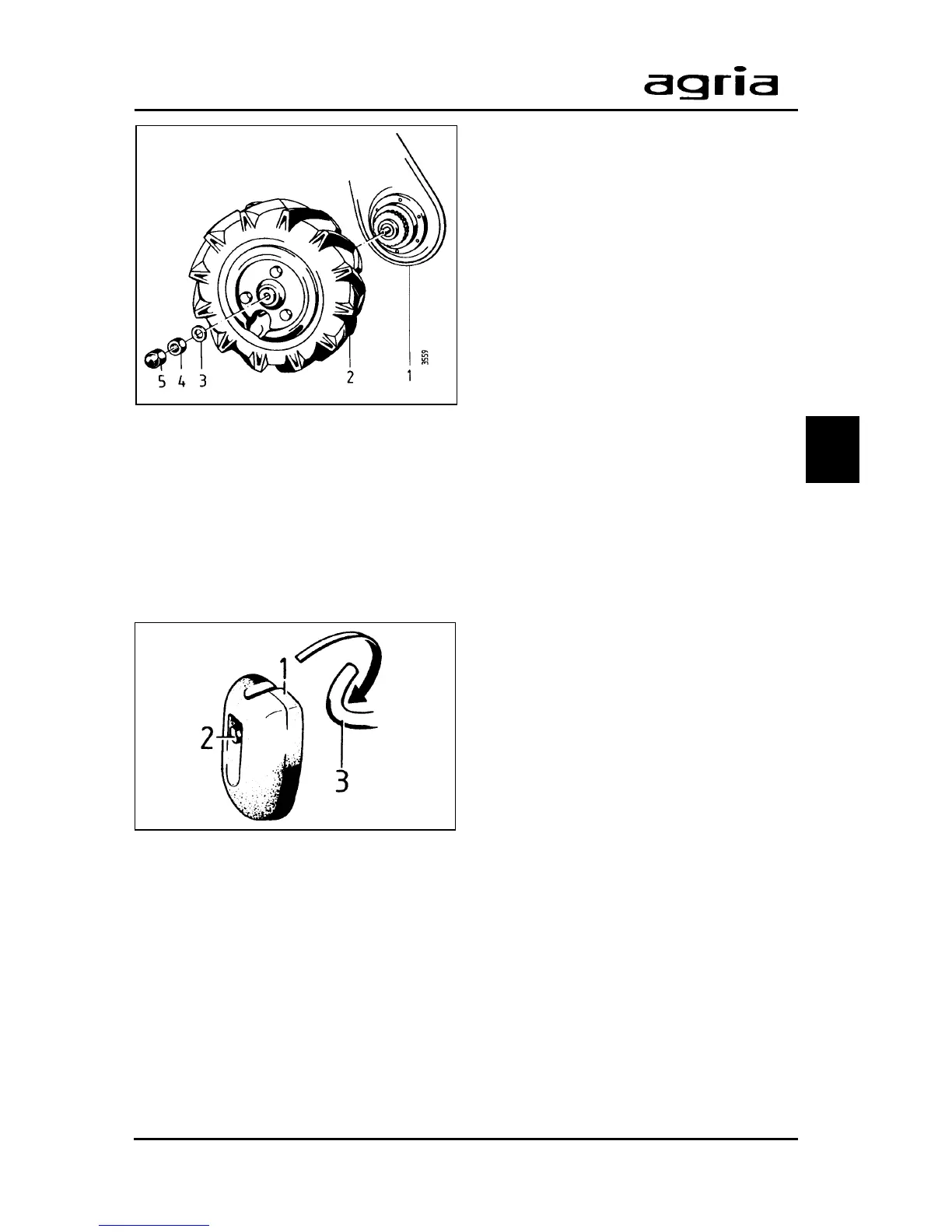

Fit drive-wheel (2) onto shaft end, put
washer (3) onto it and fasten with hex-
agonal nut (4) and cap nut (5).
I
Mount drive-wheel with pointed
parts of lugs showing in travel
direction (forward).
Instead of a rubber drive-wheel you can
also use a cast-iron strake wheel. The
mounting process is the same as for the
rubber drive-wheel.
Front Weight
(Item no. 2128 011)
W
Only mount weight with en-
gine and muffler cooled down
– danger of burns!
Mounting Front Weight
Hook front weight (1) over engine hoop
guard (3) from the front and fasten with
hexagonal screw (2).
