Agria 2100 - Hand Lever Adjustments: Clutch Play

34 Single-wheel power hoe 2100
5. Maintenance
Adjustments on
Hand Levers
Check clutch play or clutch adjustment
each time you operate the machine. If
necessary, re-adjust (especially after
commissioning the machine during
break-in period, and after exchanging
clutch linings).

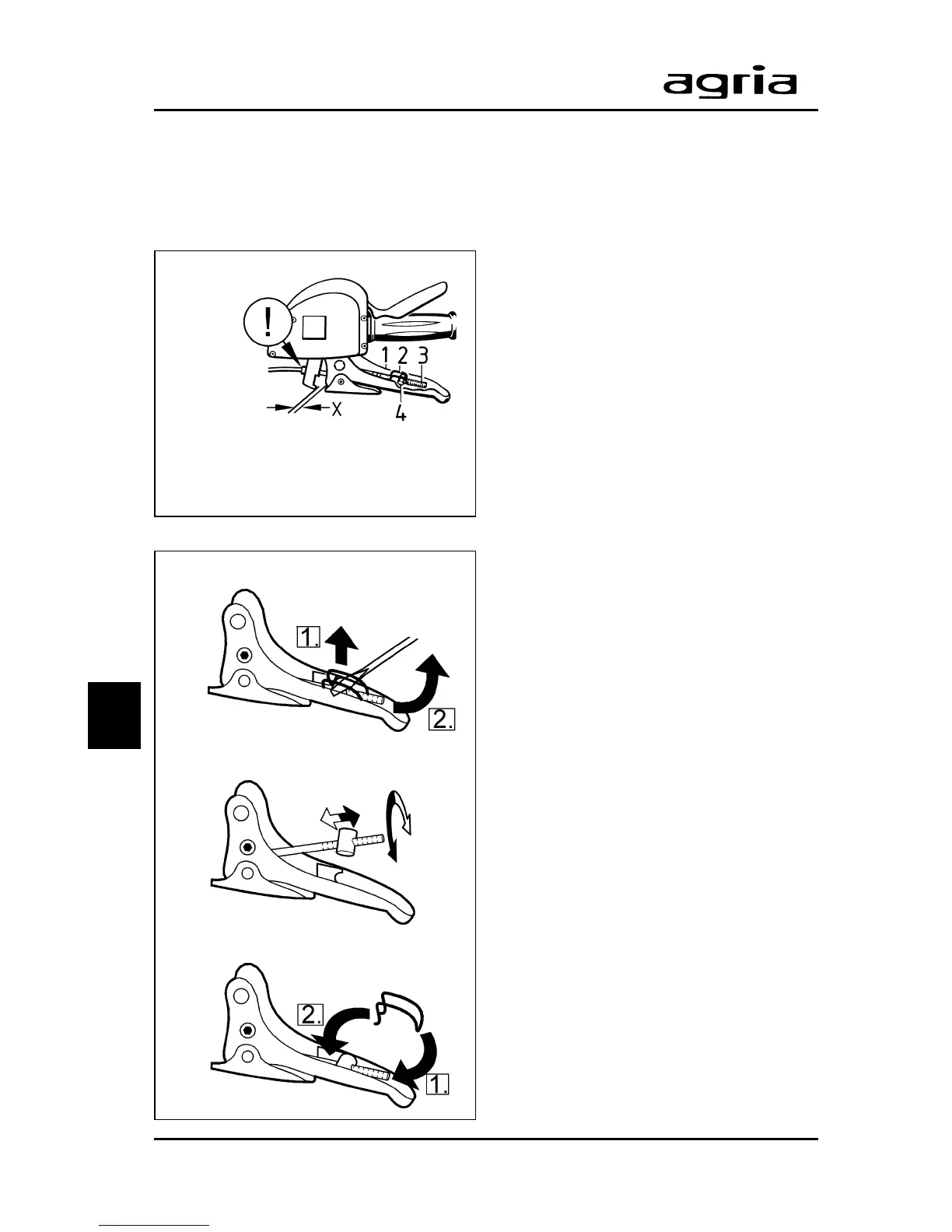

Clutch
x = 3–5 mm (clutch play)
! = The bowden cable must be placed in
the hand lever support on top position!
Adjustment
 Remove retaining spring (2), cable
end (3) and set pin (4) out of bracket in
hand lever.
 Adjust the set pin (4) to a play of X.
Screw set pin in to reduce play, screw
out to increase play.
 Hook the cable end and set pin into
the bracket and fit retaining spring (2).
1 Hand lever
2 Retaining spring
3 Threaded cable end
4 Set pin
