16 Single-wheel power hoe 2100
3. Devices and Operating Elements

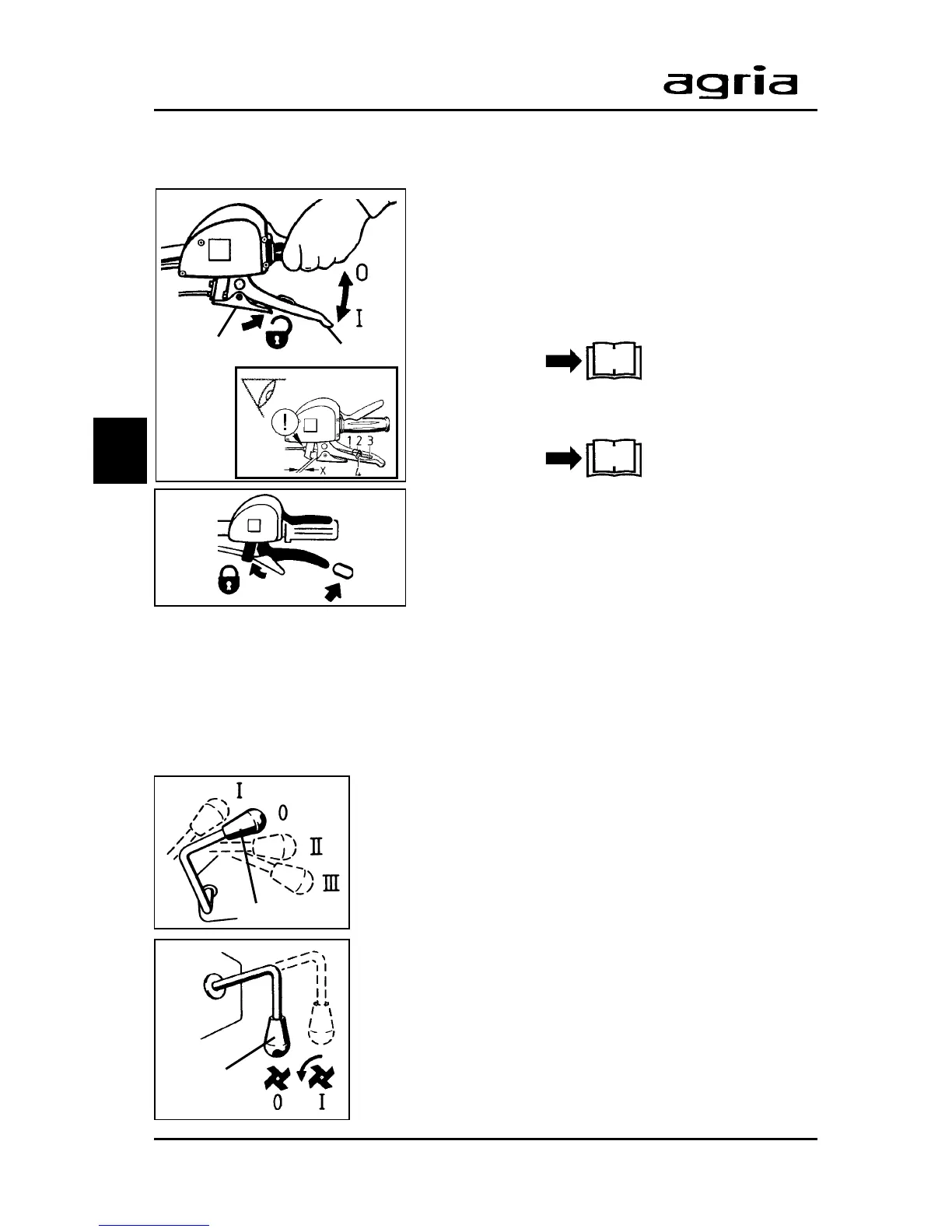

Clutch
The machine is decoupled when you pull the hand clutch lever(C/5) "0".
The pulled hand clutch lever can be locked with
pawl (C/6).
Coupling takes place when the hand clutch lever
is released and the pawl is open ("
I
")
To avoid clutch slipping away during operation, a
clutch play is factory-set on the hand lever
Maintenance
After the first operating hour, the clutch play has
to be checked and, if necessary, re-adjusted
Maintenance
I
Always park the machine with the clutch lever
pulled (“0” – pawl locked in place). Otherwise
clutch problems may result due to distortion of the
V-belt.
Gearbox
The single-wheel power hoe is equipped with a 3-speed mechanical gearbox for
wheel and tilling drive.
I
Only shift with machine decoupled.
Only move levers with your hands.
Speed Ratios
Speed ratios of wheel drive are engaged with gear shift
lever (A/3).
I .................... 1st gear
II................... 2nd gear
III.................. 3rd gear
0 ................... neutral position (idling speed)
A roller chain transmits power to the drive-wheel shaft.
Tilling drive
The tilling drive is engaged/disengaged with shift lever
(A/19). Thus, the travelling drive can be used to change
the site of work while the tilling drive is off.
The PTO at the gear unit and a bevel drive to the tilling
shaft transmit power to the tilling shaft.
C/6
C/5
A/19
3
34
34
A/3
