20 Single-wheel power hoe 2100
3. Devices and Operating Elements
Leaf Deflector
(Item no. 2130 031
for 16–38 cm work width)
For working in row cultivations to deflect
leaves and plant parts.

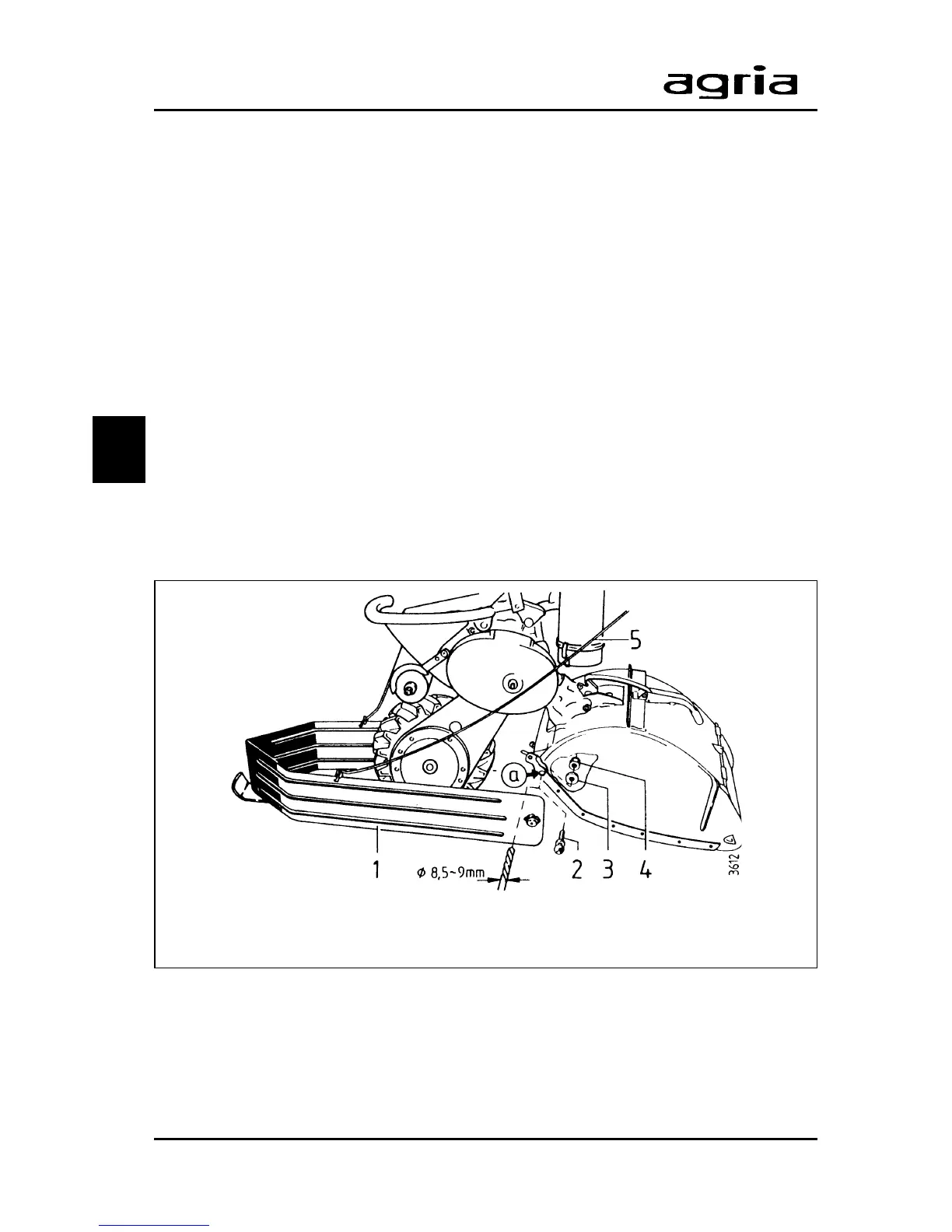

Mounting Leaf Deflector
Use a drill of Ø 8.5–9 mm and the in-
cluded template to drill the holes “a” into
tilling hood.
Push ball pivots (2) into holes (push
outside in) and fasten with washers (3)
and counternuts (4).
Press ball cups of leaf deflector (1),
located on both sides at the rear, onto
ball pivots until these lock into place.
Tie both ends of included synthetic
rope (5) onto leaf deflector and place
bow over the machine and steering han-
dle near the handlebar grips.
Dismounting Leaf Deflector
To dismount leaf deflector, use a
screwdriver (or similar tool) and press
ball cups off the ball pivots.
The ball pivots can remain in place
for re-mounting the leaf deflector.
Operation
For turns, slightly lift the leaf deflector
with the rope (5).
