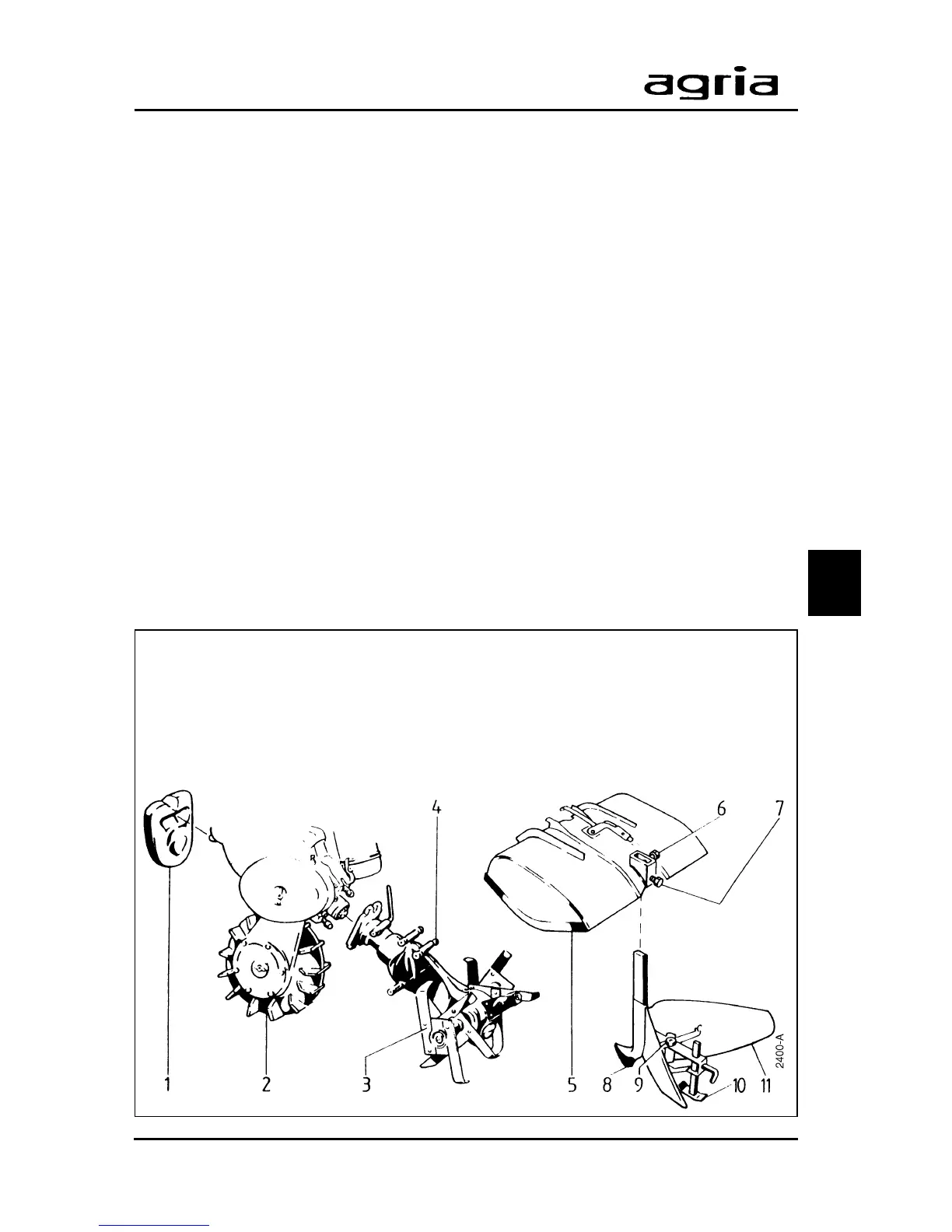

Single-wheel power hoe 2100 27
1 Front weight
2 Strake wheel
3 Tilling tool
4 Hood carriers
5 Special protective hood for ridging
6 Clamping screw for ridger
7 Adjusting screw for slant adjustment
8 Ridger
9 Clamping screw for mouldboard
adjustment
10 Slip heel
11 Mouldboard
4. Commissioning and Operation
Ridging with Ridger
Required Accessories
Tilling tool............. Alternatively 28, 32
and 38 cm
Front weight ........... Item no. 2128 011
Ridger with
protective hood ...... Item no. 2152 011
Mounting Ridger
Remove hood.
Mount special protective hood (5) for
ridging.
Insert stem of ridger (8) into skid
beam pocket of hood and fasten with
hexagonal screw (6).
Pre-adjust slanting of ridger with hex-
agonal screw (6). Ridging depth de-
pends on the slanting angle of the ridger
– the more the ridger slants backwards
the deeper is the working depth.
Mount front weight.
Ridging
Commission single-wheel power hoe
as described in “Tilling”.
After a few metres of cultivation, ad-
just the desired ridging depth. For this
purpose, adjust slanting of the ridger
and the height-adjustable slip-heel (10)
with hexagonal screw (7).
Adjust the desired ridging width by
adjusting the mouldboards with the
clamping screw (9).
4
